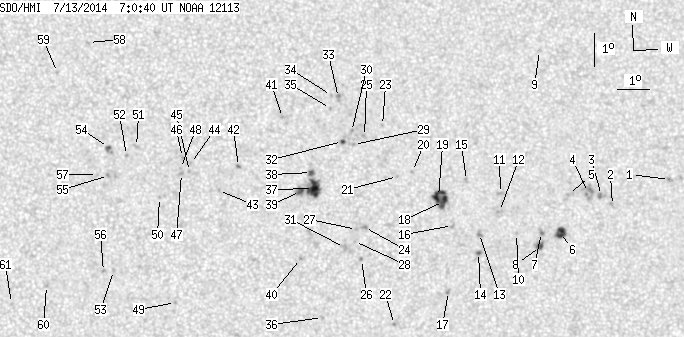

SDO HMI 2014-07-13 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.52 | 177.11 | 22.77 | 88.73 | 7.97 | 163.72 | 5.66 | 301.41 | 0.1382 | -263.5 | -199.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.63 | 0.00 | 1.35 | 8.34 | 172.78 | 14.72 | 286.69 | 0.2636 | -857.0 | -682.4 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 7.58 | 170.95 | 12.89 | 285.57 | 0.2305 | -882.0 | -739.8 | |
| 0.00 | 4.45 | 0.00 | 2.26 | 7.89 | 170.61 | 12.55 | 287.27 | 0.2264 | -958.0 | -861.4 | |
| 0.00 | 12.35 | 0.00 | 6.27 | 7.99 | 170.21 | 12.14 | 288.21 | 0.2203 | -833.0 | -847.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 7.94 | 169.58 | 11.51 | 288.85 | 0.2098 | -1023.0 | -788.7 | |
| 7.18 | 9.36 | 3.63 | 4.73 | 6.78 | 169.29 | 11.23 | 283.74 | 0.2000 | -1153.3 | -781.1 | |
| 0.00 | 3.09 | 0.00 | 1.56 | 6.79 | 168.70 | 10.64 | 284.47 | 0.1901 | -1085.0 | -905.6 | |
| 2.36 | 4.45 | 1.19 | 2.24 | 6.36 | 168.66 | 10.60 | 282.30 | 0.1879 | -1111.9 | -903.0 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 12.36 | 168.82 | 10.76 | 308.31 | 0.2334 | -993.0 | -697.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 6.77 | 167.92 | 9.86 | 285.38 | 0.1771 | -858.0 | -665.3 | |
| 0.00 | 2.54 | 0.00 | 1.28 | 8.00 | 167.45 | 9.39 | 292.85 | 0.1761 | -765.0 | -619.8 | |
| 0.00 | 2.73 | 0.00 | 1.37 | 7.45 | 167.41 | 9.34 | 289.97 | 0.1720 | -806.0 | -710.5 | |
| 0.00 | 3.45 | 0.00 | 1.73 | 6.78 | 166.77 | 8.71 | 287.29 | 0.1581 | -919.0 | -754.9 | |
| 0.55 | 1.73 | 0.27 | 0.87 | 6.21 | 166.73 | 8.66 | 283.77 | 0.1549 | -1153.8 | -972.4 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 8.41 | 166.40 | 8.34 | 297.60 | 0.1626 | -931.0 | -826.2 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 7.04 | 165.94 | 7.87 | 290.59 | 0.1459 | 664.0 | 535.6 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 5.03 | 165.78 | 7.72 | 276.81 | 0.1353 | 1020.0 | 790.2 | |
| 6.45 | 20.26 | 3.23 | 10.14 | 7.77 | 165.67 | 7.61 | 295.95 | 0.1466 | -1115.1 | -831.0 | |
| 8.81 | -18.00 | 4.41 | -18.00 | 7.93 | 165.52 | 7.46 | 297.36 | 0.1454 | -1232.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 8.70 | 164.73 | 6.66 | 304.83 | 0.1404 | -741.0 | -556.3 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 8.55 | 164.26 | 6.20 | 305.86 | 0.1323 | -964.0 | -750.8 | |
| 0.00 | 1.64 | 0.00 | 0.81 | 4.04 | 164.11 | 6.04 | 269.16 | 0.1055 | -1060.0 | -766.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 10.12 | 163.82 | 5.76 | 316.55 | 0.1443 | 770.0 | 551.4 | |
| 0.00 | 2.45 | 0.00 | 1.22 | 7.00 | 163.22 | 5.15 | 299.31 | 0.1027 | -1101.0 | -939.7 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 9.78 | 163.26 | 5.19 | 317.82 | 0.1335 | 700.0 | 585.3 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 6.03 | 163.11 | 5.05 | 290.68 | 0.0940 | 999.0 | 869.2 | |
| 0.00 | 1.64 | 0.00 | 0.81 | 6.94 | 162.97 | 4.91 | 299.99 | 0.0985 | -943.0 | -743.4 | |
| 0.00 | 0.64 | 0.00 | 0.32 | 6.58 | 162.90 | 4.84 | 296.95 | 0.0945 | -795.0 | -686.7 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.54 | 162.91 | 4.85 | 318.49 | 0.1264 | 973.0 | 709.7 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 9.94 | 162.86 | 4.79 | 320.86 | 0.1310 | 913.0 | 797.1 | |
| 0.00 | 3.63 | 0.00 | 1.81 | 6.40 | 162.59 | 4.53 | 296.67 | 0.0883 | -938.0 | -839.5 | |
| 1.18 | 2.18 | 0.59 | 1.09 | 9.63 | 162.57 | 4.51 | 321.02 | 0.1238 | 1098.8 | 929.3 | |
| 0.00 | 3.45 | 0.00 | 1.73 | 10.98 | 162.47 | 4.41 | 327.68 | 0.1417 | 923.0 | 799.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.05 | 162.25 | 4.19 | 329.20 | 0.1407 | 776.0 | 580.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 10.65 | 162.21 | 4.15 | 327.88 | 0.1345 | 709.0 | 468.8 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 4.27 | 161.90 | 3.84 | 271.91 | 0.0671 | -967.0 | -756.1 | |
| 13.26 | 27.25 | 6.60 | 13.56 | 8.20 | 161.66 | 3.59 | 318.78 | 0.0946 | -1177.5 | -790.8 | |
| 1.64 | 3.54 | 0.81 | 1.76 | 8.69 | 161.60 | 3.54 | 322.44 | 0.1005 | -1104.6 | -855.6 | |
| 2.91 | -37.00 | 1.45 | -37.00 | 8.11 | 161.26 | 3.19 | 321.47 | 0.0889 | -1090.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 6.07 | 161.24 | 3.18 | 301.39 | 0.0648 | -985.0 | -765.3 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 10.38 | 160.72 | 2.66 | 337.21 | 0.1183 | -940.0 | -808.6 | |
| 0.00 | 1.82 | 0.00 | 0.90 | 8.89 | 159.35 | 1.29 | 344.96 | 0.0859 | 1075.0 | 844.2 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 8.15 | 158.73 | 0.67 | 350.61 | 0.0711 | 858.0 | 705.3 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 8.98 | 157.87 | -0.19 | 2.26 | 0.0847 | 852.0 | 694.6 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 8.74 | 157.84 | -0.22 | 2.77 | 0.0804 | 855.0 | 638.9 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.16 | 157.62 | -0.44 | 4.96 | 0.0881 | 811.0 | 748.1 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 8.67 | 157.59 | -0.47 | 5.88 | 0.0797 | 908.0 | 807.3 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 8.83 | 157.56 | -0.50 | 6.05 | 0.0824 | 1007.0 | 793.8 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 4.74 | 157.41 | -0.66 | 47.89 | 0.0154 | 925.0 | 671.4 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 7.94 | 156.92 | -1.15 | 16.69 | 0.0694 | 932.0 | 686.0 | |
| 0.00 | 2.82 | 0.00 | 1.40 | 9.50 | 156.20 | -1.86 | 18.95 | 0.0991 | 934.0 | 704.7 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.22 | 155.89 | -2.17 | 22.88 | 0.0965 | 941.0 | 706.1 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 5.71 | 155.51 | -2.55 | 58.33 | 0.0523 | 930.0 | 700.6 | |
| 1.18 | 5.36 | 0.59 | 2.67 | 9.47 | 155.34 | -2.73 | 26.83 | 0.1044 | 1092.9 | 871.6 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 8.61 | 155.34 | -2.72 | 31.08 | 0.0913 | 1081.0 | 961.8 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 5.68 | 155.20 | -2.86 | 61.62 | 0.0567 | 912.0 | 794.5 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 8.64 | 155.00 | -3.06 | 33.95 | 0.0950 | 683.0 | 496.3 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 12.69 | 154.68 | -3.38 | 21.15 | 0.1601 | 847.0 | 671.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.76 | 153.73 | -4.33 | 29.15 | 0.1526 | 885.0 | 635.5 | |
| 0.00 | 2.09 | 0.00 | 1.04 | 5.25 | 153.46 | -4.61 | 76.35 | 0.0827 | 961.0 | 667.0 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 4.70 | 152.38 | -5.68 | 84.28 | 0.0996 | 762.0 | 615.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
