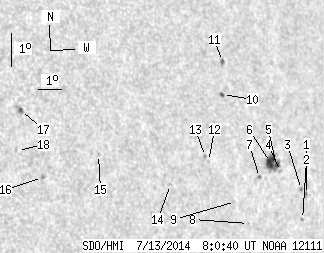

SDO HMI 2014-07-13 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.90 | 39.42 | 11.07 | 28.72 | 6.44 | 204.68 | 47.17 | 275.02 | 0.7325 | -296.5 | -63.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.69 | 5.04 | 208.09 | 50.58 | 273.11 | 0.7729 | -670.0 | -536.5 | |
| 0.00 | 1.00 | 0.00 | 0.77 | 4.29 | 207.82 | 50.31 | 272.13 | 0.7701 | 606.0 | 465.7 | |
| 0.00 | 1.45 | 0.00 | 1.12 | 5.21 | 207.87 | 50.35 | 273.32 | 0.7703 | -654.0 | -545.2 | |
| 0.00 | 1.09 | 0.00 | 0.83 | 5.81 | 206.93 | 49.42 | 274.10 | 0.7598 | -409.0 | -339.5 | |
| 2.63 | 16.62 | 1.99 | 12.53 | 6.00 | 206.77 | 49.25 | 274.35 | 0.7579 | -579.0 | -491.2 | |
| 9.45 | -5.00 | 7.11 | -5.00 | 6.11 | 206.50 | 48.98 | 274.49 | 0.7548 | -803.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.15 | 5.68 | 205.93 | 48.42 | 273.91 | 0.7484 | -670.0 | -609.1 | |
| 0.00 | 0.64 | 0.00 | 0.47 | 4.31 | 205.29 | 47.78 | 272.05 | 0.7412 | 435.0 | 382.7 | |
| 0.00 | 0.45 | 0.00 | 0.33 | 5.01 | 204.76 | 47.25 | 272.99 | 0.7348 | -507.0 | -495.6 | |
| 0.91 | 2.36 | 0.66 | 1.71 | 8.30 | 204.60 | 47.08 | 277.48 | 0.7332 | 454.5 | 309.4 | |
| 1.00 | 2.54 | 0.73 | 1.85 | 9.30 | 204.77 | 47.25 | 278.84 | 0.7357 | 612.0 | 408.6 | |
| 0.00 | 0.73 | 0.00 | 0.52 | 6.29 | 203.69 | 46.17 | 274.74 | 0.7219 | -402.0 | -336.6 | |
| 0.00 | 1.09 | 0.00 | 0.78 | 6.45 | 203.58 | 46.06 | 274.96 | 0.7205 | -668.0 | -530.0 | |
| 0.00 | 0.82 | 0.00 | 0.57 | 5.68 | 201.96 | 44.45 | 273.88 | 0.7007 | 553.0 | 497.3 | |
| 0.00 | 0.73 | 0.00 | 0.48 | 6.74 | 199.04 | 41.53 | 275.49 | 0.6637 | 499.0 | 495.4 | |
| 0.00 | 1.54 | 0.00 | 0.99 | 6.15 | 196.72 | 39.21 | 274.64 | 0.6328 | 836.0 | 723.5 | |
| 0.91 | 4.09 | 0.58 | 2.59 | 8.23 | 196.07 | 38.55 | 278.00 | 0.6251 | 835.6 | 703.6 | |
| 0.00 | 0.55 | 0.00 | 0.34 | 7.02 | 195.82 | 38.30 | 276.07 | 0.6208 | -453.0 | -452.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
