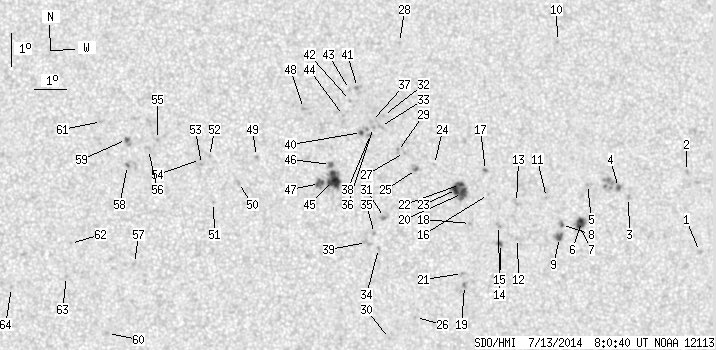

SDO HMI 2014-07-13 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.31 | 189.19 | 24.72 | 94.88 | 7.93 | 164.06 | 6.54 | 274.08 | 0.1464 | -297.5 | -222.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 1.26 | 5.88 | 173.07 | 15.56 | 277.01 | 0.2700 | -781.0 | -521.6 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 8.33 | 172.74 | 15.23 | 286.17 | 0.2718 | -850.0 | -711.2 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 7.57 | 170.87 | 13.36 | 285.05 | 0.2382 | -1013.0 | -759.7 | |
| 1.27 | 15.71 | 0.65 | 8.00 | 7.88 | 170.57 | 13.05 | 286.65 | 0.2346 | -1037.3 | -846.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 7.99 | 169.60 | 12.08 | 288.30 | 0.2193 | -1078.0 | -891.3 | |
| 3.72 | 9.63 | 1.89 | 4.88 | 6.86 | 169.37 | 11.86 | 283.46 | 0.2107 | -1210.6 | -820.8 | |
| 2.27 | -6.00 | 1.15 | -6.00 | 6.74 | 169.31 | 11.79 | 282.96 | 0.2092 | -1109.8 | 999999 | |
| 0.64 | 2.73 | 0.32 | 1.38 | 6.78 | 168.75 | 11.23 | 283.73 | 0.2000 | -1034.0 | -855.0 | |
| 2.63 | 5.72 | 1.33 | 2.89 | 6.39 | 168.67 | 11.16 | 281.85 | 0.1974 | -1104.2 | -906.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 12.39 | 168.82 | 11.30 | 307.07 | 0.2409 | -829.0 | -678.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 7.61 | 168.30 | 10.78 | 288.39 | 0.1963 | -938.0 | -677.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 6.37 | 167.36 | 9.85 | 283.19 | 0.1754 | -865.0 | -668.1 | |
| 0.00 | 4.18 | 0.00 | 2.10 | 7.47 | 167.36 | 9.84 | 289.19 | 0.1803 | -760.0 | -695.6 | |
| 1.18 | 2.63 | 0.59 | 1.32 | 6.23 | 166.83 | 9.32 | 283.02 | 0.1659 | -1192.1 | -949.7 | |
| 0.00 | 2.63 | 0.00 | 1.32 | 6.78 | 166.78 | 9.27 | 286.31 | 0.1673 | -926.0 | -784.2 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 7.73 | 166.49 | 8.97 | 292.26 | 0.1678 | -700.0 | -485.5 | |
| 0.45 | 1.45 | 0.23 | 0.73 | 8.46 | 166.41 | 8.90 | 296.42 | 0.1716 | -1062.8 | -858.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 6.85 | 165.91 | 8.40 | 288.27 | 0.1534 | 691.0 | 471.5 | |
| 0.00 | 2.73 | 0.00 | 1.36 | 4.96 | 165.70 | 8.18 | 276.00 | 0.1432 | 1091.0 | 857.5 | |
| 6.45 | 21.89 | 3.23 | 10.98 | 7.77 | 165.68 | 8.17 | 294.39 | 0.1552 | -1137.9 | -792.5 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 5.33 | 165.64 | 8.12 | 278.60 | 0.1429 | 978.0 | 720.6 | |
| 2.45 | -20.00 | 1.23 | -20.00 | 8.04 | 165.63 | 8.11 | 296.15 | 0.1563 | -1094.3 | 999999 | |
| 6.09 | -20.00 | 3.05 | -20.00 | 7.89 | 165.50 | 7.98 | 295.61 | 0.1533 | -1292.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 8.66 | 164.83 | 7.32 | 302.19 | 0.1494 | -642.0 | -450.8 | |
| 0.73 | 3.45 | 0.36 | 1.73 | 8.52 | 164.27 | 6.75 | 303.37 | 0.1399 | -1038.2 | -857.3 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 4.00 | 164.17 | 6.66 | 268.96 | 0.1162 | -945.0 | -738.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.04 | 163.91 | 6.39 | 307.92 | 0.1400 | -847.0 | -593.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.42 | 163.83 | 6.31 | 323.33 | 0.1806 | 846.0 | 651.8 | |
| 0.00 | 2.36 | 0.00 | 1.18 | 9.07 | 163.69 | 6.17 | 309.06 | 0.1374 | -621.0 | -639.5 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 3.37 | 163.37 | 5.86 | 262.59 | 0.1032 | -842.0 | -672.9 | |
| 0.00 | 3.36 | 0.00 | 1.68 | 7.06 | 163.26 | 5.74 | 297.24 | 0.1122 | -1144.0 | -906.7 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 10.18 | 163.28 | 5.76 | 316.84 | 0.1451 | 886.0 | 682.9 | |
| 0.00 | 2.54 | 0.00 | 1.27 | 9.84 | 163.18 | 5.66 | 315.67 | 0.1397 | 741.0 | 575.5 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 6.12 | 163.06 | 5.54 | 289.82 | 0.1026 | 871.0 | 770.4 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 6.57 | 162.94 | 5.43 | 294.40 | 0.1036 | -907.0 | -707.4 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.81 | 162.96 | 5.44 | 316.64 | 0.1368 | 789.0 | 685.6 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 10.00 | 162.90 | 5.38 | 317.87 | 0.1384 | 917.0 | 729.9 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 9.60 | 162.86 | 5.35 | 316.04 | 0.1329 | 964.0 | 728.2 | |
| 0.00 | 4.72 | 0.00 | 2.35 | 6.30 | 162.69 | 5.18 | 292.87 | 0.0978 | -842.0 | -671.3 | |
| 1.27 | 4.72 | 0.64 | 2.36 | 9.66 | 162.58 | 5.07 | 317.88 | 0.1304 | 1145.1 | 888.4 | |
| 0.00 | 2.91 | 0.00 | 1.46 | 11.04 | 162.48 | 4.97 | 324.75 | 0.1479 | 1115.0 | 859.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 10.65 | 162.26 | 4.74 | 324.36 | 0.1401 | 744.0 | 487.1 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 10.98 | 162.23 | 4.72 | 325.89 | 0.1446 | 731.0 | 504.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 10.19 | 162.03 | 4.52 | 323.66 | 0.1314 | -831.0 | -603.5 | |
| 13.63 | 30.16 | 6.79 | 15.02 | 8.20 | 161.70 | 4.18 | 314.46 | 0.1016 | -1186.7 | -689.2 | |
| 1.27 | 3.54 | 0.63 | 1.77 | 8.69 | 161.61 | 4.09 | 318.34 | 0.1067 | -1100.4 | -831.0 | |
| 3.63 | -45.00 | 1.81 | -45.00 | 8.11 | 161.26 | 3.75 | 316.93 | 0.0952 | -1029.8 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 10.41 | 160.79 | 3.28 | 332.73 | 0.1233 | -1120.0 | -885.3 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 8.95 | 159.33 | 1.81 | 339.52 | 0.0897 | 1046.0 | 749.6 | |
| 0.00 | 2.45 | 0.00 | 1.22 | 8.15 | 158.77 | 1.25 | 342.77 | 0.0734 | 860.0 | 613.3 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 7.54 | 158.00 | 0.48 | 351.98 | 0.0600 | -817.0 | -606.1 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 8.95 | 157.88 | 0.36 | 355.73 | 0.0843 | 934.0 | 733.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 8.71 | 157.63 | 0.11 | 358.57 | 0.0798 | 916.0 | 807.0 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 8.86 | 157.60 | 0.08 | 358.99 | 0.0825 | 1055.0 | 809.6 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.47 | 156.27 | -1.24 | 13.00 | 0.0956 | 1081.0 | 810.6 | |
| 0.00 | 3.09 | 0.00 | 1.54 | 9.17 | 155.99 | -1.52 | 16.68 | 0.0917 | 763.0 | 749.0 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 5.69 | 155.57 | -1.94 | 51.51 | 0.0433 | 858.0 | 625.0 | |
| 0.45 | 1.64 | 0.23 | 0.81 | 8.68 | 155.35 | -2.17 | 25.34 | 0.0877 | 1020.0 | 838.9 | |
| 1.18 | 5.27 | 0.59 | 2.62 | 9.47 | 155.31 | -2.20 | 22.22 | 0.1006 | 1075.8 | 837.3 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 3.55 | 154.75 | -2.76 | 102.20 | 0.0495 | 867.0 | 783.1 | |
| 0.00 | 2.09 | 0.00 | 1.04 | 10.02 | 154.54 | -2.98 | 26.57 | 0.1149 | 859.0 | 622.3 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 6.29 | 153.61 | -3.91 | 61.04 | 0.0778 | 837.0 | 682.3 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 5.28 | 153.49 | -4.02 | 74.08 | 0.0730 | 912.0 | 769.2 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 4.94 | 151.80 | -5.71 | 81.89 | 0.1006 | 871.0 | 778.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
