SDO HMI 2014-07-13 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.59 | 126.52 | 162.67 | 384.46 | -6.76 | 236.97 | 80.00 | 262.44 | 0.9870 | -152.9 | -7.4 | |
|
previous
or next observation for the same group /

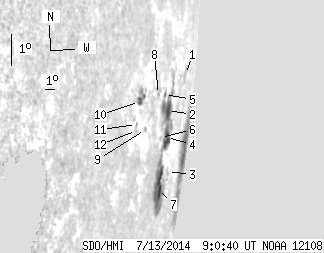

back to the solar disc SDO HMI 2014-07-13 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.81 | 0.00 | 22.32 | -4.81 | 240.46 | 83.49 | 264.70 | 0.9948 | 100.0 | 135.5 | |
| 14.53 | 102.73 | 43.76 | 317.57 | -5.67 | 237.02 | 80.06 | 263.54 | 0.9872 | 368.8 | -0.7 | |
| 0.00 | 2.27 | 0.00 | 8.35 | -7.66 | 238.49 | 81.52 | 261.67 | 0.9913 | 220.0 | 298.3 | |
| 11.35 | -2.00 | 36.04 | -2.00 | -6.53 | 237.38 | 80.41 | 262.71 | 0.9883 | -312.1 | 999999 | |
| 0.55 | -2.00 | 1.52 | -2.00 | -5.12 | 236.21 | 79.24 | 264.02 | 0.9846 | 225.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 2.56 | -6.45 | 236.25 | 79.29 | 262.68 | 0.9852 | -32.0 | -62.9 | |
| 24.53 | -2.00 | 75.90 | -2.00 | -8.09 | 237.07 | 80.10 | 261.11 | 0.9879 | -370.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 3.45 | -5.05 | 235.21 | 78.24 | 264.00 | 0.9815 | 204.0 | 270.1 | |
| 0.00 | 1.00 | 0.00 | 2.26 | -6.02 | 233.75 | 76.79 | 262.87 | 0.9767 | 21.0 | 22.6 | |
| 2.63 | 10.26 | 5.45 | 21.40 | -5.07 | 232.59 | 75.62 | 263.72 | 0.9718 | -539.6 | -366.6 | |
| 0.00 | 1.36 | 0.00 | 2.80 | -5.78 | 232.47 | 75.51 | 262.99 | 0.9716 | -395.0 | -383.7 | |
| 0.00 | 1.82 | 0.00 | 3.75 | -5.97 | 232.55 | 75.58 | 262.81 | 0.9720 | -209.0 | -247.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
