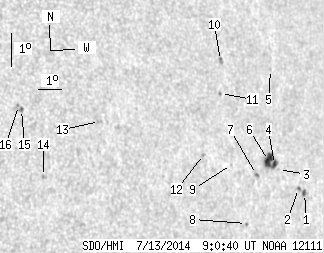

SDO HMI 2014-07-13 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.81 | 36.34 | 9.80 | 26.77 | 6.52 | 204.73 | 47.77 | 275.12 | 0.7395 | -236.5 | 22.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 4.27 | 1.07 | 3.35 | 5.04 | 208.12 | 51.16 | 273.13 | 0.7792 | -495.7 | -486.6 | |
| 0.55 | -1.00 | 0.43 | -1.00 | 5.21 | 207.85 | 50.88 | 273.34 | 0.7762 | -604.3 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.21 | 5.84 | 206.96 | 49.99 | 274.14 | 0.7662 | -314.0 | -275.7 | |
| 2.73 | 14.81 | 2.08 | 11.29 | 6.00 | 206.79 | 49.82 | 274.35 | 0.7643 | -591.9 | -578.2 | |
| 0.00 | 1.09 | 0.00 | 0.84 | 8.90 | 207.05 | 50.09 | 278.14 | 0.7677 | -392.0 | -295.8 | |
| 7.81 | -4.00 | 5.95 | -4.00 | 6.14 | 206.52 | 49.55 | 274.53 | 0.7613 | -784.5 | 999999 | |
| 0.36 | 1.82 | 0.27 | 1.37 | 5.75 | 205.90 | 48.94 | 274.00 | 0.7543 | -666.2 | -526.4 | |
| 0.00 | 1.27 | 0.00 | 0.95 | 4.28 | 205.29 | 48.32 | 272.03 | 0.7475 | 458.0 | 356.2 | |
| 0.00 | 0.55 | 0.00 | 0.40 | 6.11 | 204.79 | 47.82 | 274.49 | 0.7414 | -644.0 | -530.7 | |
| 0.00 | 2.27 | 0.00 | 1.67 | 9.30 | 204.77 | 47.80 | 278.81 | 0.7420 | 631.0 | 513.6 | |
| 0.00 | 1.36 | 0.00 | 1.00 | 8.30 | 204.59 | 47.62 | 277.46 | 0.7395 | 652.0 | 429.9 | |
| 0.00 | 1.27 | 0.00 | 0.91 | 6.49 | 203.56 | 46.60 | 275.00 | 0.7269 | -746.0 | -540.1 | |
| 0.00 | 2.45 | 0.00 | 1.64 | 7.72 | 199.22 | 42.26 | 276.92 | 0.6735 | 598.0 | 564.7 | |
| 0.00 | 2.09 | 0.00 | 1.35 | 6.15 | 196.77 | 39.80 | 274.63 | 0.6408 | 816.0 | 681.4 | |
| 0.00 | 2.09 | 0.00 | 1.33 | 8.23 | 196.11 | 39.14 | 277.95 | 0.6330 | 885.0 | 741.9 | |
| 0.00 | 0.73 | 0.00 | 0.46 | 8.36 | 196.00 | 39.04 | 278.16 | 0.6318 | 803.0 | 653.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
