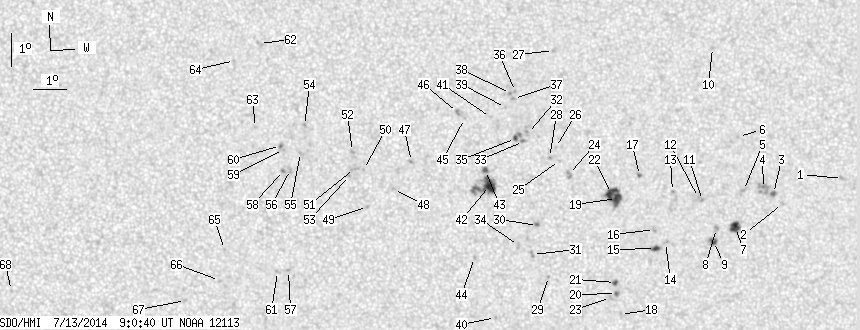

SDO HMI 2014-07-13 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.59 | 189.57 | 23.41 | 95.17 | 8.03 | 163.60 | 6.63 | 267.57 | 0.1506 | -195.3 | -160.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.82 | 0.00 | 1.45 | 8.29 | 172.83 | 15.86 | 285.46 | 0.2819 | -757.0 | -583.1 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 7.56 | 170.89 | 13.93 | 284.47 | 0.2475 | -877.0 | -699.3 | |
| 1.09 | 2.63 | 0.56 | 1.35 | 7.87 | 170.62 | 13.65 | 285.97 | 0.2443 | -1072.2 | -878.6 | |
| 0.00 | 9.72 | 0.00 | 4.96 | 8.03 | 170.31 | 13.34 | 286.93 | 0.2399 | -941.0 | -873.9 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 7.98 | 169.67 | 12.71 | 287.46 | 0.2294 | -1056.0 | -767.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 9.63 | 169.58 | 12.61 | 294.31 | 0.2372 | -652.0 | -633.9 | |
| 6.81 | 9.17 | 3.46 | 4.66 | 6.86 | 169.39 | 12.42 | 282.88 | 0.2201 | -1132.0 | -759.2 | |
| 0.00 | 3.00 | 0.00 | 1.52 | 6.84 | 168.79 | 11.82 | 283.36 | 0.2101 | -1025.0 | -873.6 | |
| 2.54 | 4.81 | 1.29 | 2.44 | 6.44 | 168.69 | 11.72 | 281.59 | 0.2070 | -1120.0 | -924.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 12.38 | 168.87 | 11.90 | 305.67 | 0.2491 | -789.0 | -546.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 7.70 | 168.38 | 11.41 | 287.88 | 0.2069 | -883.0 | -711.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 7.79 | 168.25 | 11.29 | 288.49 | 0.2054 | -881.0 | -758.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 7.99 | 167.44 | 10.48 | 290.70 | 0.1934 | -735.0 | -635.7 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 6.43 | 167.19 | 10.22 | 283.06 | 0.1818 | -739.0 | -655.6 | |
| 2.36 | 4.45 | 1.19 | 2.24 | 6.25 | 166.87 | 9.91 | 282.44 | 0.1759 | -1158.3 | -866.9 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 6.83 | 166.85 | 9.89 | 285.67 | 0.1779 | -861.0 | -762.3 | |
| 0.55 | 2.27 | 0.27 | 1.14 | 8.49 | 166.43 | 9.46 | 295.22 | 0.1805 | -954.0 | -709.0 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 4.26 | 165.75 | 8.79 | 271.00 | 0.1530 | 519.0 | 461.3 | |
| 7.54 | 22.07 | 3.79 | 11.08 | 7.79 | 165.69 | 8.72 | 293.18 | 0.1642 | -1117.3 | -727.7 | |
| 0.64 | 2.09 | 0.32 | 1.05 | 4.90 | 165.64 | 8.67 | 275.26 | 0.1515 | 1080.4 | 890.0 | |
| 1.18 | 2.45 | 0.59 | 1.23 | 5.23 | 165.61 | 8.65 | 277.49 | 0.1517 | 1049.5 | 810.6 | |
| 8.54 | -19.00 | 4.29 | -19.00 | 7.95 | 165.54 | 8.57 | 294.41 | 0.1629 | -1194.3 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 4.78 | 165.45 | 8.48 | 274.55 | 0.1482 | 854.0 | 765.5 | |
| 0.00 | 4.54 | 0.00 | 2.27 | 8.54 | 164.22 | 7.25 | 301.72 | 0.1474 | -906.0 | -830.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 8.98 | 163.94 | 6.98 | 305.18 | 0.1475 | -776.0 | -500.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.37 | 163.83 | 6.86 | 307.82 | 0.1499 | -707.0 | -499.1 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 12.35 | 163.84 | 6.87 | 320.76 | 0.1856 | 891.0 | 607.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.07 | 163.64 | 6.67 | 306.93 | 0.1441 | -969.0 | -703.0 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 5.44 | 163.55 | 6.58 | 281.35 | 0.1169 | 864.0 | 637.9 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.00 | 163.23 | 6.26 | 294.81 | 0.1198 | -1078.0 | -913.0 | |
| 0.00 | 3.09 | 0.00 | 1.54 | 6.11 | 163.06 | 6.10 | 288.15 | 0.1116 | 782.0 | 576.9 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 9.81 | 162.97 | 6.00 | 313.86 | 0.1435 | 690.0 | 711.8 | |
| 0.00 | 2.27 | 0.00 | 1.14 | 9.57 | 162.84 | 5.87 | 313.20 | 0.1390 | 841.0 | 720.2 | |
| 0.00 | 2.82 | 0.00 | 1.40 | 6.39 | 162.63 | 5.67 | 291.88 | 0.1062 | -834.0 | -746.0 | |
| 1.18 | 5.18 | 0.59 | 2.59 | 9.66 | 162.59 | 5.62 | 314.91 | 0.1370 | 1119.9 | 925.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.10 | 162.62 | 5.65 | 321.46 | 0.1558 | 916.0 | 723.5 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 10.89 | 162.55 | 5.59 | 320.90 | 0.1522 | 929.0 | 678.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 11.04 | 162.46 | 5.49 | 321.99 | 0.1533 | 1102.0 | 917.7 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 10.61 | 162.30 | 5.33 | 321.01 | 0.1458 | 660.0 | 524.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 4.20 | 161.91 | 4.94 | 270.76 | 0.0863 | -944.0 | -758.5 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 10.31 | 161.83 | 4.86 | 322.22 | 0.1366 | -638.0 | -436.8 | |
| 12.26 | 29.43 | 6.11 | 14.66 | 8.23 | 161.76 | 4.80 | 310.76 | 0.1098 | -1192.9 | -752.8 | |
| 1.54 | 3.18 | 0.77 | 1.59 | 8.69 | 161.65 | 4.68 | 314.53 | 0.1136 | -1041.4 | -813.3 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 6.04 | 161.28 | 4.31 | 293.86 | 0.0821 | -925.0 | -702.8 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 10.28 | 161.02 | 4.05 | 326.99 | 0.1282 | -818.0 | -636.0 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 10.47 | 160.80 | 3.84 | 329.16 | 0.1289 | -1030.0 | -897.4 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 8.98 | 159.36 | 2.40 | 333.86 | 0.0942 | 901.0 | 730.7 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 8.12 | 158.80 | 1.84 | 335.41 | 0.0765 | 756.0 | 664.5 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 7.61 | 158.00 | 1.03 | 343.48 | 0.0631 | -814.0 | -535.2 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 8.74 | 157.88 | 0.91 | 348.84 | 0.0818 | 766.0 | 613.2 | |
| 0.00 | 3.09 | 0.00 | 1.54 | 8.77 | 157.60 | 0.64 | 352.23 | 0.0816 | 914.0 | 798.6 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.29 | 157.54 | 0.58 | 353.67 | 0.0905 | 822.0 | 784.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 8.55 | 157.45 | 0.48 | 353.82 | 0.0775 | 888.0 | 691.1 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 10.09 | 156.06 | -0.91 | 8.57 | 0.1050 | 878.0 | 724.5 | |
| 0.00 | 0.55 | 0.00 | 0.27 | 9.26 | 155.94 | -1.03 | 11.27 | 0.0912 | 899.0 | 851.5 | |
| 0.00 | 3.09 | 0.00 | 1.54 | 8.74 | 155.63 | -1.34 | 16.08 | 0.0836 | 1033.0 | 722.4 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 5.66 | 155.57 | -1.39 | 42.64 | 0.0359 | 919.0 | 689.6 | |
| 0.00 | 2.00 | 0.00 | 0.99 | 8.71 | 155.41 | -1.55 | 18.63 | 0.0842 | 1123.0 | 876.7 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.35 | 155.41 | -1.55 | 16.46 | 0.0949 | 961.0 | 768.6 | |
| 0.36 | 2.00 | 0.18 | 0.99 | 9.47 | 155.32 | -1.65 | 17.00 | 0.0974 | 1136.8 | 935.3 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 5.63 | 155.24 | -1.73 | 49.40 | 0.0397 | 925.0 | 698.2 | |
| 0.00 | 3.27 | 0.00 | 1.64 | 12.60 | 154.65 | -2.32 | 15.03 | 0.1529 | 866.0 | 664.8 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 10.02 | 154.54 | -2.42 | 22.14 | 0.1110 | 890.0 | 719.8 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 12.08 | 153.87 | -3.09 | 20.93 | 0.1484 | 769.0 | 565.8 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 6.29 | 153.61 | -3.36 | 57.23 | 0.0695 | 856.0 | 723.4 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 5.35 | 153.46 | -3.51 | 70.98 | 0.0647 | 730.0 | 567.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 4.74 | 152.42 | -4.55 | 82.51 | 0.0800 | 894.0 | 502.4 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 5.00 | 147.05 | -9.91 | 84.73 | 0.1730 | 847.0 | 685.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
