SDO HMI 2014-07-13 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.63 | 168.96 | 5.31 | 93.53 | -20.22 | 147.47 | -9.50 | 159.89 | 0.4459 | 36.1 | 117.2 | |
|
previous
or next observation for the same group /

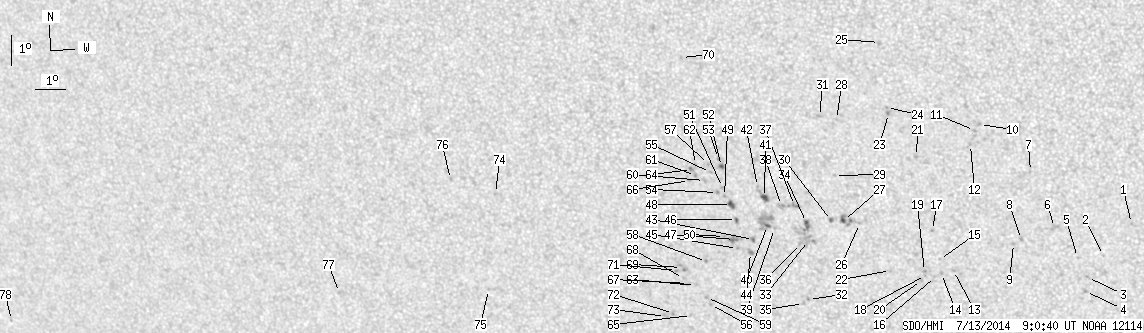

back to the solar disc SDO HMI 2014-07-13 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.64 | -20.22 | 158.54 | 1.58 | 183.58 | 0.4152 | 668.0 | 527.8 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -21.29 | 157.64 | 0.67 | 181.45 | 0.4316 | 584.0 | 513.9 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -22.04 | 157.11 | 0.15 | 180.31 | 0.4432 | 700.0 | 585.0 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -22.52 | 157.05 | 0.08 | 180.16 | 0.4507 | 832.0 | 640.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -21.36 | 156.79 | -0.18 | 179.61 | 0.4325 | 607.0 | 437.9 | |
| 0.00 | 4.54 | 0.00 | 2.47 | -20.35 | 156.04 | -0.93 | 177.91 | 0.4167 | 672.0 | 590.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -18.49 | 155.28 | -1.69 | 175.86 | 0.3876 | 187.0 | 200.0 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -20.75 | 154.96 | -2.01 | 175.56 | 0.4241 | 760.0 | 678.1 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -20.89 | 154.70 | -2.27 | 175.01 | 0.4266 | 730.0 | 506.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -16.95 | 153.67 | -3.30 | 171.31 | 0.3656 | 856.0 | 677.1 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -17.14 | 153.51 | -3.46 | 170.98 | 0.3692 | 1041.0 | 799.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -17.60 | 153.37 | -3.60 | 170.83 | 0.3769 | 812.0 | 686.1 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.81 | 152.71 | -4.26 | 171.05 | 0.4448 | 668.0 | 548.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.91 | 152.31 | -4.66 | 170.27 | 0.4474 | 838.0 | 643.1 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -21.44 | 152.26 | -4.71 | 169.97 | 0.4402 | 685.0 | 436.2 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -22.01 | 152.11 | -4.86 | 169.90 | 0.4495 | 701.0 | 603.6 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -20.46 | 152.06 | -4.90 | 169.11 | 0.4257 | 712.0 | 644.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -21.98 | 151.78 | -5.19 | 169.22 | 0.4500 | 638.0 | 546.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.85 | 151.75 | -5.21 | 169.10 | 0.4480 | 887.0 | 697.7 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -22.15 | 151.64 | -5.33 | 169.02 | 0.4530 | 500.0 | 460.0 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -18.00 | 151.63 | -5.34 | 166.78 | 0.3888 | 763.0 | 676.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.82 | 150.63 | -6.34 | 166.82 | 0.4512 | 705.0 | 544.0 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -16.60 | 150.77 | -6.19 | 163.72 | 0.3703 | 980.0 | 870.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -16.41 | 150.72 | -6.25 | 163.42 | 0.3675 | 1019.0 | 803.5 | |
| 0.00 | 2.18 | 0.00 | 1.15 | -14.30 | 150.56 | -6.41 | 161.12 | 0.3356 | 863.0 | 623.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -20.24 | 149.69 | -7.28 | 163.92 | 0.4311 | 669.0 | 426.4 | |
| 1.45 | 8.27 | 0.80 | 4.54 | -20.15 | 149.17 | -7.80 | 162.77 | 0.4320 | 1005.9 | 776.4 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -16.81 | 149.10 | -7.87 | 159.85 | 0.3820 | 638.0 | 515.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -18.65 | 148.95 | -8.02 | 161.14 | 0.4106 | 679.0 | 465.6 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -20.15 | 148.77 | -8.19 | 161.96 | 0.4339 | 816.0 | 675.2 | |
| 0.00 | 1.91 | 0.00 | 1.02 | -16.72 | 148.56 | -8.41 | 158.49 | 0.3837 | 747.0 | 581.3 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.83 | 147.85 | -9.12 | 162.12 | 0.4778 | 759.0 | 583.1 | |
| 0.00 | 8.63 | 0.00 | 4.78 | -20.83 | 147.98 | -8.99 | 160.89 | 0.4479 | 281.0 | 243.8 | |
| 1.00 | 9.54 | 0.55 | 5.26 | -20.23 | 147.95 | -9.02 | 160.35 | 0.4392 | 962.3 | 570.7 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -22.97 | 147.67 | -9.30 | 161.90 | 0.4807 | 614.0 | 523.7 | |
| 0.00 | 2.18 | 0.00 | 1.21 | -20.93 | 147.71 | -9.26 | 160.44 | 0.4509 | -166.0 | -136.9 | |
| 0.00 | 5.09 | 0.00 | 2.79 | -19.66 | 147.59 | -9.38 | 159.15 | 0.4329 | 968.0 | 803.7 | |
| 0.00 | 4.00 | 0.00 | 2.20 | -19.67 | 147.16 | -9.81 | 158.29 | 0.4354 | 803.0 | 655.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -20.44 | 146.88 | -10.09 | 158.43 | 0.4482 | 778.0 | 593.4 | |
| 1.00 | 17.80 | 0.55 | 9.85 | -20.34 | 146.66 | -10.31 | 157.91 | 0.4481 | 638.0 | 281.7 | |
| 2.54 | 6.72 | 1.40 | 3.69 | -19.41 | 146.62 | -10.35 | 156.97 | 0.4349 | 910.3 | 624.2 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -19.04 | 146.41 | -10.55 | 156.21 | 0.4310 | 661.0 | 545.7 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -20.82 | 146.16 | -10.81 | 157.39 | 0.4579 | -809.0 | -657.6 | |
| 0.00 | 3.36 | 0.00 | 1.88 | -21.26 | 146.02 | -10.94 | 157.54 | 0.4649 | -796.0 | -652.9 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -21.13 | 145.60 | -11.37 | 156.65 | 0.4656 | -908.0 | -740.7 | |
| 0.64 | 2.09 | 0.35 | 1.16 | -20.15 | 145.64 | -11.32 | 155.81 | 0.4517 | -705.9 | -594.2 | |
| 0.00 | 6.54 | 0.00 | 3.65 | -20.83 | 145.52 | -11.44 | 156.23 | 0.4619 | -964.0 | -818.6 | |
| 2.27 | 4.00 | 1.26 | 2.21 | -19.65 | 145.51 | -11.45 | 155.07 | 0.4455 | -917.1 | -709.9 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -19.39 | 145.30 | -11.66 | 154.40 | 0.4432 | -816.0 | -692.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -20.73 | 145.20 | -11.77 | 155.54 | 0.4626 | -879.0 | -681.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.09 | 145.26 | -11.71 | 154.01 | 0.4393 | -774.0 | -666.8 | |
| 0.73 | 2.00 | 0.40 | 1.10 | -18.40 | 145.28 | -11.69 | 153.29 | 0.4295 | -978.9 | -829.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -18.13 | 145.20 | -11.77 | 152.84 | 0.4264 | -966.0 | -808.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -19.26 | 145.08 | -11.89 | 153.85 | 0.4429 | -844.0 | -725.6 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -18.60 | 144.90 | -12.07 | 152.78 | 0.4350 | -730.0 | -601.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -23.05 | 144.53 | -12.44 | 156.48 | 0.4988 | -585.0 | -537.2 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -18.34 | 144.85 | -12.11 | 152.40 | 0.4317 | -914.0 | -763.4 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -21.58 | 144.53 | -12.44 | 155.15 | 0.4787 | -883.0 | -700.9 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -22.81 | 144.41 | -12.55 | 156.08 | 0.4962 | -704.0 | -651.1 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -18.87 | 144.68 | -12.28 | 152.67 | 0.4403 | -871.0 | -581.5 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -18.71 | 144.40 | -12.57 | 151.95 | 0.4402 | -962.0 | -659.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -18.34 | 144.43 | -12.54 | 151.59 | 0.4350 | -735.0 | -581.9 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -22.41 | 144.08 | -12.89 | 155.16 | 0.4928 | -681.0 | -645.7 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -18.51 | 144.28 | -12.69 | 151.51 | 0.4383 | -947.0 | -721.6 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -23.44 | 143.84 | -13.13 | 155.70 | 0.5083 | -677.0 | -526.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -18.88 | 144.19 | -12.78 | 151.75 | 0.4440 | -680.0 | -461.7 | |
| 0.00 | 2.09 | 0.00 | 1.19 | -22.34 | 143.85 | -13.12 | 154.71 | 0.4934 | -598.0 | -508.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.17 | 143.70 | -13.27 | 154.30 | 0.4922 | -1015.0 | -815.7 | |
| 0.00 | 2.18 | 0.00 | 1.24 | -21.80 | 143.66 | -13.30 | 153.89 | 0.4873 | -511.0 | -789.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -14.86 | 144.21 | -12.76 | 146.62 | 0.3897 | 823.0 | 701.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -21.91 | 143.48 | -13.48 | 153.69 | 0.4900 | -762.0 | -644.9 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -23.38 | 143.23 | -13.74 | 154.66 | 0.5113 | -817.0 | -642.6 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -23.49 | 142.95 | -14.02 | 154.31 | 0.5146 | -528.0 | -527.8 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -19.44 | 137.61 | -19.36 | 141.74 | 0.5068 | -661.0 | -486.9 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -22.69 | 136.91 | -20.06 | 144.74 | 0.5502 | -665.0 | -535.2 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -19.01 | 136.12 | -20.85 | 139.13 | 0.5163 | -784.0 | -520.1 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -22.95 | 131.51 | -25.45 | 138.61 | 0.6008 | -234.0 | -353.9 | |
| 0.00 | 0.64 | 0.00 | 0.47 | -24.44 | 118.15 | -38.82 | 129.12 | 0.7378 | -428.0 | -451.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
