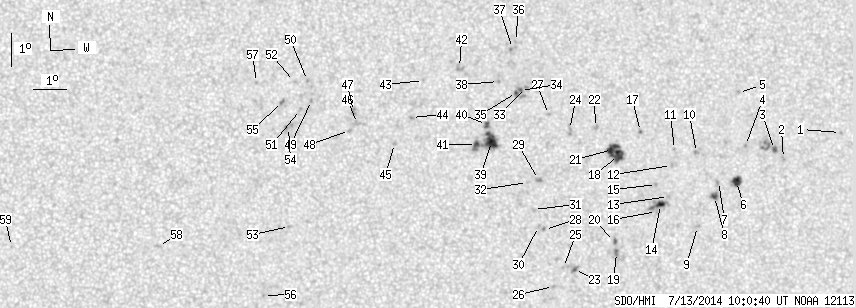

SDO HMI 2014-07-13 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.21 | 196.00 | 23.23 | 98.43 | 7.79 | 163.52 | 7.10 | 299.26 | 0.1540 | -276.2 | -173.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.66 | 8.34 | 172.76 | 16.35 | 285.24 | 0.2899 | -830.0 | -715.9 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 7.58 | 170.91 | 14.50 | 284.05 | 0.2569 | -890.0 | -723.1 | |
| 1.18 | 11.54 | 0.60 | 5.90 | 7.86 | 170.64 | 14.22 | 285.37 | 0.2535 | -1041.8 | -853.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 8.00 | 169.72 | 13.31 | 286.85 | 0.2392 | -996.0 | -907.3 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 9.63 | 169.56 | 13.15 | 293.44 | 0.2455 | -788.0 | -631.4 | |
| 5.54 | 9.08 | 2.82 | 4.62 | 6.91 | 169.41 | 12.99 | 282.60 | 0.2296 | -1147.1 | -807.9 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 6.92 | 168.84 | 12.42 | 283.15 | 0.2203 | -892.0 | -779.0 | |
| 1.73 | 4.18 | 0.88 | 2.12 | 6.46 | 168.70 | 12.28 | 281.22 | 0.2165 | -1146.6 | -943.0 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 5.56 | 168.15 | 11.73 | 277.32 | 0.2049 | -845.0 | -738.5 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 7.81 | 168.17 | 11.76 | 287.93 | 0.2131 | -963.0 | -866.7 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 7.92 | 167.49 | 11.07 | 289.39 | 0.2025 | -825.0 | -630.9 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 7.43 | 167.38 | 10.96 | 287.22 | 0.1983 | -881.0 | -737.4 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 6.49 | 167.26 | 10.84 | 282.65 | 0.1924 | -813.0 | -723.4 | |
| 3.72 | 12.26 | 1.88 | 6.18 | 6.25 | 167.01 | 10.59 | 281.66 | 0.1874 | -1113.4 | -736.7 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 6.86 | 166.90 | 10.48 | 284.99 | 0.1878 | -1105.0 | -847.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 6.03 | 166.88 | 10.46 | 280.66 | 0.1845 | -107.0 | -86.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 8.48 | 166.44 | 10.02 | 293.98 | 0.1892 | -924.0 | -749.1 | |
| 7.81 | 20.89 | 3.93 | 10.51 | 7.76 | 165.73 | 9.31 | 291.69 | 0.1734 | -1053.2 | -803.2 | |
| 0.00 | 2.91 | 0.00 | 1.46 | 4.80 | 165.61 | 9.19 | 274.38 | 0.1604 | 1111.0 | 965.3 | |
| 0.54 | 2.54 | 0.27 | 1.28 | 5.14 | 165.56 | 9.14 | 276.51 | 0.1599 | 1073.3 | 860.5 | |
| 8.08 | -18.00 | 4.06 | -18.00 | 7.94 | 165.55 | 9.13 | 293.08 | 0.1716 | -1176.7 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.42 | 8.62 | 165.04 | 8.62 | 297.97 | 0.1685 | -957.0 | -767.0 | |
| 0.45 | 4.45 | 0.23 | 2.23 | 4.30 | 164.31 | 7.89 | 271.33 | 0.1375 | -1126.8 | -799.3 | |
| 0.00 | 4.36 | 0.00 | 2.19 | 8.57 | 164.23 | 7.81 | 300.03 | 0.1558 | -786.0 | -721.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 4.36 | 163.97 | 7.55 | 271.86 | 0.1317 | -839.0 | -542.9 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 3.79 | 163.66 | 7.24 | 267.34 | 0.1264 | -936.0 | -677.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 9.04 | 163.58 | 7.16 | 304.81 | 0.1507 | -843.0 | -660.0 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 5.53 | 163.40 | 6.98 | 281.44 | 0.1240 | 989.0 | 893.1 | |
| 0.00 | 3.36 | 0.00 | 1.68 | 7.05 | 163.24 | 6.82 | 293.44 | 0.1290 | -1081.0 | -930.8 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 5.62 | 163.21 | 6.80 | 282.49 | 0.1212 | 876.0 | 645.5 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 6.14 | 163.07 | 6.65 | 286.97 | 0.1209 | 822.0 | 535.5 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 6.96 | 162.89 | 6.48 | 293.85 | 0.1230 | -736.0 | -525.0 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 9.87 | 162.88 | 6.47 | 312.03 | 0.1500 | 1015.0 | 791.7 | |
| 0.54 | 7.72 | 0.27 | 3.87 | 9.78 | 162.73 | 6.31 | 312.26 | 0.1470 | 1118.3 | 881.5 | |
| 0.91 | -34.00 | 0.45 | -34.00 | 9.72 | 162.60 | 6.18 | 312.52 | 0.1447 | 1233.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.28 | 162.60 | 6.19 | 319.67 | 0.1640 | 927.0 | 733.1 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 11.07 | 162.51 | 6.09 | 319.25 | 0.1601 | 1005.0 | 893.2 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 10.06 | 162.05 | 5.63 | 316.90 | 0.1420 | -930.0 | -658.5 | |
| 11.90 | 28.16 | 5.94 | 14.04 | 8.23 | 161.80 | 5.38 | 307.53 | 0.1176 | -1197.5 | -751.9 | |
| 1.54 | 3.54 | 0.77 | 1.77 | 8.75 | 161.65 | 5.24 | 311.70 | 0.1213 | -1012.5 | -787.4 | |
| 2.27 | -39.00 | 1.13 | -39.00 | 8.14 | 161.34 | 4.92 | 309.41 | 0.1103 | -1009.8 | 999999 | |
| 0.00 | 5.00 | 0.00 | 2.50 | 10.50 | 160.84 | 4.42 | 325.57 | 0.1348 | -848.0 | -736.5 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 10.11 | 159.72 | 3.30 | 331.35 | 0.1188 | -835.0 | -668.9 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 8.98 | 159.34 | 2.92 | 329.12 | 0.0985 | 1051.0 | 785.1 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 8.18 | 158.81 | 2.39 | 329.60 | 0.0819 | 937.0 | 697.3 | |
| 0.00 | 5.63 | 0.00 | 2.80 | 8.80 | 157.67 | 1.25 | 345.07 | 0.0842 | 888.0 | 708.4 | |
| 0.00 | 3.81 | 0.00 | 1.90 | 9.17 | 157.55 | 1.13 | 347.44 | 0.0899 | 972.0 | 800.3 | |
| 0.00 | 2.09 | 0.00 | 1.04 | 8.58 | 157.42 | 1.00 | 347.36 | 0.0795 | 948.0 | 695.6 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 9.50 | 156.25 | -0.17 | 1.76 | 0.0937 | 1131.0 | 868.2 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 10.12 | 156.13 | -0.29 | 2.74 | 0.1045 | 848.0 | 676.9 | |
| 0.00 | 1.91 | 0.00 | 0.95 | 9.23 | 155.91 | -0.51 | 5.63 | 0.0893 | 879.0 | 718.0 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 10.09 | 155.73 | -0.69 | 6.56 | 0.1045 | 669.0 | 549.9 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 5.66 | 155.58 | -0.84 | 29.16 | 0.0302 | 864.0 | 644.5 | |
| 0.00 | 5.45 | 0.00 | 2.71 | 8.68 | 155.54 | -0.88 | 10.84 | 0.0807 | 603.0 | 783.2 | |
| 0.00 | 2.63 | 0.00 | 1.31 | 9.47 | 155.36 | -1.06 | 11.15 | 0.0949 | 1088.0 | 871.5 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 3.56 | 154.78 | -1.64 | 110.10 | 0.0305 | 875.0 | 724.1 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 10.06 | 154.55 | -1.87 | 17.33 | 0.1082 | 868.0 | 732.3 | |
| 0.00 | 3.09 | 0.00 | 1.54 | 5.04 | 151.56 | -4.86 | 79.46 | 0.0862 | 942.0 | 624.0 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 5.00 | 147.03 | -9.39 | 84.45 | 0.1640 | 842.0 | 640.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
