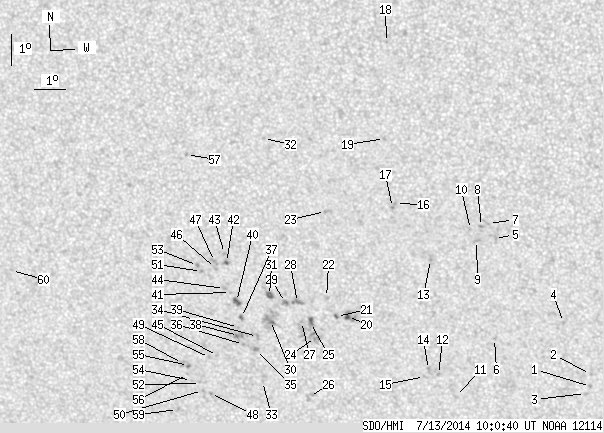

SDO HMI 2014-07-13 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.44 | 149.50 | 2.45 | 82.37 | -20.09 | 147.84 | -8.57 | 161.35 | 0.4376 | 16.4 | 164.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 1.01 | -22.48 | 157.06 | 0.64 | 181.32 | 0.4503 | 834.0 | 684.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -22.07 | 157.06 | 0.64 | 181.34 | 0.4439 | 623.0 | 560.2 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -22.72 | 156.89 | 0.47 | 180.97 | 0.4540 | 483.0 | 507.6 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -20.32 | 156.17 | -0.25 | 179.44 | 0.4160 | 779.0 | 506.6 | |
| 0.00 | 4.36 | 0.00 | 2.33 | -17.53 | 153.97 | -2.44 | 173.72 | 0.3733 | 534.0 | 620.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -20.85 | 153.92 | -2.50 | 174.50 | 0.4264 | 816.0 | 674.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -17.04 | 153.79 | -2.63 | 173.08 | 0.3657 | 752.0 | 689.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -17.14 | 153.57 | -2.85 | 172.54 | 0.3677 | 1045.0 | 828.5 | |
| 0.00 | 2.45 | 0.00 | 1.31 | -17.60 | 153.40 | -3.02 | 172.28 | 0.3755 | 831.0 | 623.7 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -17.24 | 153.21 | -3.21 | 171.67 | 0.3701 | 744.0 | 535.9 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.83 | 152.59 | -3.83 | 172.28 | 0.4596 | 497.0 | 407.5 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -22.08 | 152.05 | -4.37 | 170.93 | 0.4493 | 776.0 | 572.6 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -18.23 | 151.91 | -4.51 | 168.89 | 0.3895 | 786.0 | 677.8 | |
| 0.00 | 2.45 | 0.00 | 1.36 | -21.91 | 151.73 | -4.69 | 170.20 | 0.4475 | 747.0 | 643.0 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -22.15 | 151.59 | -4.83 | 170.01 | 0.4516 | 682.0 | 550.0 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -16.40 | 150.84 | -5.58 | 165.11 | 0.3645 | 711.0 | 569.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -16.53 | 150.74 | -5.68 | 164.95 | 0.3670 | 982.0 | 831.5 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -11.24 | 150.69 | -5.73 | 159.72 | 0.2839 | 810.0 | 615.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -14.30 | 150.55 | -5.87 | 162.60 | 0.3328 | 835.0 | 666.9 | |
| 1.54 | 8.45 | 0.85 | 4.63 | -20.14 | 149.14 | -7.28 | 163.86 | 0.4295 | 957.5 | 820.1 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -20.14 | 148.78 | -7.64 | 163.11 | 0.4312 | 843.0 | 669.4 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -19.51 | 148.49 | -7.93 | 162.02 | 0.4231 | 85.0 | 163.8 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -16.68 | 148.59 | -7.83 | 159.81 | 0.3798 | 757.0 | 649.1 | |
| 0.00 | 8.17 | 0.00 | 4.52 | -20.86 | 148.05 | -8.37 | 162.15 | 0.4452 | 60.0 | 274.1 | |
| 0.00 | 5.99 | 0.00 | 3.30 | -20.35 | 147.92 | -8.50 | 161.49 | 0.4385 | 856.0 | 764.3 | |
| 0.00 | 5.54 | 0.00 | 3.12 | -22.86 | 147.73 | -8.69 | 162.94 | 0.4763 | 614.0 | 394.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -20.32 | 147.62 | -8.80 | 160.88 | 0.4395 | 394.0 | 335.0 | |
| 0.00 | 5.45 | 0.00 | 2.99 | -19.69 | 147.53 | -8.89 | 160.17 | 0.4306 | 950.0 | 832.0 | |
| 0.00 | 4.00 | 0.00 | 2.19 | -19.69 | 147.13 | -9.28 | 159.37 | 0.4328 | 865.0 | 708.8 | |
| 0.00 | 20.98 | 0.00 | 11.59 | -20.30 | 146.60 | -9.82 | 158.84 | 0.4447 | 309.0 | 314.3 | |
| 0.00 | 4.63 | 0.00 | 2.54 | -19.47 | 146.62 | -9.79 | 158.13 | 0.4325 | 899.0 | 791.6 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -14.33 | 146.71 | -9.71 | 152.66 | 0.3574 | 732.0 | 517.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.37 | 146.19 | -10.23 | 159.77 | 0.4767 | -764.0 | -625.5 | |
| 0.00 | 2.09 | 0.00 | 1.16 | -20.84 | 146.14 | -10.28 | 158.41 | 0.4552 | -704.0 | -529.7 | |
| 0.00 | 2.54 | 0.00 | 1.42 | -21.28 | 146.07 | -10.35 | 158.66 | 0.4618 | -720.0 | -676.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.12 | 145.65 | -10.77 | 157.74 | 0.4619 | -923.0 | -663.2 | |
| 0.45 | 2.18 | 0.25 | 1.21 | -20.21 | 145.65 | -10.77 | 156.92 | 0.4490 | -813.0 | -622.2 | |
| 0.00 | 5.09 | 0.00 | 2.83 | -20.82 | 145.51 | -10.91 | 157.20 | 0.4585 | -1161.0 | -888.1 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -20.55 | 145.53 | -10.89 | 157.00 | 0.4546 | -794.0 | -673.9 | |
| 2.00 | 4.72 | 1.10 | 2.61 | -19.68 | 145.52 | -10.89 | 156.17 | 0.4422 | -825.5 | -660.9 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -19.38 | 145.35 | -11.07 | 155.53 | 0.4392 | -730.0 | -614.0 | |
| 0.45 | 2.18 | 0.25 | 1.19 | -18.39 | 145.28 | -11.13 | 154.38 | 0.4255 | -919.0 | -789.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -18.09 | 145.24 | -11.18 | 153.97 | 0.4217 | -991.0 | -788.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -19.25 | 145.16 | -11.26 | 155.03 | 0.4385 | -774.0 | -595.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -21.50 | 144.75 | -11.67 | 156.45 | 0.4727 | -759.0 | -552.1 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -18.59 | 144.91 | -11.51 | 153.86 | 0.4310 | -703.0 | -559.9 | |
| 0.00 | 3.45 | 0.00 | 1.89 | -18.36 | 144.89 | -11.53 | 153.57 | 0.4279 | -948.0 | -705.3 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -22.80 | 144.41 | -12.01 | 156.99 | 0.4929 | -677.0 | -606.4 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -21.57 | 144.48 | -11.94 | 156.03 | 0.4754 | -798.0 | -692.3 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -22.70 | 144.14 | -12.27 | 156.46 | 0.4931 | -661.0 | -567.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -18.70 | 144.44 | -11.98 | 153.07 | 0.4357 | -872.0 | -740.3 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.46 | 144.10 | -12.32 | 156.17 | 0.4901 | -541.0 | -581.2 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -18.50 | 144.32 | -12.09 | 152.62 | 0.4339 | -979.0 | -775.3 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -22.37 | 143.80 | -12.62 | 155.58 | 0.4906 | -721.0 | -645.1 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -21.86 | 143.75 | -12.67 | 155.02 | 0.4840 | -1048.0 | -922.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -22.16 | 143.69 | -12.73 | 155.20 | 0.4885 | -900.0 | -713.0 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -14.88 | 144.21 | -12.21 | 147.80 | 0.3852 | 935.0 | 706.6 | |
| 0.00 | 3.00 | 0.00 | 1.70 | -21.79 | 143.55 | -12.87 | 154.62 | 0.4843 | -781.0 | -705.7 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -23.37 | 143.23 | -13.19 | 155.54 | 0.5078 | -626.0 | -535.9 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -18.78 | 138.09 | -18.33 | 142.38 | 0.4896 | -743.0 | -546.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
