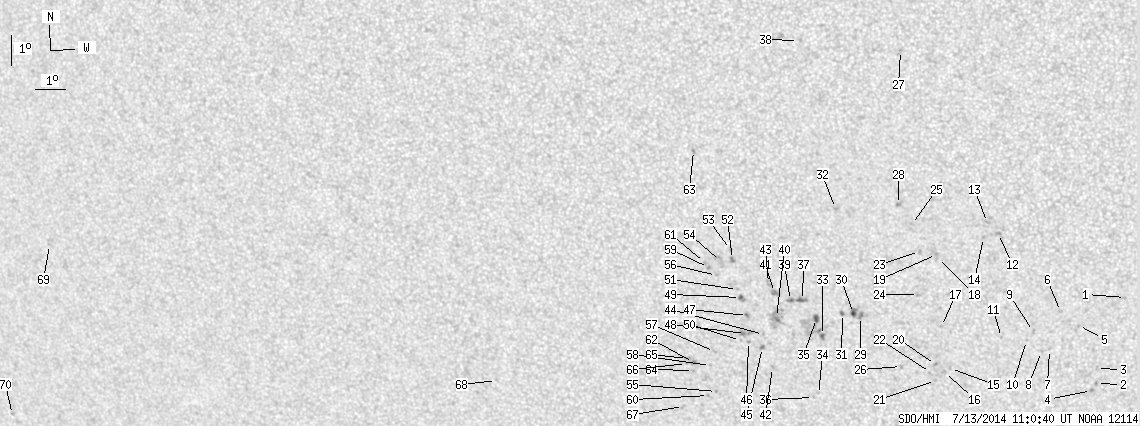

SDO HMI 2014-07-13 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.37 | 164.38 | 2.94 | 90.70 | -20.19 | 147.68 | -8.19 | 162.52 | 0.4390 | 157.6 | 131.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.34 | -19.59 | 157.99 | 2.12 | 184.95 | 0.4058 | 636.0 | 436.6 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -22.48 | 157.07 | 1.20 | 182.47 | 0.4506 | 891.0 | 758.7 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -21.97 | 157.07 | 1.20 | 182.52 | 0.4426 | 694.0 | 559.8 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -22.72 | 156.91 | 1.04 | 182.12 | 0.4542 | 844.0 | 655.3 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -20.52 | 156.47 | 0.60 | 181.35 | 0.4193 | 595.0 | 546.0 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -20.05 | 155.89 | 0.02 | 180.04 | 0.4117 | 672.0 | 625.0 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -21.32 | 155.52 | -0.34 | 179.25 | 0.4320 | 652.0 | 473.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.39 | 155.26 | -0.61 | 178.69 | 0.4332 | 659.0 | 502.4 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -20.72 | 155.00 | -0.86 | 178.08 | 0.4226 | 843.0 | 645.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.02 | 154.77 | -1.09 | 177.60 | 0.4275 | 663.0 | 515.2 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -20.92 | 153.96 | -1.91 | 175.80 | 0.4267 | 822.0 | 710.4 | |
| 0.00 | 2.18 | 0.00 | 1.16 | -17.46 | 153.91 | -1.96 | 174.93 | 0.3714 | 888.0 | 686.8 | |
| 0.00 | 2.18 | 0.00 | 1.16 | -17.10 | 153.56 | -2.31 | 173.94 | 0.3662 | 1018.0 | 734.7 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -17.60 | 153.43 | -2.44 | 173.74 | 0.3743 | 801.0 | 609.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.97 | 152.27 | -3.60 | 172.46 | 0.4459 | 735.0 | 605.1 | |
| 0.00 | 2.18 | 0.00 | 1.21 | -22.11 | 152.06 | -3.80 | 172.09 | 0.4485 | 688.0 | 522.7 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -20.56 | 152.01 | -3.86 | 171.42 | 0.4244 | 805.0 | 613.9 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -18.29 | 151.94 | -3.93 | 170.32 | 0.3888 | 685.0 | 591.0 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -18.16 | 151.91 | -3.96 | 170.19 | 0.3868 | 833.0 | 661.3 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.84 | 151.78 | -4.09 | 171.40 | 0.4449 | 882.0 | 719.0 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -22.38 | 151.76 | -4.11 | 171.56 | 0.4534 | 604.0 | 483.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -22.11 | 151.60 | -4.27 | 171.14 | 0.4496 | 320.0 | 402.2 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -18.06 | 151.36 | -4.51 | 168.82 | 0.3869 | 817.0 | 616.7 | |
| 0.00 | 2.09 | 0.00 | 1.13 | -19.49 | 151.29 | -4.58 | 169.37 | 0.4096 | 633.0 | 527.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -17.18 | 151.13 | -4.74 | 167.75 | 0.3736 | 896.0 | 735.5 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -21.91 | 150.65 | -5.22 | 169.13 | 0.4490 | 783.0 | 560.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -11.58 | 150.91 | -4.96 | 162.65 | 0.2851 | 903.0 | 601.4 | |
| 0.00 | 2.36 | 0.00 | 1.26 | -16.53 | 150.73 | -5.14 | 166.33 | 0.3648 | 1035.0 | 848.6 | |
| 0.00 | 3.00 | 0.00 | 1.64 | -20.23 | 149.37 | -6.49 | 165.57 | 0.4277 | 798.0 | 704.1 | |
| 1.82 | 5.36 | 0.99 | 2.93 | -20.14 | 149.15 | -6.72 | 165.03 | 0.4271 | 937.5 | 770.8 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -20.14 | 148.79 | -7.08 | 164.27 | 0.4287 | 863.0 | 686.9 | |
| 0.00 | 1.91 | 0.00 | 1.02 | -16.67 | 148.71 | -7.16 | 161.42 | 0.3761 | 688.0 | 562.1 | |
| 0.73 | 19.34 | 0.40 | 10.67 | -20.88 | 148.10 | -7.77 | 163.35 | 0.4429 | 590.5 | 160.1 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -22.89 | 147.85 | -8.02 | 164.19 | 0.4738 | 628.0 | 607.0 | |
| 2.09 | 4.90 | 1.15 | 2.70 | -20.31 | 147.93 | -7.94 | 162.61 | 0.4352 | 963.3 | 667.1 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -22.99 | 147.68 | -8.19 | 163.94 | 0.4761 | 606.0 | 514.5 | |
| 0.00 | 4.36 | 0.00 | 2.39 | -19.72 | 147.50 | -8.37 | 161.27 | 0.4283 | 932.0 | 822.0 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -11.29 | 147.73 | -8.14 | 152.39 | 0.3010 | 585.0 | 580.5 | |
| 0.00 | 2.36 | 0.00 | 1.29 | -19.72 | 147.11 | -8.76 | 160.46 | 0.4304 | 844.0 | 776.1 | |
| 0.00 | 22.07 | 0.00 | 12.17 | -20.29 | 146.62 | -9.25 | 159.94 | 0.4415 | 257.0 | 292.2 | |
| 0.00 | 4.54 | 0.00 | 2.49 | -19.46 | 146.60 | -9.27 | 159.20 | 0.4293 | 936.0 | 763.5 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -21.98 | 146.37 | -9.50 | 160.81 | 0.4674 | -780.0 | -621.7 | |
| 0.00 | 3.09 | 0.00 | 1.69 | -19.16 | 146.42 | -9.45 | 158.56 | 0.4260 | 458.0 | 523.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.87 | 146.15 | -9.72 | 159.51 | 0.4524 | -626.0 | -449.8 | |
| 0.00 | 2.09 | 0.00 | 1.16 | -21.31 | 146.09 | -9.78 | 159.75 | 0.4591 | -758.0 | -715.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.11 | 145.64 | -10.23 | 158.73 | 0.4588 | -702.0 | -667.0 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -20.24 | 145.66 | -10.21 | 158.02 | 0.4460 | -890.0 | -667.5 | |
| 0.00 | 5.27 | 0.00 | 2.93 | -20.84 | 145.56 | -10.31 | 158.35 | 0.4554 | -1007.0 | -848.5 | |
| 0.73 | 3.91 | 0.40 | 2.15 | -19.64 | 145.47 | -10.40 | 157.10 | 0.4386 | -1009.2 | -749.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -21.08 | 145.37 | -10.50 | 158.21 | 0.4598 | -613.0 | -526.6 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -19.37 | 145.39 | -10.48 | 156.69 | 0.4353 | -708.0 | -541.6 | |
| 0.00 | 2.63 | 0.00 | 1.44 | -18.38 | 145.29 | -10.58 | 155.50 | 0.4217 | -920.0 | -827.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -18.05 | 145.25 | -10.62 | 155.06 | 0.4173 | -942.0 | -804.2 | |
| 0.00 | 6.54 | 0.00 | 3.58 | -18.45 | 144.90 | -10.97 | 154.77 | 0.4253 | -691.0 | -653.8 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -22.83 | 144.43 | -11.44 | 158.00 | 0.4899 | -913.0 | -734.2 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -18.92 | 144.73 | -11.14 | 154.93 | 0.4330 | -723.0 | -582.3 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -21.46 | 144.48 | -11.39 | 156.90 | 0.4705 | -797.0 | -676.7 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -21.94 | 144.30 | -11.57 | 157.02 | 0.4783 | -657.0 | -474.9 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -18.66 | 144.49 | -11.38 | 154.18 | 0.4310 | -947.0 | -770.3 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.97 | 144.15 | -11.72 | 157.63 | 0.4935 | -626.0 | -492.4 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -18.49 | 144.37 | -11.50 | 153.77 | 0.4295 | -943.0 | -737.4 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -21.85 | 143.74 | -12.13 | 155.95 | 0.4804 | -1030.0 | -896.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -14.84 | 144.24 | -11.63 | 148.99 | 0.3797 | 888.0 | 666.6 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -22.12 | 143.72 | -12.15 | 156.15 | 0.4843 | -813.0 | -645.9 | |
| 0.00 | 2.27 | 0.00 | 1.28 | -21.72 | 143.55 | -12.32 | 155.49 | 0.4798 | -797.0 | -675.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -21.89 | 143.50 | -12.37 | 155.57 | 0.4824 | -775.0 | -675.1 | |
| 0.00 | 2.09 | 0.00 | 1.20 | -23.36 | 143.26 | -12.61 | 156.48 | 0.5041 | -761.0 | -535.9 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -22.59 | 136.92 | -18.95 | 146.11 | 0.5399 | -696.0 | -582.5 | |
| 0.00 | 0.82 | 0.00 | 0.54 | -18.55 | 121.30 | -34.57 | 124.81 | 0.6573 | -368.0 | -394.8 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -24.42 | 118.09 | -37.78 | 129.79 | 0.7282 | -566.0 | -517.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
