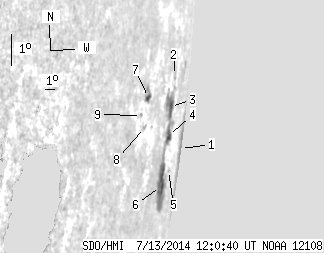

SDO HMI 2014-07-13 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.96 | 96.27 | 158.93 | 356.98 | -7.08 | 237.01 | 81.69 | 262.27 | 0.9912 | -133.0 | 16.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 12.99 | -7.38 | 242.70 | 87.39 | 262.45 | 0.9995 | 606.0 | 581.1 | |
| 0.00 | 2.72 | 0.00 | 10.54 | -4.75 | 237.66 | 82.34 | 264.66 | 0.9925 | -60.0 | -58.0 | |
| 10.72 | 80.64 | 39.19 | 302.34 | -5.67 | 237.12 | 81.80 | 263.69 | 0.9915 | 382.4 | 3.2 | |
| 5.27 | -3.00 | 20.36 | -3.00 | -6.58 | 237.38 | 82.06 | 262.80 | 0.9923 | -325.3 | 999999 | |
| 0.00 | 0.91 | 0.00 | 4.24 | -7.75 | 238.55 | 83.23 | 261.73 | 0.9948 | 334.0 | 374.9 | |
| 24.52 | -3.00 | 93.51 | -3.00 | -8.14 | 237.01 | 81.70 | 261.21 | 0.9918 | -298.9 | 999999 | |
| 2.45 | 8.45 | 5.87 | 20.08 | -5.09 | 232.93 | 77.61 | 263.90 | 0.9793 | -423.8 | -269.7 | |
| 0.00 | 1.73 | 0.00 | 4.12 | -6.00 | 232.76 | 77.44 | 262.95 | 0.9790 | -234.0 | -227.2 | |
| 0.00 | 1.18 | 0.00 | 2.67 | -5.59 | 232.15 | 76.83 | 263.32 | 0.9767 | -369.0 | -341.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
