SDO HMI 2014-07-13 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.55 | 540.80 | 118.15 | 694.99 | -7.78 | 221.77 | 66.45 | 259.78 | 0.9243 | 606.2 | 177.3 | |
|
previous
or next observation for the same group /

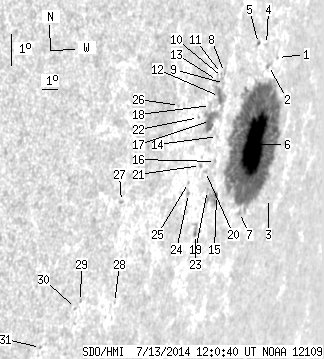

back to the solar disc SDO HMI 2014-07-13 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 1.23 | -5.22 | 223.36 | 68.04 | 262.74 | 0.9326 | 237.0 | 278.3 | |
| 0.00 | 2.36 | 0.00 | 3.12 | -5.42 | 222.67 | 67.35 | 262.44 | 0.9284 | 129.0 | 166.3 | |
| 0.00 | 0.82 | 0.00 | 1.18 | -9.64 | 224.06 | 68.75 | 258.14 | 0.9403 | -148.0 | -158.4 | |
| 0.00 | 1.45 | 0.00 | 1.89 | -4.75 | 222.37 | 67.05 | 263.12 | 0.9260 | 297.0 | 241.1 | |
| 0.45 | 1.73 | 0.57 | 2.19 | -4.68 | 221.73 | 66.41 | 263.12 | 0.9217 | -53.0 | -81.1 | |
| 85.73 | 454.25 | 112.50 | 594.65 | -7.83 | 222.22 | 66.90 | 259.79 | 0.9275 | 805.2 | 202.6 | |
| 0.00 | 1.54 | 0.00 | 2.01 | -9.92 | 221.80 | 66.48 | 257.49 | 0.9268 | -58.0 | 11.8 | |
| 0.00 | 2.54 | 0.00 | 2.95 | -5.41 | 219.36 | 64.04 | 262.01 | 0.9056 | -208.0 | -205.5 | |
| 0.00 | 1.18 | 0.00 | 1.37 | -5.75 | 219.43 | 64.11 | 261.64 | 0.9065 | -269.0 | -302.5 | |
| 0.00 | 1.00 | 0.00 | 1.15 | -5.56 | 219.25 | 63.93 | 261.83 | 0.9049 | -362.0 | -329.7 | |
| 0.00 | 0.73 | 0.00 | 0.83 | -5.43 | 219.15 | 63.83 | 261.96 | 0.9041 | -201.0 | -226.0 | |
| 2.82 | 16.16 | 3.25 | 18.66 | -6.14 | 219.16 | 63.84 | 261.18 | 0.9049 | -401.3 | -306.8 | |
| 0.00 | 3.00 | 0.00 | 3.42 | -5.63 | 218.91 | 63.59 | 261.71 | 0.9025 | -293.0 | -248.0 | |
| 0.00 | 0.27 | 0.00 | 0.32 | -7.39 | 219.32 | 64.00 | 259.84 | 0.9073 | 425.0 | 377.7 | |
| 0.91 | 12.53 | 1.09 | 14.92 | -9.26 | 219.82 | 64.50 | 257.89 | 0.9128 | 416.8 | 185.1 | |
| 0.00 | 0.82 | 0.00 | 0.96 | -8.17 | 219.40 | 64.08 | 259.00 | 0.9087 | 214.0 | 299.8 | |
| 0.00 | 19.25 | 0.00 | 21.92 | -6.85 | 218.69 | 63.37 | 260.33 | 0.9021 | 623.0 | 451.6 | |
| 0.00 | 1.45 | 0.00 | 1.64 | -6.38 | 218.58 | 63.27 | 260.83 | 0.9008 | 176.0 | 145.9 | |
| 0.00 | 1.63 | 0.00 | 1.91 | -9.05 | 219.10 | 63.79 | 257.99 | 0.9076 | -87.0 | -74.1 | |
| 0.00 | 1.82 | 0.00 | 2.09 | -8.44 | 218.77 | 63.45 | 258.60 | 0.9045 | 8.0 | 87.0 | |
| 0.00 | 1.54 | 0.00 | 1.75 | -8.22 | 218.36 | 63.05 | 258.77 | 0.9012 | -247.0 | -195.5 | |
| 0.00 | 0.91 | 0.00 | 1.00 | -6.70 | 217.84 | 62.52 | 260.36 | 0.8956 | -74.0 | -87.8 | |
| 0.64 | 5.27 | 0.74 | 6.11 | -10.40 | 218.73 | 63.41 | 256.45 | 0.9065 | 237.6 | 99.4 | |
| 0.00 | 1.54 | 0.00 | 1.72 | -9.06 | 217.80 | 62.48 | 257.75 | 0.8980 | -421.0 | -365.5 | |
| 0.00 | 0.73 | 0.00 | 0.81 | -8.71 | 217.69 | 62.37 | 258.12 | 0.8968 | -209.0 | -302.2 | |
| 0.00 | 0.36 | 0.00 | 0.38 | -6.24 | 216.50 | 61.18 | 260.66 | 0.8845 | -556.0 | -491.8 | |
| 0.00 | 1.73 | 0.00 | 1.69 | -9.03 | 213.57 | 58.25 | 256.98 | 0.8640 | -504.0 | -421.8 | |
| 0.00 | 0.73 | 0.00 | 0.74 | -12.24 | 214.13 | 58.82 | 253.47 | 0.8741 | 148.0 | 237.9 | |
| 0.00 | 0.73 | 0.00 | 0.69 | -12.08 | 212.07 | 56.76 | 253.16 | 0.8565 | -188.0 | -234.1 | |
| 0.00 | 0.91 | 0.00 | 0.86 | -12.28 | 211.86 | 56.54 | 252.87 | 0.8550 | -489.0 | -444.5 | |
| 0.00 | 0.91 | 0.00 | 0.83 | -13.42 | 210.28 | 54.96 | 251.15 | 0.8437 | -431.0 | -447.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
