SDO HMI 2014-07-13 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.72 | 41.03 | 10.15 | 31.63 | 6.13 | 205.37 | 50.05 | 274.57 | 0.7658 | -260.4 | -153.7 | |
|
previous
or next observation for the same group /

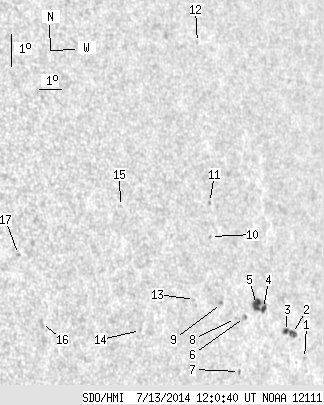

back to the solar disc SDO HMI 2014-07-13 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.20 | 4.39 | 208.70 | 53.39 | 272.38 | 0.8032 | -183.0 | -258.7 | |
| 2.36 | 8.26 | 1.93 | 6.74 | 5.19 | 208.18 | 52.86 | 273.36 | 0.7975 | -621.5 | -508.1 | |
| 1.91 | -2.00 | 1.55 | -2.00 | 5.27 | 207.83 | 52.52 | 273.46 | 0.7938 | -619.1 | 999999 | |
| 2.18 | 14.98 | 1.73 | 11.83 | 6.03 | 206.83 | 51.51 | 274.41 | 0.7829 | -543.8 | -475.6 | |
| 6.27 | -4.00 | 4.94 | -4.00 | 6.17 | 206.50 | 51.19 | 274.58 | 0.7794 | -745.0 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.76 | 5.81 | 205.87 | 50.55 | 274.11 | 0.7725 | -647.0 | -609.0 | |
| 0.00 | 1.54 | 0.00 | 1.19 | 4.18 | 205.45 | 50.14 | 271.98 | 0.7682 | 262.0 | 323.9 | |
| 0.00 | 0.91 | 0.00 | 0.70 | 5.81 | 205.44 | 50.12 | 274.10 | 0.7676 | -317.0 | -365.0 | |
| 0.00 | 1.45 | 0.00 | 1.10 | 6.30 | 204.83 | 49.51 | 274.74 | 0.7608 | -612.0 | -481.9 | |
| 0.00 | 1.00 | 0.00 | 0.76 | 8.37 | 204.62 | 49.30 | 277.47 | 0.7588 | 355.0 | 389.9 | |
| 0.00 | 1.00 | 0.00 | 0.76 | 9.40 | 204.77 | 49.45 | 278.83 | 0.7609 | 225.0 | 246.4 | |
| 0.00 | 0.64 | 0.00 | 0.49 | 14.32 | 205.42 | 50.11 | 285.18 | 0.7725 | -322.0 | -392.3 | |
| 0.00 | 0.64 | 0.00 | 0.47 | 6.49 | 203.59 | 48.27 | 274.99 | 0.7466 | -592.0 | -514.9 | |
| 0.00 | 1.18 | 0.00 | 0.84 | 5.68 | 201.06 | 45.74 | 273.88 | 0.7166 | 604.0 | 419.8 | |
| 0.00 | 0.54 | 0.00 | 0.38 | 9.50 | 200.70 | 45.38 | 279.25 | 0.7136 | 485.0 | 465.3 | |
| 0.00 | 3.72 | 0.00 | 2.46 | 6.10 | 196.89 | 41.57 | 274.51 | 0.6641 | 714.0 | 588.6 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 8.25 | 196.19 | 40.87 | 277.81 | 0.6559 | 780.0 | 601.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
