SDO HMI 2014-07-13 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.05 | 82.09 | 126.92 | 315.07 | -7.19 | 236.74 | 81.97 | 262.18 | 0.9920 | -213.6 | 3.7 | |
|
previous
or next observation for the same group /

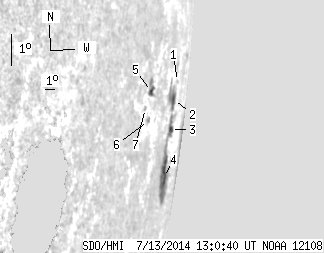

back to the solar disc SDO HMI 2014-07-13 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 4.06 | -5.19 | 237.91 | 83.15 | 264.30 | 0.9942 | -247.0 | -197.1 | |
| 3.72 | 16.62 | 15.16 | 64.68 | -5.69 | 237.29 | 82.52 | 263.73 | 0.9931 | 386.0 | 279.9 | |
| 2.45 | 51.94 | 10.30 | 215.09 | -6.62 | 237.34 | 82.57 | 262.80 | 0.9933 | -263.1 | -61.6 | |
| 22.79 | -3.00 | 93.75 | -3.00 | -8.09 | 237.11 | 82.34 | 261.31 | 0.9932 | -287.9 | 999999 | |
| 3.09 | 8.99 | 7.71 | 22.33 | -5.13 | 232.85 | 78.08 | 263.91 | 0.9809 | -392.9 | -223.7 | |
| 0.00 | 2.27 | 0.00 | 5.69 | -6.02 | 232.81 | 78.04 | 263.00 | 0.9811 | -234.0 | -197.6 | |
| 0.00 | 1.36 | 0.00 | 3.22 | -5.60 | 232.17 | 77.40 | 263.36 | 0.9787 | -383.0 | -351.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
