SDO HMI 2014-07-13 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.81 | 517.22 | 113.42 | 681.55 | -7.81 | 221.86 | 67.09 | 259.83 | 0.9285 | 655.3 | 187.5 | |
|
previous
or next observation for the same group /

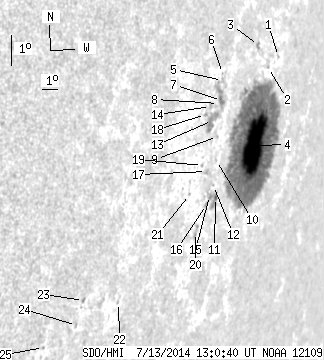

back to the solar disc SDO HMI 2014-07-13 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 1.14 | -5.17 | 223.48 | 68.71 | 262.86 | 0.9367 | 243.0 | 269.2 | |
| 0.00 | 0.91 | 0.00 | 1.23 | -5.46 | 222.70 | 67.94 | 262.47 | 0.9321 | 168.0 | 117.1 | |
| 0.00 | 2.63 | 0.00 | 3.40 | -4.72 | 221.74 | 66.97 | 263.14 | 0.9254 | -244.0 | -141.2 | |
| 81.45 | 450.74 | 109.39 | 603.47 | -7.84 | 222.24 | 67.47 | 259.86 | 0.9311 | 807.7 | 203.1 | |
| 0.00 | 2.18 | 0.00 | 2.57 | -5.62 | 219.21 | 64.44 | 261.83 | 0.9087 | -330.0 | -314.9 | |
| 0.00 | 0.27 | 0.00 | 0.32 | -5.41 | 219.16 | 64.40 | 262.06 | 0.9082 | -174.0 | -170.3 | |
| 2.09 | 13.35 | 2.47 | 15.70 | -6.25 | 219.27 | 64.50 | 261.16 | 0.9098 | -464.0 | -297.0 | |
| 0.00 | 1.09 | 0.00 | 1.28 | -6.33 | 219.07 | 64.31 | 261.04 | 0.9084 | -187.0 | -208.8 | |
| 0.00 | 1.00 | 0.00 | 1.19 | -7.36 | 219.26 | 64.50 | 259.94 | 0.9108 | 470.0 | 450.4 | |
| 0.00 | 0.64 | 0.00 | 0.76 | -8.12 | 219.41 | 64.64 | 259.15 | 0.9126 | 263.0 | 348.7 | |
| 1.27 | 6.63 | 1.56 | 8.09 | -9.29 | 219.72 | 64.95 | 257.92 | 0.9160 | 385.1 | 131.9 | |
| 0.00 | 0.91 | 0.00 | 1.10 | -8.89 | 219.44 | 64.67 | 258.30 | 0.9136 | 263.0 | 283.8 | |
| 0.00 | 14.44 | 0.00 | 16.80 | -6.83 | 218.77 | 64.00 | 260.45 | 0.9067 | 663.0 | 461.6 | |
| 0.00 | 2.45 | 0.00 | 2.82 | -6.38 | 218.52 | 63.75 | 260.90 | 0.9045 | 184.0 | 136.9 | |
| 0.00 | 3.18 | 0.00 | 3.81 | -9.19 | 219.25 | 64.48 | 257.95 | 0.9126 | 49.0 | 76.9 | |
| 0.00 | 1.63 | 0.00 | 1.95 | -9.47 | 219.12 | 64.35 | 257.63 | 0.9121 | 188.0 | 92.9 | |
| 0.00 | 2.27 | 0.00 | 2.67 | -8.41 | 218.78 | 64.01 | 258.72 | 0.9085 | 119.0 | 129.6 | |
| 0.00 | 1.54 | 0.00 | 1.76 | -6.61 | 218.22 | 63.46 | 260.61 | 0.9025 | 451.0 | 401.4 | |
| 0.00 | 1.09 | 0.00 | 1.26 | -8.21 | 218.43 | 63.67 | 258.89 | 0.9058 | -218.0 | -174.9 | |
| 0.00 | 4.36 | 0.00 | 5.16 | -10.31 | 218.64 | 63.87 | 256.63 | 0.9096 | 219.0 | 198.6 | |
| 0.00 | 0.82 | 0.00 | 0.93 | -9.07 | 217.79 | 63.03 | 257.84 | 0.9021 | -402.0 | -390.6 | |
| 0.00 | 0.64 | 0.00 | 0.66 | -12.22 | 214.25 | 59.49 | 253.64 | 0.8794 | 215.0 | 261.0 | |
| 0.00 | 1.54 | 0.00 | 1.49 | -12.02 | 212.08 | 57.32 | 253.36 | 0.8612 | -281.0 | -236.2 | |
| 0.00 | 1.27 | 0.00 | 1.23 | -12.80 | 211.94 | 57.18 | 252.44 | 0.8615 | -320.0 | -261.8 | |
| 0.00 | 0.82 | 0.00 | 0.76 | -13.39 | 210.28 | 55.51 | 251.33 | 0.8484 | -416.0 | -422.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
