SDO HMI 2014-07-13 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.35 | 511.72 | 110.32 | 689.32 | -7.80 | 221.85 | 67.63 | 259.93 | 0.9319 | 678.0 | 184.5 | |
|
previous
or next observation for the same group /

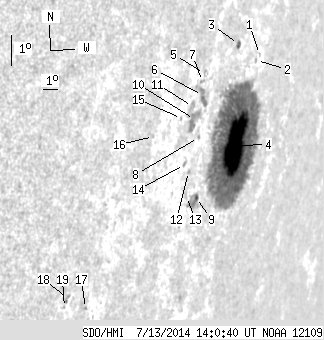

back to the solar disc SDO HMI 2014-07-13 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.27 | 0.00 | 0.39 | -5.12 | 223.50 | 69.29 | 262.99 | 0.9401 | 311.0 | 288.0 | |
| 0.00 | 1.54 | 0.00 | 2.19 | -5.29 | 223.28 | 69.07 | 262.78 | 0.9389 | 535.0 | 468.4 | |
| 1.82 | 3.36 | 2.40 | 4.43 | -4.68 | 221.64 | 67.43 | 263.23 | 0.9284 | -131.1 | -91.1 | |
| 77.26 | 443.70 | 106.33 | 607.88 | -7.85 | 222.25 | 68.03 | 259.94 | 0.9346 | 799.8 | 200.7 | |
| 0.00 | 1.82 | 0.00 | 2.18 | -5.41 | 219.18 | 64.96 | 262.13 | 0.9123 | -189.0 | -224.2 | |
| 0.00 | 10.53 | 0.00 | 12.67 | -6.09 | 219.18 | 64.96 | 261.39 | 0.9129 | -404.0 | -361.6 | |
| 0.00 | 1.91 | 0.00 | 2.28 | -5.65 | 219.08 | 64.87 | 261.86 | 0.9118 | -401.0 | -328.7 | |
| 0.00 | 1.36 | 0.00 | 1.65 | -7.39 | 219.22 | 65.00 | 259.98 | 0.9144 | 330.0 | 370.0 | |
| 1.27 | 13.44 | 1.59 | 16.66 | -9.29 | 219.67 | 65.46 | 258.01 | 0.9194 | 432.6 | 176.6 | |
| 0.00 | 16.07 | 0.00 | 19.09 | -6.81 | 218.77 | 64.55 | 260.56 | 0.9107 | 681.0 | 412.8 | |
| 0.00 | 5.08 | 0.00 | 5.97 | -6.39 | 218.52 | 64.31 | 260.98 | 0.9085 | 194.0 | 158.2 | |
| 0.00 | 1.73 | 0.00 | 2.07 | -8.42 | 218.79 | 64.58 | 258.80 | 0.9125 | 207.0 | 209.5 | |
| 0.00 | 2.00 | 0.00 | 2.41 | -9.21 | 218.90 | 64.69 | 257.97 | 0.9141 | -179.0 | -116.4 | |
| 0.00 | 2.09 | 0.00 | 2.47 | -8.18 | 218.43 | 64.21 | 259.01 | 0.9097 | -206.0 | -119.3 | |
| 0.00 | 1.00 | 0.00 | 1.15 | -6.71 | 217.82 | 63.61 | 260.52 | 0.9037 | -137.0 | -79.8 | |
| 0.00 | 0.82 | 0.00 | 0.88 | -7.15 | 216.03 | 61.82 | 259.75 | 0.8906 | -109.0 | -196.6 | |
| 0.00 | 1.00 | 0.00 | 1.02 | -12.35 | 213.31 | 59.09 | 253.41 | 0.8765 | 340.0 | 344.5 | |
| 0.00 | 3.09 | 0.00 | 3.04 | -11.96 | 212.09 | 57.87 | 253.57 | 0.8658 | -277.0 | -198.4 | |
| 0.00 | 0.91 | 0.00 | 0.89 | -12.24 | 212.00 | 57.79 | 253.23 | 0.8656 | -465.0 | -417.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
