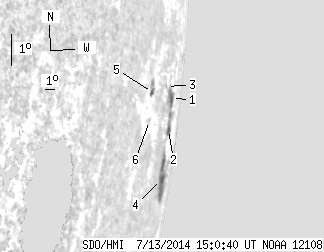

SDO HMI 2014-07-13 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.86 | 63.18 | 123.13 | 293.23 | -7.15 | 236.81 | 83.15 | 262.33 | 0.9943 | -167.2 | 43.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.81 | 23.78 | 17.97 | 112.84 | -5.67 | 237.16 | 83.50 | 263.84 | 0.9949 | 411.8 | 139.7 | |
| 3.72 | -1.00 | 18.34 | -1.00 | -6.64 | 237.26 | 83.60 | 262.88 | 0.9952 | -260.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 3.35 | -5.18 | 235.54 | 81.88 | 264.19 | 0.9916 | 298.0 | 242.0 | |
| 16.79 | 30.77 | 82.59 | 155.93 | -8.17 | 237.08 | 83.42 | 261.33 | 0.9952 | -268.7 | 4.5 | |
| 1.54 | 7.08 | 4.23 | 19.35 | -5.17 | 232.85 | 79.19 | 263.96 | 0.9845 | -368.8 | -276.1 | |
| 0.00 | 0.64 | 0.00 | 1.76 | -6.03 | 232.79 | 79.13 | 263.09 | 0.9846 | -100.0 | -120.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
