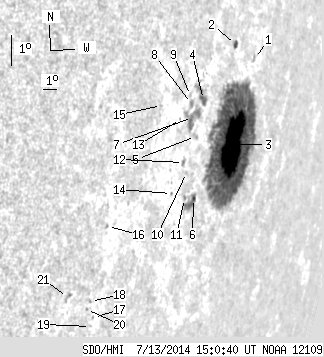

SDO HMI 2014-07-13 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.34 | 513.20 | 123.84 | 706.34 | -7.78 | 221.72 | 68.06 | 260.00 | 0.9345 | 629.9 | 169.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 15:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 2.92 | -5.24 | 223.33 | 69.67 | 262.91 | 0.9424 | 386.0 | 393.6 | |
| 1.82 | 3.36 | 2.45 | 4.53 | -4.69 | 221.58 | 67.92 | 263.29 | 0.9315 | -156.5 | -99.9 | |
| 82.25 | 435.39 | 116.06 | 611.90 | -7.82 | 222.19 | 68.53 | 260.03 | 0.9376 | 768.5 | 186.0 | |
| 2.91 | 14.71 | 3.60 | 18.08 | -6.23 | 219.40 | 65.74 | 261.35 | 0.9184 | -485.9 | -324.3 | |
| 0.00 | 3.36 | 0.00 | 4.14 | -7.36 | 219.10 | 65.44 | 260.09 | 0.9174 | 191.0 | 297.9 | |
| 1.36 | 12.89 | 1.73 | 16.24 | -9.32 | 219.59 | 65.92 | 258.05 | 0.9226 | 402.2 | 145.4 | |
| 0.00 | 20.88 | 0.00 | 25.31 | -6.74 | 218.71 | 65.05 | 260.69 | 0.9141 | 526.0 | 323.3 | |
| 0.00 | 3.54 | 0.00 | 4.25 | -6.30 | 218.53 | 64.87 | 261.15 | 0.9124 | 13.0 | 21.9 | |
| 0.00 | 0.82 | 0.00 | 0.97 | -6.04 | 218.40 | 64.73 | 261.41 | 0.9112 | -150.0 | -157.0 | |
| 0.00 | 1.27 | 0.00 | 1.56 | -8.45 | 218.76 | 65.10 | 258.85 | 0.9161 | 179.0 | 142.0 | |
| 0.00 | 1.36 | 0.00 | 1.68 | -9.27 | 218.89 | 65.23 | 257.99 | 0.9179 | -236.0 | -177.9 | |
| 0.00 | 2.63 | 0.00 | 3.18 | -8.12 | 218.44 | 64.77 | 259.16 | 0.9135 | -263.0 | -128.3 | |
| 0.00 | 0.73 | 0.00 | 0.85 | -6.75 | 217.84 | 64.18 | 260.56 | 0.9080 | -61.0 | -37.6 | |
| 0.00 | 0.82 | 0.00 | 0.97 | -9.05 | 217.86 | 64.20 | 258.06 | 0.9105 | -322.0 | -333.7 | |
| 0.00 | 1.00 | 0.00 | 1.11 | -6.22 | 216.40 | 62.74 | 260.93 | 0.8967 | -176.0 | -235.2 | |
| 0.00 | 1.09 | 0.00 | 1.13 | -9.81 | 213.82 | 60.16 | 256.48 | 0.8810 | -302.0 | -329.2 | |
| 0.00 | 0.73 | 0.00 | 0.77 | -12.68 | 213.94 | 60.28 | 253.31 | 0.8864 | 313.0 | 306.2 | |
| 0.00 | 1.27 | 0.00 | 1.33 | -12.15 | 213.55 | 59.89 | 253.81 | 0.8825 | 470.0 | 458.8 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -12.96 | 213.86 | 60.20 | 252.98 | 0.8863 | 330.0 | 376.3 | |
| 0.00 | 1.09 | 0.00 | 1.14 | -12.39 | 213.39 | 59.73 | 253.51 | 0.8816 | 254.0 | 340.8 | |
| 0.00 | 3.99 | 0.00 | 3.99 | -11.92 | 212.06 | 58.40 | 253.72 | 0.8701 | -199.0 | -202.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
