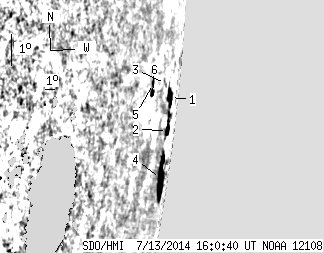

SDO HMI 2014-07-13 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.97 | 52.65 | 113.85 | 269.17 | -7.04 | 236.82 | 83.71 | 262.49 | 0.9954 | -133.9 | -0.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.81 | 20.42 | 24.27 | 106.96 | -5.65 | 237.12 | 84.01 | 263.91 | 0.9958 | 359.7 | 54.7 | |
| 2.27 | -1.00 | 12.29 | -1.00 | -6.68 | 237.30 | 84.19 | 262.89 | 0.9962 | -255.0 | 999999 | |
| 0.00 | 2.18 | 0.00 | 8.32 | -5.08 | 235.34 | 82.23 | 264.32 | 0.9924 | 170.0 | 145.7 | |
| 13.62 | 25.33 | 73.62 | 140.29 | -8.14 | 237.02 | 83.91 | 261.40 | 0.9960 | -267.9 | -37.8 | |
| 0.00 | 2.27 | 0.00 | 6.55 | -4.90 | 232.82 | 79.71 | 264.28 | 0.9860 | -299.0 | -251.7 | |
| 1.27 | 2.45 | 3.67 | 7.05 | -5.21 | 232.79 | 79.69 | 263.97 | 0.9860 | -342.8 | -292.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
