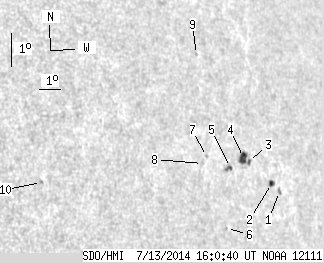

SDO HMI 2014-07-13 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.81 | 25.33 | 8.17 | 20.84 | 5.94 | 206.25 | 53.14 | 274.32 | 0.7998 | -353.9 | -280.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 2.04 | 5.05 | 208.35 | 55.24 | 273.26 | 0.8218 | -367.0 | -257.8 | |
| 2.00 | 3.45 | 1.71 | 2.95 | 5.32 | 207.95 | 54.85 | 273.57 | 0.8178 | -537.0 | -459.9 | |
| 0.73 | 10.44 | 0.61 | 8.66 | 6.06 | 206.84 | 53.74 | 274.46 | 0.8064 | -441.8 | -496.6 | |
| 6.08 | -3.00 | 5.04 | -3.00 | 6.20 | 206.60 | 53.50 | 274.63 | 0.8039 | -715.1 | 999999 | |
| 1.00 | 3.72 | 0.81 | 3.03 | 5.93 | 205.90 | 52.79 | 274.29 | 0.7966 | -643.0 | -562.4 | |
| 0.00 | 1.00 | 0.00 | 0.81 | 4.09 | 205.48 | 52.37 | 271.95 | 0.7927 | 115.0 | 161.2 | |
| 0.00 | 1.09 | 0.00 | 0.87 | 6.33 | 204.75 | 51.64 | 274.79 | 0.7843 | -234.0 | -368.5 | |
| 0.00 | 1.27 | 0.00 | 1.01 | 6.13 | 204.52 | 51.41 | 274.53 | 0.7819 | -161.0 | -248.9 | |
| 0.00 | 0.91 | 0.00 | 0.72 | 9.46 | 204.81 | 51.70 | 278.78 | 0.7855 | 217.0 | 301.6 | |
| 0.00 | 1.09 | 0.00 | 0.75 | 5.95 | 197.13 | 44.02 | 274.26 | 0.6954 | 728.0 | 674.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
