SDO HMI 2014-07-13 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.79 | 45.46 | 97.21 | 261.82 | -7.14 | 236.93 | 84.38 | 262.45 | 0.9963 | -112.3 | -0.4 | |
|
previous
or next observation for the same group /

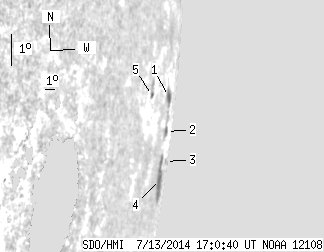

back to the solar disc SDO HMI 2014-07-13 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.90 | 8.26 | 21.82 | 46.32 | -5.57 | 236.79 | 84.24 | 264.00 | 0.9961 | 361.6 | 295.3 | |
| 0.82 | 9.53 | 4.88 | 56.77 | -6.70 | 237.43 | 84.88 | 262.92 | 0.9972 | -197.1 | -92.1 | |
| 0.00 | 1.72 | 0.00 | 19.36 | -7.73 | 238.78 | 86.22 | 262.01 | 0.9987 | 376.0 | 325.5 | |
| 11.25 | 19.51 | 68.02 | 119.80 | -8.16 | 237.12 | 84.57 | 261.44 | 0.9969 | -258.4 | -83.3 | |
| 0.82 | 6.44 | 2.49 | 19.57 | -5.25 | 232.79 | 80.24 | 263.98 | 0.9876 | -305.2 | -264.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
