SDO HMI 2014-07-13 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.30 | 215.23 | 20.04 | 109.40 | 7.33 | 164.19 | 11.64 | 286.42 | 0.2150 | -222.0 | -249.6 | |
|
previous
or next observation for the same group /

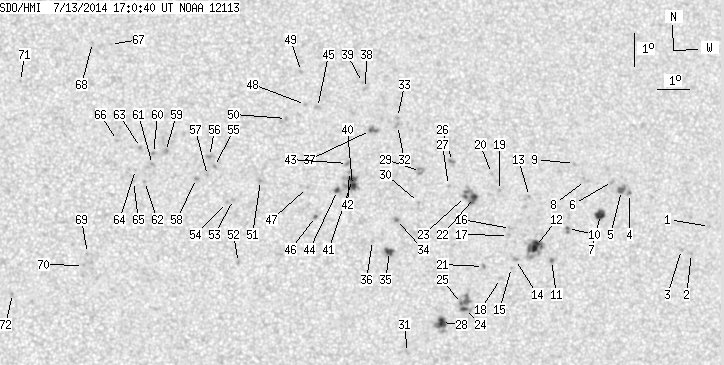

back to the solar disc SDO HMI 2014-07-13 17:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.58 | 6.72 | 173.36 | 20.81 | 277.93 | 0.3578 | -763.0 | -552.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 5.91 | 172.74 | 20.18 | 275.79 | 0.3465 | -768.0 | -517.2 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 6.04 | 172.42 | 19.86 | 276.24 | 0.3414 | -662.0 | -389.5 | |
| 0.00 | 2.27 | 0.00 | 1.19 | 7.79 | 170.80 | 18.25 | 282.14 | 0.3188 | -908.0 | -790.8 | |
| 2.36 | 5.45 | 1.23 | 2.84 | 7.88 | 170.55 | 18.00 | 282.59 | 0.3149 | -1069.0 | -852.1 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 8.17 | 170.27 | 17.72 | 283.64 | 0.3113 | -885.0 | -724.1 | |
| 5.99 | 7.99 | 3.11 | 4.15 | 7.17 | 169.84 | 17.29 | 280.68 | 0.3014 | -1112.6 | -698.2 | |
| 0.00 | 3.18 | 0.00 | 1.65 | 8.22 | 169.40 | 16.85 | 284.40 | 0.2975 | -687.0 | -595.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 8.74 | 169.07 | 16.52 | 286.40 | 0.2943 | -773.0 | -624.5 | |
| 0.45 | 2.90 | 0.23 | 1.50 | 6.76 | 168.77 | 16.21 | 279.85 | 0.2827 | -975.6 | -813.8 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 5.80 | 168.22 | 15.67 | 276.61 | 0.2717 | -949.0 | -869.5 | |
| 6.17 | 23.78 | 3.17 | 12.21 | 6.24 | 167.73 | 15.18 | 278.44 | 0.2643 | -1239.9 | -666.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 7.77 | 167.59 | 15.04 | 284.23 | 0.2664 | -819.0 | -716.7 | |
| 0.00 | 2.54 | 0.00 | 1.30 | 5.85 | 167.08 | 14.53 | 277.24 | 0.2527 | -1024.0 | -819.4 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 5.61 | 166.95 | 14.40 | 276.33 | 0.2501 | 535.0 | 407.5 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 6.80 | 166.95 | 14.40 | 281.04 | 0.2527 | -937.0 | -765.9 | |
| 0.00 | 1.63 | 0.00 | 0.84 | 6.59 | 166.88 | 14.33 | 280.25 | 0.2510 | -366.0 | -376.1 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 5.28 | 166.60 | 14.04 | 275.11 | 0.2437 | -760.0 | -483.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 7.97 | 166.65 | 14.09 | 285.84 | 0.2518 | -943.0 | -747.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 8.49 | 166.41 | 13.86 | 288.10 | 0.2503 | -881.0 | -708.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 5.66 | 166.07 | 13.52 | 276.87 | 0.2353 | 755.0 | 629.1 | |
| 2.54 | 16.16 | 1.30 | 8.23 | 7.77 | 165.85 | 13.29 | 285.85 | 0.2379 | -1121.9 | -920.1 | |
| 0.73 | -22.00 | 0.37 | -22.00 | 7.80 | 165.56 | 13.01 | 286.30 | 0.2334 | -1245.8 | 999999 | |
| 1.72 | 14.61 | 0.88 | 7.43 | 4.36 | 165.44 | 12.89 | 271.33 | 0.2235 | 1149.4 | 861.5 | |
| 0.45 | -24.00 | 0.23 | -24.00 | 4.54 | 165.35 | 12.80 | 272.17 | 0.2220 | 1148.0 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.53 | 8.88 | 165.19 | 12.64 | 291.20 | 0.2329 | -1178.0 | -893.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 8.15 | 165.04 | 12.49 | 288.38 | 0.2265 | -798.0 | -702.7 | |
| 5.72 | 14.16 | 2.90 | 7.18 | 3.98 | 164.72 | 12.16 | 269.53 | 0.2112 | -1035.4 | -786.6 | |
| 0.00 | 5.45 | 0.00 | 2.76 | 8.59 | 164.17 | 11.62 | 291.53 | 0.2150 | -846.0 | -839.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 7.64 | 164.08 | 11.53 | 287.40 | 0.2085 | 853.0 | 584.1 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 3.08 | 163.65 | 11.09 | 264.75 | 0.1938 | -813.0 | -748.9 | |
| 0.00 | 2.72 | 0.00 | 1.38 | 10.01 | 163.50 | 10.94 | 298.86 | 0.2144 | 825.0 | 704.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 10.25 | 163.50 | 10.95 | 299.85 | 0.2165 | 771.0 | 630.4 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 7.14 | 163.38 | 10.83 | 285.89 | 0.1946 | -1130.0 | -986.0 | |
| 3.36 | 5.72 | 1.69 | 2.88 | 6.16 | 163.14 | 10.58 | 281.17 | 0.1870 | 1078.1 | 818.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 6.51 | 162.61 | 10.06 | 283.57 | 0.1794 | -810.0 | -663.2 | |
| 0.64 | 4.54 | 0.32 | 2.30 | 9.87 | 162.64 | 10.09 | 300.18 | 0.2006 | 1121.1 | 933.6 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 11.16 | 162.53 | 9.98 | 305.83 | 0.2106 | 894.0 | 693.4 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.34 | 162.44 | 9.89 | 306.79 | 0.2112 | 932.0 | 737.1 | |
| 4.18 | 23.05 | 2.10 | 11.60 | 8.19 | 162.03 | 9.48 | 293.59 | 0.1786 | -1230.2 | -774.2 | |
| 3.18 | -40.00 | 1.60 | -40.00 | 8.38 | 162.04 | 9.48 | 294.52 | 0.1800 | -1174.1 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 8.62 | 161.95 | 9.40 | 295.97 | 0.1803 | -857.0 | -648.3 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 8.87 | 161.89 | 9.34 | 297.33 | 0.1813 | -1071.0 | -763.2 | |
| 1.36 | -40.00 | 0.68 | -40.00 | 8.05 | 161.56 | 9.01 | 293.84 | 0.1702 | -1095.1 | 999999 | |
| 0.00 | 2.90 | 0.00 | 1.46 | 10.59 | 161.00 | 8.45 | 307.95 | 0.1840 | -841.0 | -643.4 | |
| 0.45 | 1.54 | 0.23 | 0.77 | 7.26 | 160.86 | 8.31 | 290.89 | 0.1541 | -969.8 | -786.6 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 8.15 | 160.63 | 8.08 | 296.76 | 0.1564 | -709.0 | -520.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 10.69 | 160.63 | 8.08 | 309.61 | 0.1800 | -938.0 | -681.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 11.70 | 160.53 | 7.98 | 314.11 | 0.1902 | -895.0 | -766.3 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 10.27 | 160.02 | 7.47 | 309.86 | 0.1674 | -912.0 | -743.8 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 8.38 | 159.17 | 6.62 | 302.93 | 0.1365 | 969.0 | 787.1 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 5.88 | 158.46 | 5.90 | 286.49 | 0.1072 | 929.0 | 688.2 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 7.80 | 158.33 | 5.78 | 302.61 | 0.1189 | -906.0 | -694.0 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 7.71 | 158.14 | 5.59 | 302.80 | 0.1154 | -849.0 | -669.5 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 8.82 | 157.76 | 5.20 | 312.22 | 0.1216 | 1026.0 | 783.8 | |
| 0.00 | 2.18 | 0.00 | 1.09 | 9.12 | 157.61 | 5.05 | 314.89 | 0.1233 | 1058.0 | 861.4 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 8.54 | 157.54 | 4.98 | 311.71 | 0.1156 | 870.0 | 645.8 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 8.45 | 157.20 | 4.64 | 313.12 | 0.1102 | 1083.0 | 854.5 | |
| 0.00 | 2.54 | 0.00 | 1.27 | 9.29 | 156.25 | 3.69 | 324.56 | 0.1102 | 958.0 | 884.4 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.23 | 155.88 | 3.32 | 327.05 | 0.1057 | 1029.0 | 848.5 | |
| 0.00 | 1.82 | 0.00 | 0.90 | 8.89 | 155.84 | 3.29 | 325.49 | 0.1005 | 1139.0 | 902.8 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 8.37 | 155.59 | 3.04 | 324.47 | 0.0906 | 934.0 | 664.4 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.41 | 155.48 | 2.92 | 331.19 | 0.1049 | 1035.0 | 722.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 8.74 | 155.32 | 2.76 | 329.16 | 0.0934 | 946.0 | 579.0 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 8.37 | 155.25 | 2.70 | 327.61 | 0.0873 | 787.0 | 551.2 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 9.63 | 154.77 | 2.21 | 338.20 | 0.1030 | 952.0 | 731.6 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 12.58 | 154.57 | 2.02 | 346.75 | 0.1509 | 630.0 | 581.2 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 12.64 | 154.01 | 1.46 | 350.42 | 0.1501 | 822.0 | 594.9 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 6.18 | 153.82 | 1.27 | 327.90 | 0.0417 | 896.0 | 670.0 | |
| 0.00 | 0.64 | 0.00 | 0.31 | 5.82 | 153.70 | 1.15 | 325.31 | 0.0352 | 889.0 | 736.9 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 11.44 | 151.77 | -0.79 | 6.05 | 0.1279 | 808.0 | 616.5 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 4.97 | 151.53 | -1.02 | 51.91 | 0.0227 | 884.0 | 696.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
