SDO HMI 2014-07-13 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.98 | 22.34 | 8.52 | 18.84 | 5.94 | 206.22 | 54.23 | 274.33 | 0.8109 | -360.0 | -249.4 | |
|
previous
or next observation for the same group /

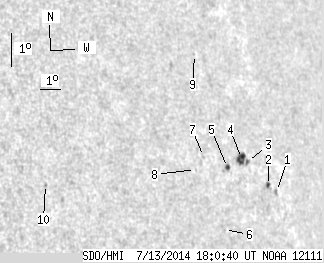

back to the solar disc SDO HMI 2014-07-13 18:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.70 | 5.08 | 208.39 | 56.39 | 273.32 | 0.8331 | -397.0 | -304.6 | |
| 1.36 | 3.09 | 1.20 | 2.72 | 5.28 | 207.97 | 55.98 | 273.56 | 0.8290 | -400.4 | -447.6 | |
| 0.82 | 10.26 | 0.70 | 8.74 | 6.08 | 206.95 | 54.95 | 274.50 | 0.8187 | -347.8 | -453.7 | |
| 6.26 | -3.00 | 5.33 | -3.00 | 6.19 | 206.64 | 54.65 | 274.63 | 0.8157 | -684.4 | 999999 | |
| 1.54 | 2.63 | 1.29 | 2.20 | 5.96 | 205.87 | 53.87 | 274.34 | 0.8078 | -599.5 | -495.0 | |
| 0.00 | 0.73 | 0.00 | 0.60 | 4.09 | 205.49 | 53.49 | 271.99 | 0.8044 | 23.0 | 163.5 | |
| 0.00 | 1.27 | 0.00 | 1.03 | 6.37 | 204.69 | 52.69 | 274.83 | 0.7955 | -337.0 | -330.1 | |
| 0.00 | 0.54 | 0.00 | 0.44 | 6.00 | 204.23 | 52.24 | 274.35 | 0.7907 | -200.0 | -274.8 | |
| 0.00 | 0.64 | 0.00 | 0.52 | 9.49 | 204.81 | 52.82 | 278.76 | 0.7973 | 271.0 | 348.4 | |
| 0.00 | 1.27 | 0.00 | 0.89 | 5.92 | 197.22 | 45.22 | 274.21 | 0.7102 | 558.0 | 544.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
