groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12113 38.11 214.36 19.48 109.08 7.30 163.89 11.89 282.89 0.2201 -171.9 -146.1


previous   or   next   observation for the same group / back to the solar disc

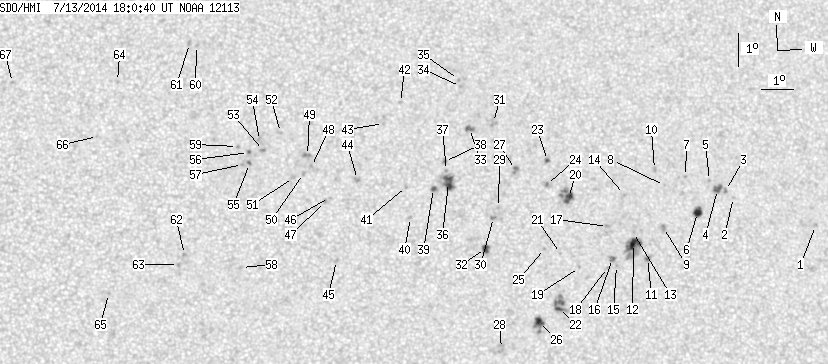

SDO HMI 2014-07-13 18:00:40 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.91 0.00 1.02 6.69 173.73 21.73 277.61 0.3725 -616.0 -502.6
2 0.00 1.18 0.00 0.62 7.62 171.08 19.08 281.18 0.3318 -788.0 -600.9
3 0.00 2.45 0.00 1.28 7.84 170.83 18.84 281.97 0.3284 -880.0 -693.3
4 2.54 5.35 1.33 2.80 7.88 170.57 18.58 282.22 0.3243 -1054.6 -877.1
5 0.00 1.27 0.00 0.66 8.16 170.33 18.33 283.22 0.3212 -956.0 -755.4
6 5.63 7.99 2.93 4.16 7.19 169.90 17.90 280.43 0.3114 -1087.2 -644.0
7 0.00 0.91 0.00 0.47 8.30 169.56 17.56 284.15 0.3093 -790.0 -643.7
8 0.00 0.73 0.00 0.38 8.04 168.87 16.87 283.78 0.2972 -686.0 -546.2
9 0.00 2.81 0.00 1.46 6.76 168.79 16.79 279.53 0.2921 -1015.0 -856.8
10 0.00 2.63 0.00 1.36 8.53 168.57 16.57 285.65 0.2942 -697.0 -507.7
11 0.54 2.45 0.28 1.26 5.82 168.24 16.24 276.50 0.2813 -999.5 -851.0
12 5.35 26.32 2.76 13.56 6.29 167.81 15.81 278.33 0.2750 -1253.4 -658.2
13 0.00 1.36 0.00 0.70 6.62 167.82 15.82 279.54 0.2759 -803.0 -595.4
14 0.00 0.91 0.00 0.47 7.79 167.58 15.58 283.87 0.2753 -810.0 -657.8
15 0.00 1.00 0.00 0.51 5.63 167.25 15.25 276.10 0.2645 516.0 410.0
16 0.00 4.08 0.00 2.10 5.85 167.13 15.13 276.96 0.2628 -1068.0 -812.4
17 0.00 2.09 0.00 1.07 6.82 167.00 15.00 280.73 0.2628 -873.0 -786.9
18 0.00 1.27 0.00 0.65 5.58 166.96 14.97 275.98 0.2596 521.0 363.6
19 0.00 1.18 0.00 0.60 5.59 166.08 14.08 276.35 0.2447 711.0 506.1
20 4.90 15.79 2.50 8.07 7.73 165.80 13.80 285.19 0.2460 -1081.9 -881.5
21 0.00 0.73 0.00 0.37 6.03 165.49 13.49 278.43 0.2356 626.0 423.5
22 1.72 16.06 0.88 8.18 4.36 165.39 13.39 271.28 0.2320 1103.4 872.8
23 0.64 1.91 0.32 0.97 8.87 165.17 13.17 290.42 0.2414 -1064.0 -832.4
24 0.00 2.00 0.00 1.02 8.14 165.11 13.12 287.56 0.2367 -1023.0 -834.5
25 0.00 1.00 0.00 0.51 6.19 164.99 12.99 279.42 0.2276 790.0 550.7
26 4.63 9.71 2.35 4.93 3.97 164.79 12.79 269.55 0.2218 -1069.9 -886.5
27 0.00 3.99 0.00 2.03 8.62 164.15 12.15 290.80 0.2237 -1009.0 -895.5
28 0.00 4.81 0.00 2.43 3.17 163.59 11.59 265.42 0.2022 -491.0 -725.9
29 0.00 1.36 0.00 0.69 7.46 163.58 11.58 286.48 0.2086 -804.0 -570.1
30 0.00 2.27 0.00 1.15 7.16 163.42 11.42 285.26 0.2045 -1129.0 -955.0
31 0.00 3.81 0.00 1.94 10.06 163.51 11.51 297.91 0.2234 883.0 716.4
32 3.27 5.26 1.65 2.66 6.22 163.14 11.15 280.93 0.1966 1055.2 790.8
33 0.00 4.45 0.00 2.25 9.89 162.75 10.75 298.78 0.2106 1063.0 899.3
34 0.00 1.27 0.00 0.64 11.18 162.51 10.51 304.55 0.2183 930.0 719.0
35 0.00 1.27 0.00 0.65 11.40 162.45 10.46 305.51 0.2196 890.0 753.0
36 7.71 17.97 3.89 9.06 8.25 162.04 10.04 292.71 0.1879 -1216.6 -771.2
37 0.00 1.18 0.00 0.60 8.62 161.99 9.99 294.62 0.1895 -872.0 -744.9
38 0.00 2.18 0.00 1.10 8.89 161.93 9.93 296.07 0.1906 -955.0 -758.6
39 1.18 3.09 0.59 1.55 8.07 161.56 9.57 292.76 0.1793 -1096.8 -788.6
40 0.00 1.45 0.00 0.73 7.20 160.83 8.83 289.40 0.1622 -842.0 -602.9
41 0.00 1.63 0.00 0.82 8.15 160.72 8.73 295.02 0.1665 -881.0 -612.9
42 0.00 1.27 0.00 0.64 10.72 160.61 8.61 307.97 0.1874 -814.0 -640.4
43 0.00 1.00 0.00 0.50 10.08 160.06 8.06 306.90 0.1734 -884.0 -673.9
44 0.00 2.81 0.00 1.41 8.38 159.21 7.21 300.75 0.1451 845.0 775.7
45 0.00 2.09 0.00 1.04 5.91 158.52 6.52 285.27 0.1176 882.0 636.0
46 0.00 0.54 0.00 0.27 7.84 158.33 6.33 300.48 0.1274 -756.0 -650.8
47 0.00 1.54 0.00 0.77 7.71 158.20 6.21 300.14 0.1244 -863.0 -640.0
48 0.00 1.54 0.00 0.77 8.79 157.79 5.79 309.02 0.1289 894.0 662.1
49 0.00 3.63 0.00 1.81 9.12 157.67 5.67 311.60 0.1311 890.0 782.3
50 0.00 1.72 0.00 0.86 8.57 157.54 5.54 308.92 0.1233 863.0 679.5
51 0.00 2.00 0.00 1.00 8.46 157.23 5.23 309.75 0.1178 951.0 813.1
52 0.00 1.27 0.00 0.63 9.83 156.84 4.85 319.91 0.1299 744.0 558.4
53 0.00 2.00 0.00 1.00 9.29 156.31 4.31 320.28 0.1167 1091.0 948.1
54 0.00 3.72 0.00 1.86 9.59 156.19 4.19 322.71 0.1195 833.0 727.9
55 0.00 1.91 0.00 0.95 8.89 155.87 3.87 321.00 0.1066 1075.0 831.8
56 0.00 1.36 0.00 0.68 9.23 155.85 3.85 323.12 0.1109 971.0 839.1
57 0.00 1.27 0.00 0.63 8.86 155.66 3.66 322.42 0.1038 1020.0 780.4
58 0.00 1.18 0.00 0.59 5.72 155.60 3.60 293.51 0.0684 769.0 588.0
59 0.00 1.45 0.00 0.72 9.41 155.51 3.51 326.57 0.1101 979.0 692.6
60 0.00 1.54 0.00 0.77 12.52 154.27 2.27 345.09 0.1509 882.0 681.8
61 0.00 2.18 0.00 1.09 12.58 154.05 2.05 346.56 0.1511 903.0 694.9
62 0.00 1.45 0.00 0.72 6.13 153.85 1.85 316.69 0.0471 867.0 774.5
63 0.00 1.45 0.00 0.72 5.82 153.67 1.67 314.84 0.0410 909.0 724.7
64 0.00 1.09 0.00 0.54 11.42 151.80 -0.20 1.52 0.1267 851.0 596.0
65 0.00 1.09 0.00 0.54 4.94 151.52 -0.48 31.61 0.0158 849.0 757.4
66 0.00 1.00 0.00 0.50 9.73 151.18 -0.81 8.23 0.0983 792.0 627.9
67 0.00 1.18 0.00 0.59 11.38 148.54 -3.46 25.21 0.1395 816.0 696.1


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
