SDO HMI 2014-07-13 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.63 | 21.07 | 7.45 | 18.27 | 5.88 | 206.77 | 55.33 | 274.27 | 0.8224 | -524.8 | -357.0 | |
|
previous
or next observation for the same group /

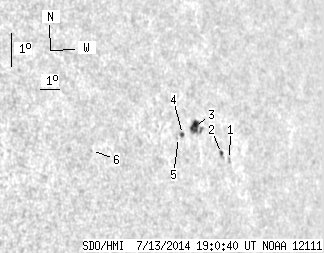

back to the solar disc SDO HMI 2014-07-13 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.72 | 5.07 | 208.39 | 56.95 | 273.33 | 0.8384 | -391.0 | -295.8 | |
| 0.91 | 3.54 | 0.81 | 3.16 | 5.28 | 207.97 | 56.53 | 273.57 | 0.8343 | -379.6 | -298.8 | |
| 6.63 | 11.89 | 5.72 | 10.28 | 6.19 | 206.62 | 55.18 | 274.64 | 0.8210 | -664.8 | -410.2 | |
| 1.09 | 2.18 | 0.92 | 1.85 | 5.99 | 205.95 | 54.50 | 274.38 | 0.8143 | -637.7 | -553.1 | |
| 0.00 | 0.91 | 0.00 | 0.77 | 5.91 | 205.72 | 54.28 | 274.28 | 0.8120 | -640.0 | -529.8 | |
| 0.00 | 0.64 | 0.00 | 0.49 | 5.77 | 201.34 | 49.90 | 274.02 | 0.7652 | 243.0 | 288.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
