SDO HMI 2014-07-13 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.88 | 412.20 | 113.09 | 656.00 | -7.74 | 222.05 | 71.17 | 260.46 | 0.9522 | 615.6 | 207.0 | |
|
previous
or next observation for the same group /

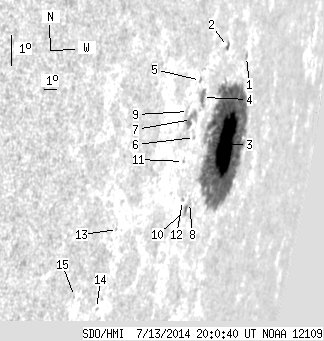

back to the solar disc SDO HMI 2014-07-13 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 2.93 | -5.15 | 223.37 | 72.48 | 263.31 | 0.9575 | 276.0 | 299.6 | |
| 1.00 | 2.81 | 1.52 | 4.29 | -4.71 | 221.39 | 70.50 | 263.56 | 0.9469 | -45.5 | -51.2 | |
| 68.88 | 375.72 | 111.57 | 605.05 | -7.80 | 222.28 | 71.40 | 260.43 | 0.9536 | 683.6 | 221.3 | |
| 0.00 | 8.71 | 0.00 | 12.23 | -6.15 | 219.54 | 68.65 | 261.81 | 0.9371 | -459.0 | -368.8 | |
| 0.00 | 1.45 | 0.00 | 2.00 | -5.60 | 219.22 | 68.34 | 262.35 | 0.9348 | -305.0 | -296.4 | |
| 0.00 | 1.00 | 0.00 | 1.39 | -7.37 | 219.22 | 68.34 | 260.48 | 0.9361 | 440.0 | 405.9 | |
| 0.00 | 11.25 | 0.00 | 15.34 | -6.78 | 218.79 | 67.91 | 261.05 | 0.9330 | 629.0 | 327.9 | |
| 0.00 | 1.27 | 0.00 | 1.82 | -9.41 | 219.57 | 68.68 | 258.37 | 0.9398 | 554.0 | 464.3 | |
| 0.00 | 0.73 | 0.00 | 0.97 | -6.51 | 218.47 | 67.58 | 261.29 | 0.9307 | 496.0 | 430.6 | |
| 0.00 | 3.54 | 0.00 | 5.03 | -9.64 | 219.33 | 68.44 | 258.08 | 0.9386 | 173.0 | 140.4 | |
| 0.00 | 0.82 | 0.00 | 1.11 | -8.06 | 218.55 | 67.66 | 259.64 | 0.9325 | -99.0 | -52.8 | |
| 0.00 | 0.91 | 0.00 | 1.26 | -9.30 | 218.93 | 68.04 | 258.38 | 0.9359 | -66.0 | -47.7 | |
| 0.00 | 0.64 | 0.00 | 0.73 | -9.89 | 214.21 | 63.33 | 256.98 | 0.9053 | -477.0 | -437.7 | |
| 0.00 | 1.09 | 0.00 | 1.26 | -12.33 | 213.71 | 62.82 | 254.22 | 0.9049 | 428.0 | 456.2 | |
| 0.00 | 0.54 | 0.00 | 0.59 | -11.84 | 212.04 | 61.15 | 254.41 | 0.8918 | -170.0 | -262.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
