SDO HMI 2014-07-13 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.44 | 21.23 | 7.41 | 18.77 | 5.85 | 206.98 | 56.10 | 274.24 | 0.8300 | -504.8 | -328.1 | |
|
previous
or next observation for the same group /

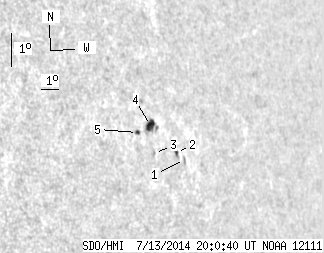

back to the solar disc SDO HMI 2014-07-13 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 2.25 | 5.04 | 208.40 | 57.51 | 273.31 | 0.8437 | -273.0 | -212.7 | |
| 1.00 | 2.81 | 0.91 | 2.55 | 5.28 | 207.97 | 57.09 | 273.58 | 0.8397 | -239.0 | -322.1 | |
| 0.00 | 1.45 | 0.00 | 1.28 | 5.33 | 206.75 | 55.87 | 273.60 | 0.8279 | -144.0 | -235.1 | |
| 6.44 | 12.34 | 5.64 | 10.82 | 6.19 | 206.66 | 55.78 | 274.64 | 0.8269 | -639.5 | -367.2 | |
| 1.00 | 2.18 | 0.86 | 1.87 | 6.02 | 205.93 | 55.04 | 274.42 | 0.8197 | -591.5 | -510.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
