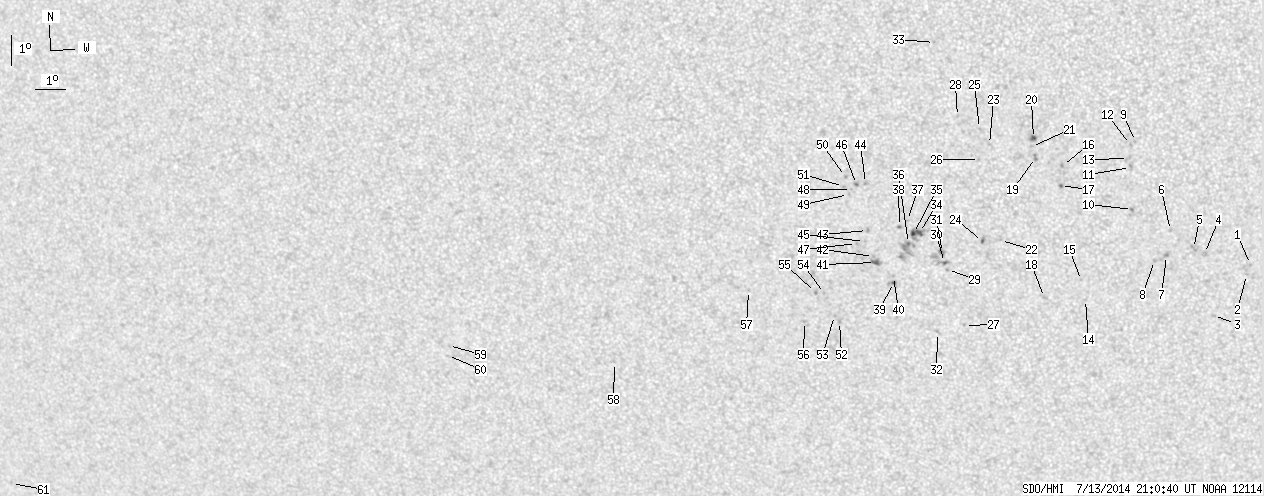

SDO HMI 2014-07-13 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.52 | 121.99 | 4.64 | 66.68 | -20.05 | 148.34 | -2.00 | 176.12 | 0.4201 | 227.1 | 271.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.60 | -20.96 | 157.97 | 7.64 | 196.30 | 0.4440 | 683.0 | 529.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.30 | 157.86 | 7.52 | 195.85 | 0.4485 | 645.0 | 495.3 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -22.68 | 156.83 | 6.50 | 193.02 | 0.4653 | 748.0 | 584.1 | |
| 0.00 | 3.18 | 0.00 | 1.74 | -20.58 | 156.44 | 6.11 | 193.39 | 0.4320 | 827.0 | 680.0 | |
| 0.00 | 2.63 | 0.00 | 1.44 | -20.40 | 156.08 | 5.74 | 192.71 | 0.4281 | 740.0 | 731.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -19.80 | 155.31 | 4.97 | 191.36 | 0.4161 | 724.0 | 502.6 | |
| 0.00 | 2.18 | 0.00 | 1.19 | -20.63 | 155.20 | 4.87 | 190.72 | 0.4288 | 862.0 | 743.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -20.80 | 154.82 | 4.48 | 189.82 | 0.4303 | 891.0 | 722.2 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -16.85 | 154.11 | 3.78 | 189.96 | 0.3659 | 800.0 | 643.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -19.09 | 154.06 | 3.73 | 188.83 | 0.4015 | 899.0 | 787.5 | |
| 0.00 | 2.63 | 0.00 | 1.41 | -17.70 | 153.97 | 3.63 | 189.20 | 0.3792 | 811.0 | 691.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -16.95 | 153.95 | 3.62 | 189.51 | 0.3671 | 833.0 | 676.9 | |
| 0.00 | 3.72 | 0.00 | 1.99 | -17.40 | 153.90 | 3.56 | 189.16 | 0.3743 | 613.0 | 648.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -22.10 | 152.58 | 2.25 | 184.69 | 0.4462 | 622.0 | 509.1 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -21.46 | 152.44 | 2.11 | 184.52 | 0.4360 | 608.0 | 493.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -17.62 | 151.79 | 1.46 | 183.73 | 0.3740 | 939.0 | 780.6 | |
| 0.36 | 1.18 | 0.19 | 0.63 | -18.28 | 151.73 | 1.40 | 183.46 | 0.3846 | 907.5 | 812.7 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -22.03 | 151.23 | 0.90 | 181.89 | 0.4439 | 779.0 | 598.8 | |
| 0.00 | 2.99 | 0.00 | 1.60 | -17.36 | 150.92 | 0.59 | 181.54 | 0.3690 | 954.0 | 791.8 | |
| 1.18 | 2.90 | 0.63 | 1.54 | -16.74 | 150.86 | 0.53 | 181.41 | 0.3588 | 1141.7 | 976.7 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -17.00 | 150.80 | 0.46 | 181.23 | 0.3631 | 878.0 | 572.3 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -20.11 | 149.79 | -0.54 | 178.77 | 0.4133 | 773.0 | 617.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -16.93 | 149.46 | -0.87 | 177.68 | 0.3622 | 692.0 | 520.4 | |
| 0.36 | 2.45 | 0.20 | 1.33 | -20.14 | 149.21 | -1.12 | 177.45 | 0.4141 | 937.2 | 807.3 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -16.41 | 149.14 | -1.19 | 176.76 | 0.3539 | 813.0 | 657.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -17.42 | 149.14 | -1.20 | 176.90 | 0.3705 | 752.0 | 642.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.98 | 148.59 | -1.74 | 176.49 | 0.4594 | 714.0 | 471.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -16.02 | 148.45 | -1.88 | 174.78 | 0.3484 | 703.0 | 554.0 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.08 | 148.06 | -2.27 | 175.04 | 0.4302 | 524.0 | 431.6 | |
| 0.36 | 4.45 | 0.20 | 2.43 | -20.85 | 147.97 | -2.37 | 174.79 | 0.4267 | 711.2 | 277.3 | |
| 0.00 | 3.36 | 0.00 | 1.83 | -20.51 | 147.91 | -2.43 | 174.58 | 0.4214 | 838.0 | 684.9 | |
| 0.00 | 2.45 | 0.00 | 1.37 | -23.23 | 147.69 | -2.64 | 174.74 | 0.4642 | 700.0 | 398.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -13.64 | 147.75 | -2.58 | 171.86 | 0.3105 | 773.0 | 601.0 | |
| 2.00 | 11.98 | 1.08 | 6.51 | -19.84 | 147.17 | -3.16 | 172.74 | 0.4122 | 1076.3 | 796.6 | |
| 1.63 | -34.00 | 0.89 | -34.00 | -19.88 | 146.98 | -3.36 | 172.31 | 0.4131 | 982.8 | 999999 | |
| 0.36 | 17.24 | 0.20 | 9.42 | -20.21 | 146.81 | -3.53 | 172.04 | 0.4188 | 878.0 | 366.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -19.44 | 146.79 | -3.54 | 171.73 | 0.4067 | 629.0 | 529.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -19.64 | 146.53 | -3.81 | 171.20 | 0.4105 | 905.0 | 728.8 | |
| 0.73 | 3.54 | 0.40 | 1.95 | -21.53 | 146.28 | -4.05 | 171.38 | 0.4405 | -812.5 | -662.5 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.32 | 146.29 | -4.05 | 171.32 | 0.4373 | -781.0 | -522.9 | |
| 1.54 | 5.54 | 0.85 | 3.04 | -20.85 | 145.71 | -4.62 | 169.91 | 0.4315 | -1014.8 | -761.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.65 | 145.65 | -4.68 | 169.69 | 0.4286 | -850.0 | -652.8 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -19.78 | 145.48 | -4.85 | 168.92 | 0.4155 | -726.0 | -639.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.22 | 145.47 | -4.86 | 168.06 | 0.3911 | -920.0 | -776.1 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -20.15 | 145.37 | -4.96 | 168.86 | 0.4216 | -540.0 | -390.6 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -18.26 | 145.18 | -5.16 | 167.39 | 0.3927 | -952.0 | -828.2 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -20.22 | 145.11 | -5.22 | 168.32 | 0.4235 | -774.0 | -641.4 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -18.42 | 145.01 | -5.32 | 167.10 | 0.3958 | -835.0 | -659.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.59 | 144.91 | -5.42 | 166.96 | 0.3988 | -765.0 | -629.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -18.00 | 144.83 | -5.50 | 166.41 | 0.3898 | -825.0 | -688.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -18.33 | 144.76 | -5.58 | 166.44 | 0.3953 | -586.0 | -516.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -22.86 | 144.45 | -5.89 | 168.26 | 0.4661 | -782.0 | -648.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.66 | 144.29 | -6.04 | 167.85 | 0.4635 | -801.0 | -695.6 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -21.91 | 143.99 | -6.34 | 166.88 | 0.4532 | -798.0 | -689.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.88 | 143.70 | -6.64 | 166.28 | 0.4538 | -1014.0 | -884.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.87 | 143.28 | -7.05 | 166.03 | 0.4702 | -737.0 | -628.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.83 | 141.48 | -8.85 | 161.93 | 0.4625 | -682.0 | -549.5 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -24.37 | 136.73 | -13.60 | 155.78 | 0.5242 | -559.0 | -489.7 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -23.90 | 131.01 | -19.32 | 147.07 | 0.5586 | -446.0 | -524.1 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -24.25 | 130.92 | -19.41 | 147.32 | 0.5634 | -137.0 | -258.0 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -29.46 | 112.38 | -37.95 | 135.28 | 0.7632 | -33.0 | -80.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
