SDO HMI 2014-07-13 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.53 | 20.98 | 5.91 | 18.81 | 5.97 | 206.46 | 56.68 | 274.39 | 0.8355 | -423.6 | -353.2 | |
|
previous
or next observation for the same group /

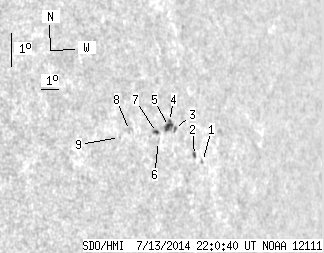

back to the solar disc SDO HMI 2014-07-13 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.38 | 5.01 | 208.45 | 58.67 | 273.31 | 0.8544 | -185.0 | -180.9 | |
| 0.82 | 2.18 | 0.76 | 2.04 | 5.22 | 208.01 | 58.23 | 273.54 | 0.8503 | -265.2 | -249.5 | |
| 0.54 | 10.17 | 0.50 | 9.18 | 6.11 | 207.00 | 57.22 | 274.56 | 0.8407 | -271.7 | -418.9 | |
| 0.27 | -3.00 | 0.25 | -3.00 | 6.34 | 206.75 | 56.97 | 274.83 | 0.8384 | -478.0 | 999999 | |
| 3.72 | -3.00 | 3.36 | -3.00 | 6.19 | 206.67 | 56.89 | 274.65 | 0.8376 | -650.3 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.56 | 5.77 | 206.04 | 56.26 | 274.14 | 0.8317 | -370.0 | -416.7 | |
| 1.18 | 2.36 | 1.04 | 2.09 | 6.05 | 205.98 | 56.20 | 274.47 | 0.8310 | -576.2 | -434.6 | |
| 0.00 | 3.27 | 0.00 | 2.79 | 6.20 | 204.53 | 54.75 | 274.63 | 0.8167 | -311.0 | -347.3 | |
| 0.00 | 0.91 | 0.00 | 0.77 | 6.02 | 203.97 | 54.19 | 274.39 | 0.8111 | -188.0 | -263.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
