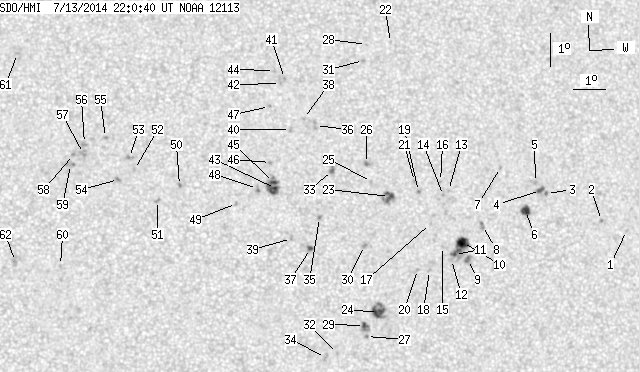

SDO HMI 2014-07-13 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.86 | 191.21 | 18.10 | 98.31 | 7.30 | 164.24 | 14.46 | 284.95 | 0.2588 | -244.6 | -190.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.54 | 6.60 | 173.53 | 23.75 | 276.84 | 0.4047 | -695.0 | -597.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 6.93 | 172.71 | 22.93 | 277.85 | 0.3921 | -815.0 | -697.3 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 7.80 | 170.93 | 21.16 | 280.73 | 0.3655 | -819.0 | -717.4 | |
| 1.72 | 3.36 | 0.92 | 1.78 | 7.90 | 170.74 | 20.96 | 281.07 | 0.3626 | -1013.4 | -794.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 8.15 | 170.59 | 20.81 | 281.82 | 0.3609 | -874.0 | -707.0 | |
| 5.45 | 7.44 | 2.88 | 3.94 | 7.30 | 170.22 | 20.44 | 279.62 | 0.3528 | -1017.6 | -657.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 8.63 | 169.47 | 19.69 | 283.76 | 0.3444 | -708.0 | -639.1 | |
| 0.00 | 3.18 | 0.00 | 1.67 | 6.88 | 168.79 | 19.02 | 278.92 | 0.3289 | -902.0 | -661.6 | |
| 0.00 | 4.54 | 0.00 | 2.37 | 5.85 | 168.30 | 18.52 | 275.91 | 0.3191 | -988.0 | -730.3 | |
| 9.08 | 23.69 | 4.74 | 12.36 | 6.38 | 168.13 | 18.35 | 277.60 | 0.3170 | -1078.6 | -674.7 | |
| 1.00 | -10.00 | 0.52 | -10.00 | 6.02 | 167.85 | 18.08 | 276.54 | 0.3119 | -1010.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 5.87 | 167.75 | 17.97 | 276.08 | 0.3101 | -379.0 | -346.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 7.97 | 167.74 | 17.96 | 282.80 | 0.3146 | -665.0 | -531.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 7.82 | 167.57 | 17.79 | 282.43 | 0.3114 | -908.0 | -756.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 6.27 | 167.48 | 17.70 | 277.47 | 0.3061 | -815.0 | -594.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 8.25 | 167.50 | 17.72 | 283.84 | 0.3115 | -703.0 | -584.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 6.98 | 167.12 | 17.34 | 279.94 | 0.3017 | -734.0 | -638.1 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 5.55 | 167.03 | 17.26 | 275.20 | 0.2978 | -879.0 | -663.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 7.96 | 166.77 | 16.99 | 283.38 | 0.2989 | -998.0 | -862.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 5.59 | 166.65 | 16.87 | 275.42 | 0.2915 | -738.0 | -583.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 8.27 | 166.66 | 16.88 | 284.48 | 0.2981 | -832.0 | -663.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 12.55 | 166.12 | 16.34 | 298.33 | 0.3134 | -745.0 | -533.5 | |
| 4.17 | 12.62 | 2.16 | 6.51 | 7.83 | 165.84 | 16.06 | 283.59 | 0.2832 | -1063.2 | -826.7 | |
| 7.17 | 17.33 | 3.69 | 8.92 | 4.31 | 165.38 | 15.60 | 270.98 | 0.2693 | 1091.7 | 794.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 8.30 | 165.28 | 15.50 | 285.68 | 0.2759 | -834.0 | -645.6 | |
| 0.00 | 2.54 | 0.00 | 1.31 | 8.86 | 165.14 | 15.37 | 287.75 | 0.2761 | -1110.0 | -826.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 3.58 | 164.98 | 15.20 | 268.21 | 0.2630 | -867.0 | -728.2 | |
| 0.00 | 0.54 | 0.00 | 0.28 | 12.50 | 165.34 | 15.56 | 299.31 | 0.3017 | 698.0 | 497.3 | |
| 1.45 | 6.35 | 0.75 | 3.26 | 3.92 | 164.92 | 15.15 | 269.49 | 0.2618 | -972.9 | -766.4 | |
| 0.00 | 2.45 | 0.00 | 1.26 | 6.36 | 164.99 | 15.21 | 278.77 | 0.2650 | 920.0 | 726.1 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 12.01 | 165.21 | 15.43 | 298.02 | 0.2962 | 886.0 | 699.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 3.08 | 164.06 | 14.28 | 266.01 | 0.2480 | -780.0 | -600.7 | |
| 0.00 | 3.99 | 0.00 | 2.05 | 8.66 | 164.05 | 14.27 | 288.19 | 0.2577 | -1094.0 | -861.0 | |
| 0.00 | 3.63 | 0.00 | 1.85 | 2.97 | 163.68 | 13.90 | 265.40 | 0.2417 | -864.0 | -701.5 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 7.24 | 163.59 | 13.81 | 283.10 | 0.2442 | -1040.0 | -810.3 | |
| 0.00 | 3.90 | 0.00 | 2.00 | 10.05 | 163.57 | 13.79 | 293.90 | 0.2579 | 678.0 | 644.3 | |
| 1.18 | 2.45 | 0.60 | 1.25 | 6.30 | 163.28 | 13.50 | 279.46 | 0.2362 | 977.7 | 853.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 10.27 | 163.20 | 13.42 | 295.26 | 0.2536 | 848.0 | 713.4 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 6.61 | 162.69 | 12.91 | 281.21 | 0.2272 | -829.0 | -625.4 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 9.94 | 162.77 | 12.99 | 294.71 | 0.2449 | 865.0 | 675.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 11.51 | 162.65 | 12.87 | 300.59 | 0.2547 | 1012.0 | 832.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 11.36 | 162.51 | 12.74 | 300.31 | 0.2515 | 688.0 | 577.9 | |
| 1.82 | 17.70 | 0.92 | 9.00 | 8.15 | 162.23 | 12.45 | 288.29 | 0.2258 | -1090.8 | -905.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 11.76 | 162.34 | 12.56 | 302.04 | 0.2524 | 823.0 | 668.7 | |
| 1.82 | -43.00 | 0.92 | -43.00 | 8.33 | 162.17 | 12.39 | 289.15 | 0.2258 | -1138.8 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 8.94 | 162.10 | 12.32 | 291.82 | 0.2281 | -932.0 | -753.3 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 10.66 | 162.13 | 12.36 | 298.49 | 0.2403 | -675.0 | -570.5 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 8.15 | 161.66 | 11.88 | 289.09 | 0.2167 | -835.0 | -786.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 7.71 | 160.99 | 11.21 | 288.00 | 0.2035 | -809.0 | -590.8 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 8.28 | 159.22 | 9.44 | 293.97 | 0.1785 | 878.0 | 756.2 | |
| 0.00 | 2.36 | 0.00 | 1.19 | 7.83 | 158.53 | 8.75 | 293.09 | 0.1646 | -957.0 | -699.3 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 8.79 | 157.83 | 8.05 | 300.25 | 0.1610 | 821.0 | 573.9 | |
| 0.00 | 2.45 | 0.00 | 1.23 | 9.16 | 157.69 | 7.91 | 302.68 | 0.1621 | 941.0 | 782.3 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 8.49 | 157.33 | 7.55 | 300.13 | 0.1510 | 1122.0 | 859.5 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 9.78 | 156.95 | 7.17 | 308.46 | 0.1579 | 902.0 | 768.2 | |
| 0.00 | 3.72 | 0.00 | 1.86 | 9.60 | 156.30 | 6.52 | 310.21 | 0.1472 | 899.0 | 728.6 | |
| 0.00 | 4.63 | 0.00 | 2.32 | 9.29 | 156.26 | 6.48 | 308.72 | 0.1434 | 1100.0 | 853.7 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 9.27 | 155.95 | 6.17 | 309.92 | 0.1389 | 1054.0 | 846.4 | |
| 0.00 | 4.17 | 0.00 | 2.09 | 8.96 | 155.85 | 6.07 | 308.62 | 0.1343 | 883.0 | 906.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 5.88 | 155.49 | 5.72 | 286.72 | 0.1039 | 780.0 | 612.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 12.38 | 154.26 | 4.48 | 331.81 | 0.1624 | 871.0 | 724.8 | |
| 0.00 | 5.45 | 0.00 | 2.71 | 6.01 | 154.11 | 4.33 | 293.01 | 0.0820 | 971.0 | 716.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
