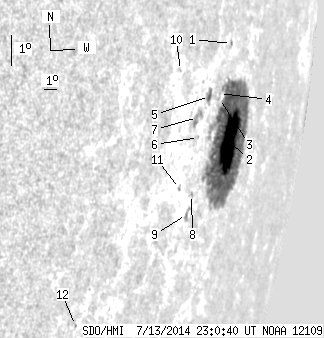

SDO HMI 2014-07-13 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.72 | 378.68 | 112.72 | 660.81 | -7.75 | 222.05 | 72.82 | 260.65 | 0.9605 | 535.0 | 208.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-13 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 2.26 | -4.66 | 221.38 | 72.16 | 263.78 | 0.9557 | -65.0 | -32.5 | |
| 61.27 | 347.45 | 108.97 | 613.94 | -7.78 | 222.27 | 73.04 | 260.64 | 0.9617 | 608.6 | 216.2 | |
| 0.00 | 2.18 | 0.00 | 3.50 | -6.31 | 220.67 | 71.45 | 261.98 | 0.9529 | 512.0 | 300.9 | |
| 0.00 | 0.73 | 0.00 | 1.17 | -6.15 | 220.62 | 71.39 | 262.14 | 0.9526 | 77.0 | 228.0 | |
| 2.45 | 6.63 | 3.75 | 10.14 | -6.18 | 219.68 | 70.45 | 262.00 | 0.9475 | -412.8 | -337.6 | |
| 0.00 | 1.00 | 0.00 | 1.49 | -7.40 | 219.07 | 69.85 | 260.64 | 0.9450 | 483.0 | 449.9 | |
| 0.00 | 10.35 | 0.00 | 15.21 | -6.76 | 218.77 | 69.54 | 261.27 | 0.9428 | 493.0 | 332.8 | |
| 0.00 | 1.72 | 0.00 | 2.62 | -9.18 | 219.15 | 69.92 | 258.78 | 0.9467 | -98.0 | 28.3 | |
| 0.00 | 4.81 | 0.00 | 7.29 | -9.79 | 218.97 | 69.75 | 258.11 | 0.9462 | 177.0 | 128.0 | |
| 0.00 | 0.27 | 0.00 | 0.36 | -5.18 | 216.90 | 67.67 | 262.71 | 0.9303 | -98.0 | -114.0 | |
| 0.00 | 1.18 | 0.00 | 1.69 | -8.91 | 217.97 | 68.75 | 258.90 | 0.9398 | -378.0 | -328.2 | |
| 0.00 | 1.00 | 0.00 | 1.14 | -12.77 | 211.70 | 62.47 | 253.66 | 0.9030 | -229.0 | -241.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
