SDO HMI 2014-07-13 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.45 | 21.70 | 5.03 | 19.72 | 5.92 | 206.38 | 57.16 | 274.35 | 0.8399 | -346.8 | -334.2 | |
|
previous
or next observation for the same group /

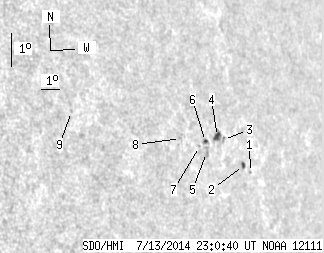

back to the solar disc SDO HMI 2014-07-13 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.96 | 4.98 | 208.44 | 59.21 | 273.29 | 0.8593 | -50.0 | -127.2 | |
| 1.36 | 2.81 | 1.30 | 2.68 | 5.22 | 208.05 | 58.83 | 273.55 | 0.8558 | -346.7 | -284.2 | |
| 0.00 | 1.91 | 0.00 | 1.76 | 6.08 | 207.02 | 57.80 | 274.53 | 0.8461 | -327.0 | -314.1 | |
| 3.18 | 6.44 | 2.91 | 5.90 | 6.19 | 206.69 | 57.47 | 274.66 | 0.8430 | -629.6 | -490.8 | |
| 0.00 | 4.36 | 0.00 | 3.92 | 5.74 | 205.99 | 56.77 | 274.11 | 0.8365 | -202.0 | -330.8 | |
| 0.91 | 2.27 | 0.82 | 2.04 | 6.08 | 205.99 | 56.77 | 274.51 | 0.8364 | -535.8 | -498.8 | |
| 0.00 | 0.73 | 0.00 | 0.65 | 5.95 | 205.63 | 56.41 | 274.35 | 0.8330 | -231.0 | -275.8 | |
| 0.00 | 1.36 | 0.00 | 1.18 | 6.25 | 204.64 | 55.41 | 274.70 | 0.8233 | -519.0 | -400.3 | |
| 0.00 | 0.82 | 0.00 | 0.63 | 7.40 | 199.26 | 50.04 | 276.13 | 0.7667 | 226.0 | 293.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
