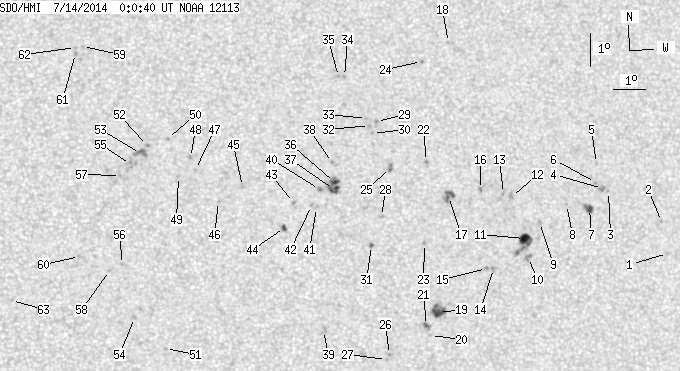

SDO HMI 2014-07-14 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.05 | 175.06 | 14.57 | 90.25 | 7.28 | 163.55 | 14.88 | 284.52 | 0.2657 | -126.6 | -169.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-14 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.94 | 5.86 | 172.92 | 24.25 | 274.94 | 0.4118 | -695.0 | -439.3 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 6.85 | 172.77 | 24.10 | 277.35 | 0.4105 | -840.0 | -658.1 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 7.81 | 171.05 | 22.38 | 280.26 | 0.3850 | -694.0 | -532.8 | |
| 0.00 | 3.27 | 0.00 | 1.75 | 7.91 | 170.86 | 22.19 | 280.58 | 0.3821 | -1016.0 | -882.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 8.68 | 170.71 | 22.03 | 282.64 | 0.3817 | -641.0 | -519.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 8.10 | 170.64 | 21.97 | 281.16 | 0.3791 | -823.0 | -694.8 | |
| 3.63 | 6.26 | 1.94 | 3.34 | 7.31 | 170.40 | 21.72 | 279.17 | 0.3735 | -1032.7 | -763.8 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 7.45 | 169.64 | 20.97 | 279.82 | 0.3617 | -784.0 | -704.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 6.93 | 168.73 | 20.06 | 278.66 | 0.3459 | -822.0 | -638.3 | |
| 0.00 | 4.81 | 0.00 | 2.53 | 5.87 | 168.33 | 19.66 | 275.67 | 0.3377 | -894.0 | -768.5 | |
| 7.17 | 19.33 | 3.77 | 10.17 | 6.45 | 168.22 | 19.55 | 277.43 | 0.3368 | -1072.3 | -797.1 | |
| 0.00 | 2.90 | 0.00 | 1.53 | 7.75 | 167.86 | 19.19 | 281.40 | 0.3336 | -786.0 | -685.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 7.84 | 167.60 | 18.93 | 281.83 | 0.3298 | -862.0 | -765.2 | |
| 0.00 | 3.09 | 0.00 | 1.61 | 5.57 | 167.18 | 18.51 | 274.96 | 0.3186 | -1053.0 | -796.7 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 5.57 | 166.96 | 18.29 | 275.02 | 0.3148 | -919.0 | -814.8 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 7.98 | 166.86 | 18.19 | 282.66 | 0.3182 | -975.0 | -789.7 | |
| 0.00 | 8.62 | 0.00 | 4.48 | 7.79 | 165.82 | 17.15 | 282.68 | 0.3007 | -1204.0 | -931.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 12.51 | 166.09 | 17.42 | 296.80 | 0.3288 | -829.0 | -610.1 | |
| 6.63 | 13.80 | 3.43 | 7.14 | 4.27 | 165.38 | 16.71 | 270.81 | 0.2880 | 1071.2 | 848.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 3.57 | 165.11 | 16.44 | 268.34 | 0.2838 | -784.0 | -623.0 | |
| 0.91 | 4.36 | 0.47 | 2.25 | 3.88 | 164.99 | 16.32 | 269.42 | 0.2816 | -948.7 | -736.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 8.88 | 165.16 | 16.49 | 286.74 | 0.2941 | -1052.0 | -877.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 6.38 | 165.00 | 16.32 | 278.30 | 0.2835 | 955.0 | 737.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 11.94 | 165.17 | 16.50 | 296.33 | 0.3114 | 739.0 | 635.6 | |
| 0.00 | 3.81 | 0.00 | 1.96 | 8.72 | 164.00 | 15.33 | 287.26 | 0.2748 | -1011.0 | -769.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 3.02 | 163.80 | 15.13 | 266.00 | 0.2624 | -935.0 | -703.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 2.87 | 163.70 | 15.03 | 265.39 | 0.2610 | -882.0 | -735.2 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 7.23 | 163.65 | 14.98 | 282.13 | 0.2635 | -914.0 | -717.9 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 10.13 | 163.62 | 14.95 | 292.59 | 0.2762 | 923.0 | 723.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 9.77 | 163.47 | 14.80 | 291.52 | 0.2718 | 726.0 | 580.2 | |
| 0.64 | 1.82 | 0.33 | 0.93 | 6.35 | 163.31 | 14.64 | 278.99 | 0.2554 | 998.4 | 765.2 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 10.02 | 163.39 | 14.72 | 292.48 | 0.2719 | 901.0 | 699.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 10.23 | 163.30 | 14.63 | 293.34 | 0.2719 | 825.0 | 628.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 11.53 | 162.66 | 13.99 | 298.68 | 0.2712 | 1009.0 | 750.0 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 11.54 | 162.47 | 13.80 | 299.01 | 0.2684 | 922.0 | 717.3 | |
| 2.63 | 16.25 | 1.34 | 8.30 | 8.30 | 162.20 | 13.53 | 287.56 | 0.2439 | -1078.6 | -852.9 | |
| 4.99 | -36.00 | 2.55 | -36.00 | 8.08 | 162.16 | 13.49 | 286.75 | 0.2423 | -1069.5 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 8.91 | 162.16 | 13.49 | 290.00 | 0.2463 | -837.0 | -746.9 | |
| 0.00 | 4.18 | 0.00 | 2.12 | 3.79 | 161.74 | 13.06 | 268.62 | 0.2266 | -666.0 | -475.5 | |
| 0.00 | 2.63 | 0.00 | 1.34 | 8.09 | 161.72 | 13.05 | 287.28 | 0.2351 | -1130.0 | -905.6 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 7.54 | 161.61 | 12.93 | 285.12 | 0.2309 | -771.0 | -668.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 7.61 | 161.45 | 12.78 | 285.55 | 0.2286 | -907.0 | -735.9 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 7.71 | 160.89 | 12.22 | 286.63 | 0.2198 | -974.0 | -802.3 | |
| 1.45 | 2.90 | 0.74 | 1.47 | 6.95 | 160.58 | 11.91 | 283.54 | 0.2117 | 899.1 | 683.3 | |
| 0.00 | 2.27 | 0.00 | 1.15 | 8.22 | 159.30 | 10.63 | 291.30 | 0.1968 | 832.0 | 641.8 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 7.77 | 158.54 | 9.87 | 290.42 | 0.1820 | -623.0 | -536.3 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 8.76 | 157.85 | 9.18 | 296.98 | 0.1776 | 798.0 | 649.1 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 9.13 | 157.70 | 9.03 | 299.21 | 0.1783 | 1021.0 | 782.6 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 8.55 | 157.31 | 8.64 | 297.25 | 0.1679 | 943.0 | 725.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 9.72 | 157.00 | 8.33 | 304.13 | 0.1732 | 785.0 | 705.5 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 3.32 | 156.82 | 8.15 | 263.99 | 0.1430 | 816.0 | 579.5 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 9.51 | 156.37 | 7.70 | 305.15 | 0.1623 | 980.0 | 820.9 | |
| 0.00 | 7.90 | 0.00 | 3.96 | 9.27 | 156.15 | 7.47 | 304.67 | 0.1568 | 936.0 | 886.3 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 4.27 | 155.88 | 7.20 | 270.73 | 0.1256 | 833.0 | 647.8 | |
| 0.00 | 9.17 | 0.00 | 4.59 | 8.94 | 155.83 | 7.15 | 303.98 | 0.1491 | 661.0 | 736.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 5.89 | 155.53 | 6.85 | 284.08 | 0.1230 | 798.0 | 589.5 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 8.60 | 155.51 | 6.84 | 303.22 | 0.1414 | 837.0 | 706.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 5.71 | 155.12 | 6.45 | 283.38 | 0.1154 | 899.0 | 698.0 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.57 | 154.41 | 5.74 | 326.18 | 0.1762 | 672.0 | 519.9 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 6.14 | 154.21 | 5.53 | 289.56 | 0.1022 | 761.0 | 587.6 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 12.35 | 154.19 | 5.51 | 326.53 | 0.1710 | 1019.0 | 820.8 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.54 | 154.19 | 5.52 | 327.11 | 0.1737 | 795.0 | 595.0 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 4.82 | 152.11 | 3.43 | 280.17 | 0.0609 | 819.0 | 569.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
