SDO HMI 2014-07-14 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.42 | 184.46 | 15.80 | 95.51 | 7.34 | 164.04 | 15.92 | 284.02 | 0.2823 | -149.1 | -190.8 | |
|
previous
or next observation for the same group /

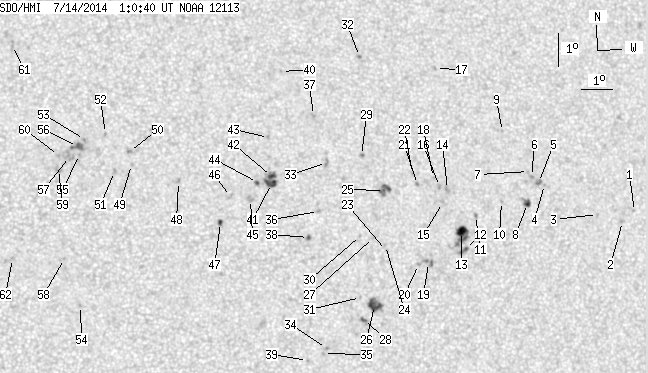

back to the solar disc SDO HMI 2014-07-14 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.40 | 6.91 | 174.06 | 25.94 | 277.13 | 0.4394 | -498.0 | -485.8 | |
| 0.00 | 2.27 | 0.00 | 1.25 | 6.62 | 173.63 | 25.51 | 276.54 | 0.4324 | -695.0 | -582.3 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 6.86 | 172.80 | 24.68 | 277.25 | 0.4196 | -723.0 | -620.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 7.83 | 171.07 | 22.95 | 280.09 | 0.3940 | -597.0 | -557.5 | |
| 0.00 | 3.90 | 0.00 | 2.10 | 7.90 | 170.88 | 22.76 | 280.33 | 0.3911 | -967.0 | -783.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 8.09 | 170.65 | 22.53 | 280.89 | 0.3880 | -705.0 | -621.6 | |
| 0.00 | 0.36 | 0.00 | 0.19 | 8.24 | 170.56 | 22.44 | 281.33 | 0.3869 | -805.0 | -636.0 | |
| 2.72 | 6.08 | 1.46 | 3.26 | 7.27 | 170.47 | 22.35 | 278.84 | 0.3834 | -945.5 | -758.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 9.49 | 169.78 | 21.66 | 284.92 | 0.3783 | -615.0 | -493.9 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 7.35 | 169.62 | 21.50 | 279.33 | 0.3699 | -785.0 | -600.9 | |
| 0.00 | 2.18 | 0.00 | 1.15 | 6.95 | 168.74 | 20.62 | 278.51 | 0.3550 | -676.0 | -571.3 | |
| 0.64 | 5.54 | 0.34 | 2.92 | 5.92 | 168.37 | 20.25 | 275.68 | 0.3474 | -838.3 | -650.7 | |
| 6.99 | 18.16 | 3.69 | 9.58 | 6.47 | 168.26 | 20.14 | 277.30 | 0.3464 | -1070.4 | -831.2 | |
| 0.00 | 3.27 | 0.00 | 1.72 | 7.77 | 167.86 | 19.74 | 281.18 | 0.3426 | -828.0 | -707.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 7.37 | 167.68 | 19.56 | 280.12 | 0.3387 | -737.0 | -539.1 | |
| 0.00 | 2.36 | 0.00 | 1.24 | 7.86 | 167.61 | 19.49 | 281.59 | 0.3388 | -826.0 | -703.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.48 | 167.70 | 19.58 | 291.67 | 0.3549 | 760.0 | 550.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 8.14 | 167.43 | 19.30 | 282.50 | 0.3367 | -634.0 | -529.1 | |
| 0.00 | 5.08 | 0.00 | 2.66 | 5.56 | 167.15 | 19.03 | 274.82 | 0.3271 | -834.0 | -881.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 5.50 | 166.83 | 18.71 | 274.71 | 0.3217 | -840.0 | -596.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 7.94 | 166.89 | 18.77 | 282.18 | 0.3275 | -967.0 | -786.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 8.28 | 166.75 | 18.63 | 283.29 | 0.3262 | -856.0 | -670.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 5.95 | 165.81 | 17.69 | 276.37 | 0.3054 | 792.0 | 553.9 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 6.11 | 165.78 | 17.66 | 276.88 | 0.3052 | 791.0 | 547.3 | |
| 0.00 | 10.62 | 0.00 | 5.53 | 7.78 | 165.82 | 17.70 | 282.30 | 0.3096 | -1223.0 | -914.4 | |
| 8.44 | 14.89 | 4.38 | 7.72 | 4.29 | 165.38 | 17.25 | 270.87 | 0.2971 | 1041.0 | 780.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 6.36 | 165.41 | 17.29 | 277.84 | 0.2994 | 745.0 | 604.2 | |
| 0.82 | 3.54 | 0.42 | 1.83 | 3.87 | 165.01 | 16.89 | 269.42 | 0.2912 | -879.2 | -680.5 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 8.87 | 165.13 | 17.01 | 286.26 | 0.3023 | -975.0 | -858.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 6.43 | 164.99 | 16.87 | 278.24 | 0.2927 | 805.0 | 561.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 4.54 | 164.93 | 16.81 | 271.74 | 0.2897 | -615.0 | -460.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 11.90 | 165.24 | 17.12 | 295.43 | 0.3203 | 869.0 | 680.6 | |
| 0.00 | 3.45 | 0.00 | 1.78 | 8.68 | 163.99 | 15.87 | 286.60 | 0.2833 | -815.0 | -640.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 3.01 | 163.82 | 15.70 | 266.12 | 0.2720 | -928.0 | -757.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 2.86 | 163.72 | 15.60 | 265.53 | 0.2706 | -859.0 | -669.2 | |
| 0.00 | 2.27 | 0.00 | 1.17 | 7.19 | 163.68 | 15.56 | 281.58 | 0.2728 | -1029.0 | -685.7 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 10.13 | 163.64 | 15.52 | 291.84 | 0.2851 | 900.0 | 663.4 | |
| 0.73 | 1.91 | 0.37 | 0.98 | 6.40 | 163.33 | 15.21 | 278.87 | 0.2651 | 949.2 | 748.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 2.66 | 163.21 | 15.09 | 264.58 | 0.2624 | -628.0 | -498.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 11.50 | 162.69 | 14.57 | 297.62 | 0.2794 | 781.0 | 637.0 | |
| 5.27 | 15.89 | 2.69 | 8.13 | 8.07 | 162.21 | 14.09 | 286.07 | 0.2520 | -1095.3 | -825.7 | |
| 2.54 | -41.00 | 1.30 | -41.00 | 8.29 | 162.22 | 14.10 | 286.88 | 0.2531 | -1105.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 9.48 | 162.18 | 14.05 | 291.41 | 0.2584 | -837.0 | -700.3 | |
| 0.91 | 1.63 | 0.46 | 0.83 | 8.11 | 161.77 | 13.65 | 286.67 | 0.2450 | -1005.0 | -802.0 | |
| 0.00 | 4.45 | 0.00 | 2.27 | 7.60 | 161.53 | 13.41 | 284.85 | 0.2389 | -768.0 | -705.7 | |
| 0.00 | 2.72 | 0.00 | 1.39 | 7.70 | 160.90 | 12.78 | 285.92 | 0.2290 | -758.0 | -619.1 | |
| 1.36 | 2.81 | 0.69 | 1.43 | 6.91 | 160.57 | 12.45 | 282.83 | 0.2204 | 868.5 | 682.4 | |
| 0.00 | 2.45 | 0.00 | 1.24 | 8.19 | 159.28 | 11.16 | 290.21 | 0.2051 | 885.0 | 681.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 8.73 | 157.83 | 9.71 | 295.54 | 0.1855 | 773.0 | 589.6 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 9.12 | 157.78 | 9.66 | 297.59 | 0.1877 | 894.0 | 676.1 | |
| 0.00 | 1.82 | 0.00 | 0.91 | 8.52 | 157.29 | 9.17 | 295.72 | 0.1757 | 777.0 | 718.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 9.68 | 157.04 | 8.92 | 302.17 | 0.1814 | 794.0 | 631.9 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 9.51 | 156.38 | 8.26 | 303.27 | 0.1702 | 921.0 | 807.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 4.45 | 156.16 | 8.04 | 271.93 | 0.1402 | 746.0 | 652.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 9.05 | 156.21 | 8.09 | 301.44 | 0.1637 | 857.0 | 691.1 | |
| 0.00 | 8.62 | 0.00 | 4.33 | 9.30 | 156.16 | 8.04 | 302.90 | 0.1650 | 1133.0 | 872.5 | |
| 0.00 | 6.99 | 0.00 | 3.51 | 8.99 | 155.90 | 7.78 | 302.12 | 0.1586 | 1009.0 | 775.8 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 5.88 | 155.69 | 7.57 | 282.78 | 0.1349 | 791.0 | 651.9 | |
| 0.00 | 4.27 | 0.00 | 2.14 | 8.60 | 155.55 | 7.43 | 301.07 | 0.1499 | 705.0 | 678.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.03 | 155.56 | 7.44 | 303.45 | 0.1539 | 857.0 | 712.6 | |
| 0.00 | 3.54 | 0.00 | 1.78 | 12.41 | 154.20 | 6.08 | 324.11 | 0.1773 | 889.0 | 666.5 | |
| 0.00 | 1.63 | 0.00 | 0.81 | 5.90 | 154.08 | 5.96 | 286.05 | 0.1080 | 937.0 | 700.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
