SDO HMI 2014-07-14 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.48 | 314.45 | 107.53 | 634.05 | -7.74 | 222.07 | 75.05 | 260.91 | 0.9705 | 483.3 | 198.4 | |
|
previous
or next observation for the same group /

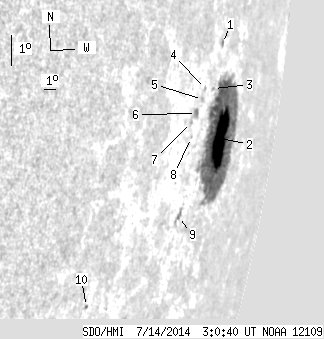

back to the solar disc SDO HMI 2014-07-14 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 4.10 | -4.74 | 221.26 | 74.24 | 263.91 | 0.9657 | 68.0 | 75.3 | |
| 52.48 | 293.74 | 107.53 | 599.10 | -7.75 | 222.24 | 75.22 | 260.92 | 0.9713 | 514.3 | 205.2 | |
| 0.00 | 1.18 | 0.00 | 2.15 | -6.09 | 220.70 | 73.67 | 262.46 | 0.9638 | 326.0 | 357.5 | |
| 0.00 | 1.27 | 0.00 | 2.21 | -6.02 | 219.81 | 72.79 | 262.42 | 0.9596 | -182.0 | -304.9 | |
| 0.00 | 1.73 | 0.00 | 2.97 | -6.35 | 219.61 | 72.59 | 262.06 | 0.9587 | -306.0 | -307.1 | |
| 0.00 | 5.18 | 0.00 | 8.66 | -6.75 | 219.14 | 72.11 | 261.59 | 0.9566 | 122.0 | 168.2 | |
| 0.00 | 1.36 | 0.00 | 2.24 | -7.00 | 218.73 | 71.70 | 261.28 | 0.9547 | 451.0 | 438.9 | |
| 0.00 | 0.27 | 0.00 | 0.45 | -7.48 | 218.91 | 71.89 | 260.81 | 0.9559 | 323.0 | 285.7 | |
| 0.00 | 6.45 | 0.00 | 10.81 | -9.92 | 218.76 | 71.73 | 258.25 | 0.9567 | 276.0 | 153.3 | |
| 0.00 | 1.09 | 0.00 | 1.36 | -12.28 | 212.06 | 65.04 | 254.69 | 0.9201 | -62.0 | -81.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
