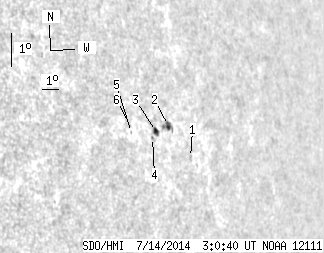

SDO HMI 2014-07-14 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.90 | 15.44 | 4.75 | 15.01 | 6.09 | 206.67 | 59.65 | 274.58 | 0.8628 | -459.0 | -397.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-14 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 1.85 | 5.21 | 208.08 | 61.06 | 273.61 | 0.8752 | -121.0 | -214.6 | |
| 2.63 | 7.81 | 2.58 | 7.64 | 6.27 | 206.89 | 59.87 | 274.79 | 0.8647 | -598.8 | -436.6 | |
| 2.27 | 4.09 | 2.17 | 3.91 | 6.13 | 206.13 | 59.11 | 274.62 | 0.8581 | -582.1 | -453.5 | |
| 0.00 | 0.91 | 0.00 | 0.86 | 5.97 | 205.86 | 58.84 | 274.41 | 0.8557 | -496.0 | -505.3 | |
| 0.00 | 0.27 | 0.00 | 0.25 | 6.19 | 204.67 | 57.65 | 274.65 | 0.8447 | -316.0 | -349.0 | |
| 0.00 | 0.54 | 0.00 | 0.50 | 6.41 | 204.65 | 57.63 | 274.91 | 0.8445 | -275.0 | -317.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
