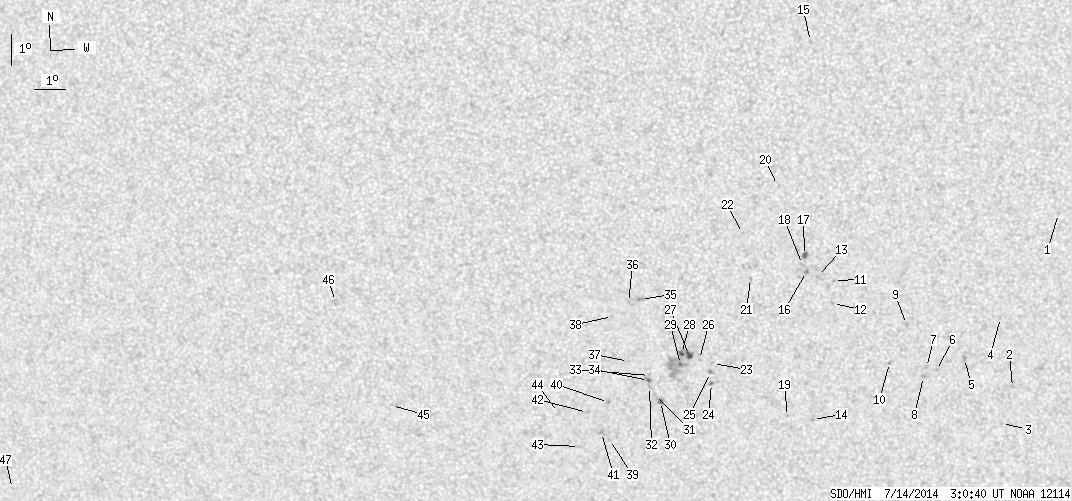

SDO HMI 2014-07-14 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.98 | 101.89 | 3.79 | 55.62 | -20.03 | 147.60 | 0.57 | 181.65 | 0.4195 | 165.9 | 150.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-14 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.54 | -15.48 | 158.91 | 11.89 | 210.61 | 0.3917 | 735.0 | 623.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -21.20 | 157.78 | 10.76 | 202.12 | 0.4642 | 683.0 | 491.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.42 | 157.50 | 10.48 | 200.60 | 0.4799 | 432.0 | 415.2 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -18.85 | 157.23 | 10.21 | 203.21 | 0.4272 | 847.0 | 719.7 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -20.20 | 156.13 | 9.11 | 199.79 | 0.4405 | 971.0 | 726.8 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -20.60 | 155.23 | 8.21 | 197.68 | 0.4418 | 730.0 | 584.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -20.49 | 154.89 | 7.87 | 197.08 | 0.4386 | 807.0 | 630.1 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -20.79 | 154.81 | 7.79 | 196.70 | 0.4428 | 783.0 | 679.4 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.05 | 154.17 | 7.15 | 196.61 | 0.4136 | 817.0 | 732.7 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -20.31 | 153.67 | 6.65 | 194.67 | 0.4306 | 793.0 | 647.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -17.57 | 151.77 | 4.75 | 192.00 | 0.3811 | 754.0 | 628.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -18.33 | 151.76 | 4.73 | 191.55 | 0.3930 | 891.0 | 722.5 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -17.44 | 151.25 | 4.23 | 190.80 | 0.3773 | 838.0 | 714.7 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -22.21 | 151.21 | 4.19 | 188.64 | 0.4521 | 648.0 | 545.9 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -9.90 | 150.91 | 3.89 | 195.31 | 0.2541 | 790.0 | 718.3 | |
| 0.00 | 2.36 | 0.00 | 1.26 | -17.27 | 150.90 | 3.88 | 189.99 | 0.3736 | 994.0 | 856.0 | |
| 1.36 | 3.27 | 0.72 | 1.74 | -16.75 | 150.82 | 3.80 | 190.06 | 0.3650 | 1058.7 | 836.7 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -17.04 | 150.76 | 3.74 | 189.76 | 0.3695 | 533.0 | 512.1 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -22.11 | 150.38 | 3.36 | 186.99 | 0.4487 | 762.0 | 626.7 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -14.47 | 149.93 | 2.91 | 188.72 | 0.3257 | 65.0 | 82.0 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -17.49 | 149.11 | 2.09 | 185.36 | 0.3733 | 799.0 | 654.0 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -16.02 | 148.84 | 1.82 | 185.04 | 0.3489 | 777.0 | 553.5 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -20.31 | 147.91 | 0.88 | 182.00 | 0.4173 | 684.0 | 625.3 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -20.98 | 147.88 | 0.86 | 181.87 | 0.4279 | 644.0 | 472.0 | |
| 0.00 | 2.54 | 0.00 | 1.39 | -20.61 | 147.84 | 0.82 | 181.83 | 0.4220 | 731.0 | 596.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.17 | 147.48 | 0.46 | 181.05 | 0.4149 | 567.0 | 460.7 | |
| 2.63 | 34.05 | 1.43 | 18.54 | -20.04 | 147.16 | 0.14 | 180.31 | 0.4127 | 1020.1 | 418.4 | |
| 1.27 | -27.00 | 0.69 | -27.00 | -19.97 | 146.90 | -0.12 | 179.72 | 0.4117 | 932.3 | 999999 | |
| 0.45 | -27.00 | 0.25 | -27.00 | -20.34 | 146.87 | -0.16 | 179.65 | 0.4175 | 885.8 | 999999 | |
| 0.73 | 3.81 | 0.40 | 2.10 | -21.58 | 146.21 | -0.81 | 178.26 | 0.4375 | -934.0 | -747.3 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.35 | 146.01 | -1.01 | 177.83 | 0.4338 | -762.0 | -605.7 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.08 | 145.85 | -1.17 | 177.45 | 0.4297 | -755.0 | -654.1 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -20.71 | 145.86 | -1.17 | 177.42 | 0.4238 | -732.0 | -523.0 | |
| 0.54 | 2.91 | 0.30 | 1.59 | -20.88 | 145.82 | -1.20 | 177.36 | 0.4265 | -981.5 | -852.3 | |
| 0.00 | 2.54 | 0.00 | 1.36 | -18.18 | 145.59 | -1.43 | 176.43 | 0.3835 | -833.0 | -657.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -18.28 | 145.20 | -1.82 | 175.50 | 0.3856 | -906.0 | -708.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.24 | 145.18 | -1.84 | 175.83 | 0.4170 | -848.0 | -615.6 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -18.74 | 144.68 | -2.34 | 174.34 | 0.3938 | -698.0 | -464.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.88 | 144.51 | -2.51 | 174.94 | 0.4593 | -505.0 | -571.3 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.62 | 144.50 | -2.52 | 174.65 | 0.4397 | -987.0 | -804.1 | |
| 0.00 | 4.09 | 0.00 | 2.27 | -22.64 | 144.25 | -2.77 | 174.36 | 0.4560 | -678.0 | -542.6 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.96 | 143.80 | -3.22 | 173.27 | 0.4462 | -924.0 | -697.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -23.12 | 143.51 | -3.51 | 173.01 | 0.4647 | -330.0 | -421.8 | |
| 0.00 | 2.63 | 0.00 | 1.46 | -21.97 | 142.85 | -4.17 | 171.31 | 0.4482 | -657.0 | -481.2 | |
| 0.00 | 0.27 | 0.00 | 0.15 | -21.77 | 137.33 | -9.69 | 160.34 | 0.4664 | -686.0 | -554.3 | |
| 0.00 | 3.18 | 0.00 | 1.74 | -18.31 | 135.72 | -11.30 | 154.04 | 0.4267 | -646.0 | -543.7 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -24.91 | 123.77 | -23.25 | 143.36 | 0.6023 | -587.0 | -518.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
