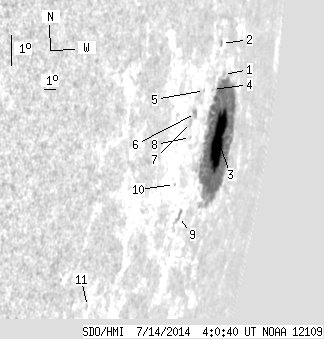

SDO HMI 2014-07-14 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.04 | 292.86 | 108.46 | 616.81 | -7.78 | 222.09 | 75.62 | 260.94 | 0.9729 | 338.4 | 186.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-14 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 2.98 | -5.72 | 221.90 | 75.43 | 263.02 | 0.9713 | 380.0 | 355.8 | |
| 0.00 | 1.73 | 0.00 | 3.37 | -4.72 | 221.31 | 74.84 | 263.99 | 0.9684 | 130.0 | 98.8 | |
| 51.04 | 276.33 | 108.46 | 587.67 | -7.79 | 222.23 | 75.76 | 260.94 | 0.9735 | 357.8 | 186.1 | |
| 0.00 | 0.27 | 0.00 | 0.52 | -6.10 | 220.73 | 74.26 | 262.51 | 0.9664 | 416.0 | 481.0 | |
| 0.00 | 0.73 | 0.00 | 1.30 | -6.06 | 219.82 | 73.35 | 262.44 | 0.9623 | -383.0 | -373.1 | |
| 0.00 | 4.45 | 0.00 | 7.67 | -6.72 | 219.11 | 72.63 | 261.68 | 0.9592 | 22.0 | 74.1 | |
| 0.00 | 2.00 | 0.00 | 3.39 | -6.98 | 218.79 | 72.32 | 261.37 | 0.9578 | 504.0 | 403.4 | |
| 0.00 | 0.27 | 0.00 | 0.47 | -7.45 | 218.88 | 72.40 | 260.90 | 0.9585 | 380.0 | 386.7 | |
| 0.00 | 4.63 | 0.00 | 8.06 | -9.90 | 218.82 | 72.35 | 258.35 | 0.9597 | 169.0 | 311.8 | |
| 0.00 | 0.27 | 0.00 | 0.45 | -8.84 | 217.88 | 71.40 | 259.33 | 0.9543 | -201.0 | -191.3 | |
| 0.00 | 0.73 | 0.00 | 0.93 | -12.25 | 212.04 | 65.56 | 254.82 | 0.9235 | -135.0 | -116.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
