SDO HMI 2014-07-14 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.09 | 14.26 | 4.02 | 14.09 | 6.12 | 206.66 | 60.19 | 274.63 | 0.8674 | -388.4 | -391.9 | |
|
previous
or next observation for the same group /

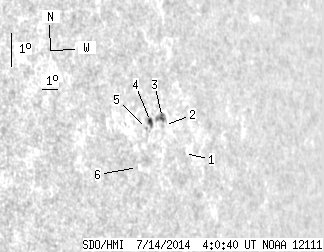

back to the solar disc SDO HMI 2014-07-14 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.75 | 5.08 | 208.09 | 61.62 | 273.49 | 0.8799 | -179.0 | -206.9 | |
| 0.00 | 1.00 | 0.00 | 1.00 | 6.02 | 206.98 | 60.51 | 274.51 | 0.8703 | -276.0 | -307.7 | |
| 1.73 | 7.17 | 1.72 | 7.13 | 6.27 | 206.91 | 60.43 | 274.80 | 0.8696 | -574.1 | -428.8 | |
| 2.36 | 4.18 | 2.30 | 4.07 | 6.19 | 206.15 | 59.68 | 274.70 | 0.8630 | -593.3 | -429.1 | |
| 0.00 | 0.91 | 0.00 | 0.88 | 5.99 | 205.87 | 59.40 | 274.46 | 0.8606 | -561.0 | -511.3 | |
| 0.00 | 0.27 | 0.00 | 0.26 | 4.85 | 205.14 | 58.67 | 273.09 | 0.8544 | 253.0 | 180.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
