SDO HMI 2014-07-14 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.98 | 155.67 | 15.77 | 81.46 | 7.40 | 164.30 | 17.83 | 282.44 | 0.3131 | -229.1 | -124.7 | |
|
previous
or next observation for the same group /

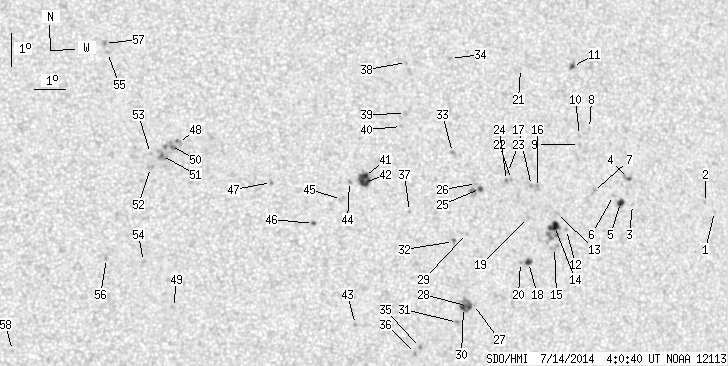

back to the solar disc SDO HMI 2014-07-14 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.56 | 6.85 | 173.82 | 27.35 | 276.73 | 0.4611 | -722.0 | -613.4 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 7.14 | 173.53 | 27.05 | 277.40 | 0.4569 | -689.0 | -510.5 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 7.16 | 171.03 | 24.56 | 277.95 | 0.4182 | 311.0 | 261.9 | |
| 0.73 | 3.54 | 0.40 | 1.93 | 7.96 | 170.95 | 24.47 | 279.88 | 0.4182 | -905.0 | -704.5 | |
| 2.82 | 4.36 | 1.53 | 2.37 | 7.23 | 170.63 | 24.16 | 278.22 | 0.4120 | -906.4 | -658.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 7.45 | 170.41 | 23.94 | 278.82 | 0.4088 | -665.0 | -463.5 | |
| 0.00 | 3.00 | 0.00 | 1.62 | 7.59 | 169.75 | 23.27 | 279.36 | 0.3986 | -644.0 | -637.9 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 9.52 | 169.74 | 23.27 | 284.13 | 0.4034 | -586.0 | -444.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 9.04 | 169.37 | 22.90 | 283.12 | 0.3962 | -763.0 | -608.0 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 9.32 | 169.39 | 22.92 | 283.79 | 0.3973 | -737.0 | -611.4 | |
| 1.09 | 3.72 | 0.59 | 2.02 | 11.44 | 169.32 | 22.85 | 289.00 | 0.4042 | -904.6 | -721.7 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 6.46 | 168.79 | 22.31 | 276.70 | 0.3815 | -570.0 | -484.1 | |
| 0.00 | 2.27 | 0.00 | 1.21 | 6.96 | 168.48 | 22.01 | 278.09 | 0.3773 | -592.0 | -494.1 | |
| 5.81 | 17.16 | 3.10 | 9.16 | 6.57 | 168.39 | 21.92 | 277.06 | 0.3753 | -1083.1 | -815.3 | |
| 0.00 | 3.90 | 0.00 | 2.08 | 5.93 | 168.36 | 21.89 | 275.36 | 0.3741 | -510.0 | -660.1 | |
| 0.00 | 2.91 | 0.00 | 1.55 | 7.77 | 167.89 | 21.42 | 280.44 | 0.3695 | -860.0 | -704.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 7.84 | 167.70 | 21.23 | 280.70 | 0.3666 | -947.0 | -784.2 | |
| 2.36 | 3.63 | 1.25 | 1.93 | 5.49 | 167.49 | 21.02 | 274.30 | 0.3596 | -970.2 | -828.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | 6.86 | 167.55 | 21.08 | 278.09 | 0.3622 | -874.0 | -644.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 5.50 | 167.23 | 20.76 | 274.35 | 0.3553 | -907.0 | -735.3 | |
| 0.00 | 0.73 | 0.00 | 0.39 | 11.43 | 167.58 | 21.10 | 290.22 | 0.3777 | 829.0 | 690.8 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 8.04 | 167.05 | 20.58 | 281.53 | 0.3567 | -895.0 | -684.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 8.26 | 166.93 | 20.46 | 282.19 | 0.3554 | -857.0 | -735.4 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 8.01 | 166.88 | 20.41 | 281.53 | 0.3540 | -964.0 | -856.3 | |
| 1.27 | 7.90 | 0.67 | 4.16 | 7.79 | 166.02 | 19.55 | 281.29 | 0.3395 | -893.3 | -805.5 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 7.95 | 165.90 | 19.43 | 281.81 | 0.3380 | -808.0 | -660.2 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 4.26 | 165.66 | 19.19 | 270.79 | 0.3292 | 418.0 | 511.8 | |
| 2.18 | 12.53 | 1.14 | 6.56 | 4.20 | 165.49 | 19.02 | 270.61 | 0.3265 | 988.7 | 842.1 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 6.43 | 165.50 | 19.03 | 277.43 | 0.3282 | 647.0 | 557.3 | |
| 2.91 | -28.00 | 1.52 | -28.00 | 4.18 | 165.33 | 18.86 | 270.52 | 0.3238 | 1092.9 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 3.73 | 165.13 | 18.66 | 269.09 | 0.3206 | -856.0 | -746.0 | |
| 0.00 | 2.27 | 0.00 | 1.19 | 6.20 | 165.07 | 18.60 | 276.84 | 0.3208 | 791.0 | 691.3 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 8.91 | 165.17 | 18.69 | 285.09 | 0.3294 | -1068.0 | -768.6 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 11.79 | 165.28 | 18.81 | 293.21 | 0.3449 | 776.0 | 623.2 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 2.99 | 163.92 | 17.45 | 266.50 | 0.3014 | -1022.0 | -825.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 2.81 | 163.76 | 17.29 | 265.86 | 0.2989 | -943.0 | -795.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 7.14 | 163.69 | 17.22 | 280.42 | 0.3000 | -925.0 | -723.9 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 11.70 | 163.84 | 17.36 | 294.51 | 0.3226 | 526.0 | 421.1 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 10.14 | 163.71 | 17.24 | 289.99 | 0.3117 | 731.0 | 598.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 9.75 | 163.56 | 17.08 | 288.92 | 0.3074 | 786.0 | 602.2 | |
| 4.27 | 14.08 | 2.20 | 7.26 | 8.24 | 162.29 | 15.82 | 285.07 | 0.2807 | -1144.6 | -773.1 | |
| 5.54 | -41.00 | 2.86 | -41.00 | 8.06 | 162.29 | 15.81 | 284.44 | 0.2798 | -1117.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 3.74 | 161.87 | 15.40 | 268.69 | 0.2662 | -805.0 | -682.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 8.10 | 161.81 | 15.34 | 284.97 | 0.2722 | -1016.0 | -829.3 | |
| 0.00 | 3.18 | 0.00 | 1.63 | 7.56 | 161.53 | 15.06 | 283.20 | 0.2657 | -716.0 | -573.1 | |
| 0.64 | 1.82 | 0.33 | 0.93 | 6.84 | 160.62 | 14.15 | 281.12 | 0.2484 | 891.4 | 716.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 8.12 | 159.33 | 12.86 | 287.51 | 0.2321 | 880.0 | 689.5 | |
| 0.00 | 2.91 | 0.00 | 1.47 | 9.39 | 156.45 | 9.98 | 297.99 | 0.1944 | 676.0 | 689.5 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 4.35 | 156.18 | 9.71 | 271.06 | 0.1689 | 746.0 | 619.4 | |
| 0.00 | 6.81 | 0.00 | 3.44 | 9.30 | 156.20 | 9.72 | 298.17 | 0.1899 | 961.0 | 856.7 | |
| 0.36 | 7.63 | 0.18 | 3.84 | 8.99 | 155.90 | 9.43 | 297.41 | 0.1832 | 1128.8 | 830.4 | |
| 0.00 | 2.91 | 0.00 | 1.46 | 8.63 | 155.55 | 9.08 | 296.44 | 0.1750 | 834.0 | 693.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.06 | 155.56 | 9.09 | 298.59 | 0.1785 | 728.0 | 560.8 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 5.77 | 155.27 | 8.80 | 280.27 | 0.1554 | 796.0 | 709.4 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 12.17 | 154.31 | 7.83 | 316.16 | 0.1932 | 828.0 | 673.0 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 5.87 | 154.13 | 7.66 | 282.43 | 0.1363 | 938.0 | 720.1 | |
| 0.00 | 2.54 | 0.00 | 1.28 | 12.45 | 154.22 | 7.75 | 317.48 | 0.1956 | 926.0 | 756.8 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 3.10 | 151.21 | 4.74 | 256.61 | 0.0852 | 738.0 | 525.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
