SDO HMI 2014-07-14 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.09 | 83.71 | 3.85 | 45.82 | -20.16 | 147.31 | 0.84 | 182.31 | 0.4248 | 234.4 | 184.4 | |
|
previous
or next observation for the same group /

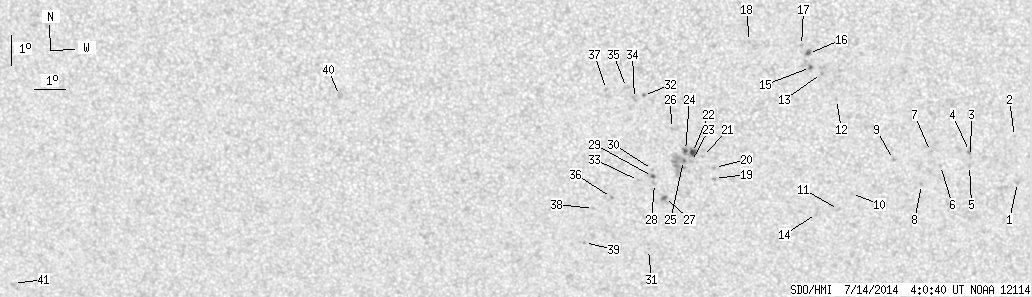

back to the solar disc SDO HMI 2014-07-14 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.81 | -21.18 | 157.83 | 11.36 | 203.23 | 0.4674 | 633.0 | 614.0 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -19.63 | 157.62 | 11.15 | 204.30 | 0.4443 | 628.0 | 423.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -20.28 | 156.21 | 9.74 | 200.97 | 0.4451 | 690.0 | 649.2 | |
| 0.00 | 2.54 | 0.00 | 1.40 | -20.11 | 156.17 | 9.69 | 201.03 | 0.4424 | 791.0 | 729.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -20.58 | 156.20 | 9.72 | 200.69 | 0.4494 | 734.0 | 588.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -20.57 | 155.24 | 8.77 | 198.82 | 0.4441 | 706.0 | 548.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.09 | 154.88 | 8.41 | 198.47 | 0.4354 | 726.0 | 641.3 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.20 | 154.65 | 8.18 | 197.18 | 0.4506 | 743.0 | 635.5 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -20.35 | 153.68 | 7.21 | 195.82 | 0.4336 | 858.0 | 714.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.48 | 152.35 | 5.88 | 192.40 | 0.4457 | 778.0 | 613.4 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -22.02 | 151.94 | 5.47 | 191.31 | 0.4526 | 654.0 | 576.2 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -18.33 | 151.76 | 5.28 | 192.84 | 0.3950 | 876.0 | 745.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -17.47 | 151.25 | 4.78 | 192.13 | 0.3797 | 849.0 | 756.9 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -22.15 | 151.22 | 4.75 | 189.80 | 0.4526 | 712.0 | 547.3 | |
| 0.54 | 1.63 | 0.29 | 0.87 | -17.27 | 150.89 | 4.42 | 191.36 | 0.3753 | 962.2 | 838.0 | |
| 0.82 | 2.72 | 0.44 | 1.45 | -16.81 | 150.82 | 4.35 | 191.43 | 0.3678 | 1056.1 | 896.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -16.55 | 150.59 | 4.12 | 190.98 | 0.3629 | 965.0 | 699.6 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -16.41 | 148.93 | 2.46 | 186.66 | 0.3565 | 795.0 | 693.6 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -20.94 | 147.85 | 1.38 | 183.02 | 0.4278 | 586.0 | 475.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -20.57 | 147.85 | 1.38 | 183.07 | 0.4219 | 805.0 | 610.1 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -20.20 | 147.46 | 0.98 | 182.23 | 0.4158 | 614.0 | 504.4 | |
| 2.82 | 7.36 | 1.53 | 4.00 | -20.07 | 147.13 | 0.66 | 181.50 | 0.4134 | 1049.3 | 762.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -20.37 | 147.10 | 0.63 | 181.41 | 0.4182 | 689.0 | 644.5 | |
| 0.91 | -22.00 | 0.49 | -22.00 | -20.00 | 146.90 | 0.43 | 180.99 | 0.4123 | 966.6 | 999999 | |
| 0.36 | 21.25 | 0.20 | 11.59 | -20.33 | 146.84 | 0.37 | 180.83 | 0.4176 | 851.5 | 263.4 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -19.27 | 146.45 | -0.02 | 179.95 | 0.4005 | 682.0 | 568.4 | |
| 0.91 | 3.54 | 0.50 | 1.95 | -21.58 | 146.22 | -0.25 | 179.46 | 0.4373 | -912.0 | -675.6 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -21.11 | 145.89 | -0.58 | 178.74 | 0.4299 | -750.0 | -670.9 | |
| 0.73 | 1.63 | 0.40 | 0.89 | -20.87 | 145.83 | -0.64 | 178.58 | 0.4262 | -899.6 | -733.0 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -20.64 | 145.83 | -0.64 | 178.57 | 0.4225 | -508.0 | -508.7 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -23.36 | 145.68 | -0.79 | 178.43 | 0.4652 | -617.0 | -435.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -18.17 | 145.55 | -0.92 | 177.71 | 0.3831 | -826.0 | -737.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.01 | 145.37 | -1.10 | 177.59 | 0.4286 | -809.0 | -597.8 | |
| 0.00 | 2.09 | 0.00 | 1.12 | -18.27 | 145.26 | -1.21 | 177.00 | 0.3849 | -946.0 | -678.5 | |
| 0.00 | 2.09 | 0.00 | 1.12 | -17.91 | 145.01 | -1.46 | 176.31 | 0.3793 | -657.0 | -569.6 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.58 | 144.48 | -1.99 | 175.75 | 0.4385 | -929.0 | -747.4 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -17.98 | 144.37 | -2.10 | 174.72 | 0.3812 | -873.0 | -703.0 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -21.96 | 143.88 | -2.59 | 174.57 | 0.4451 | -799.0 | -589.3 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -23.12 | 143.56 | -2.91 | 174.19 | 0.4637 | -813.0 | -644.2 | |
| 0.00 | 3.36 | 0.00 | 1.83 | -18.24 | 135.74 | -10.74 | 155.09 | 0.4219 | -643.0 | -448.1 | |
| 0.00 | 2.45 | 0.00 | 1.51 | -24.86 | 123.74 | -22.73 | 143.91 | 0.5975 | -267.0 | -380.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
