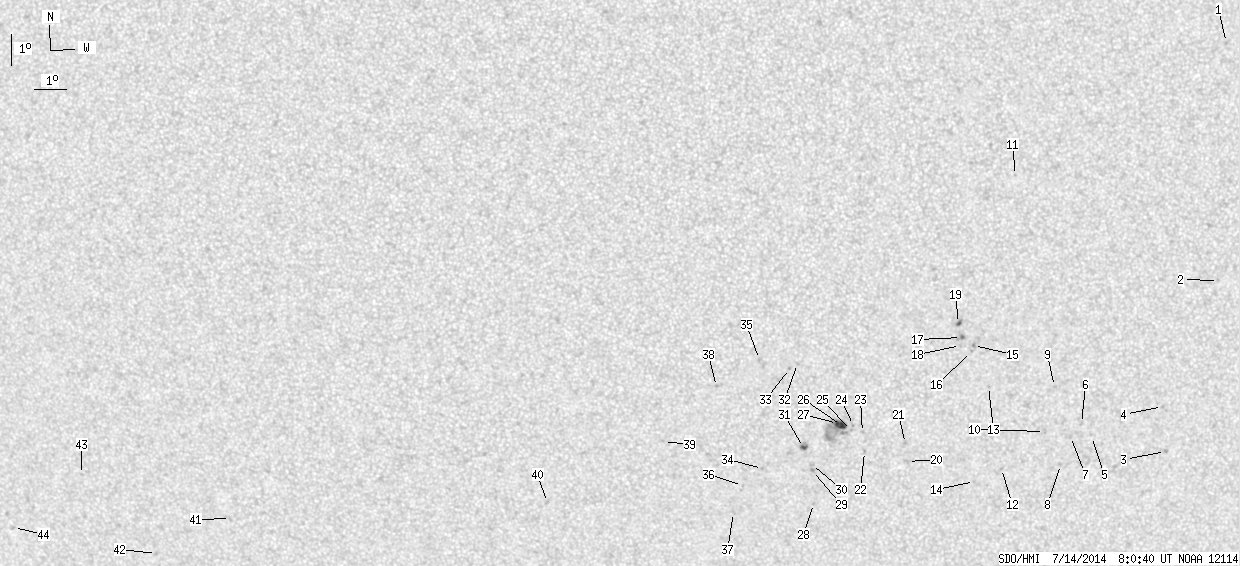

SDO HMI 2014-07-14 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.99 | 96.73 | 4.89 | 53.22 | -20.00 | 146.73 | 2.45 | 186.86 | 0.4315 | 248.8 | 224.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-14 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.76 | -7.96 | 158.92 | 14.64 | 230.13 | 0.3276 | 707.0 | 552.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -15.51 | 159.07 | 14.79 | 216.23 | 0.4180 | 716.0 | 555.5 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -21.13 | 157.78 | 13.50 | 207.03 | 0.4810 | 793.0 | 676.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -19.62 | 157.55 | 13.27 | 208.22 | 0.4590 | 674.0 | 580.9 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -20.58 | 155.26 | 10.98 | 203.07 | 0.4570 | 439.0 | 480.4 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -20.14 | 154.90 | 10.62 | 202.79 | 0.4485 | 694.0 | 613.3 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -20.57 | 154.57 | 10.29 | 201.76 | 0.4527 | 782.0 | 647.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -21.51 | 154.30 | 10.02 | 200.47 | 0.4647 | 760.0 | 558.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -18.89 | 153.94 | 9.66 | 202.03 | 0.4247 | 570.0 | 538.3 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -20.39 | 153.70 | 9.42 | 200.23 | 0.4452 | 566.0 | 398.8 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -12.04 | 152.40 | 8.11 | 206.27 | 0.3133 | 824.0 | 542.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -21.62 | 152.35 | 8.07 | 196.67 | 0.4566 | 711.0 | 590.4 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.87 | 151.79 | 7.50 | 197.50 | 0.4127 | 694.0 | 602.2 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -22.05 | 151.48 | 7.19 | 194.70 | 0.4594 | 679.0 | 560.7 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -17.51 | 151.24 | 6.96 | 197.34 | 0.3894 | 970.0 | 797.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -17.71 | 151.19 | 6.91 | 197.06 | 0.3922 | 736.0 | 541.8 | |
| 0.00 | 3.63 | 0.00 | 1.95 | -17.24 | 150.85 | 6.57 | 196.62 | 0.3835 | 1060.0 | 876.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.50 | 150.83 | 6.54 | 196.36 | 0.3874 | 687.0 | 598.7 | |
| 0.91 | 3.45 | 0.49 | 1.84 | -16.78 | 150.74 | 6.46 | 196.71 | 0.3759 | 1064.7 | 841.8 | |
| 0.00 | 2.63 | 0.00 | 1.45 | -21.35 | 149.24 | 4.95 | 190.55 | 0.4411 | 779.0 | 533.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -20.75 | 149.15 | 4.87 | 190.65 | 0.4315 | 800.0 | 658.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.01 | 147.82 | 3.54 | 187.69 | 0.4322 | 762.0 | 648.3 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -20.37 | 147.74 | 3.46 | 187.73 | 0.4220 | 802.0 | 554.5 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -20.13 | 147.44 | 3.16 | 187.14 | 0.4176 | 788.0 | 709.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.30 | 147.38 | 3.10 | 186.95 | 0.4202 | 710.0 | 555.8 | |
| 4.54 | 32.61 | 2.47 | 17.78 | -20.13 | 147.05 | 2.77 | 186.27 | 0.4169 | 1091.0 | 419.6 | |
| 1.91 | -26.00 | 1.04 | -26.00 | -20.06 | 146.92 | 2.64 | 185.99 | 0.4156 | 1092.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.76 | 146.17 | 1.89 | 183.83 | 0.4571 | -444.0 | -492.9 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -21.64 | 146.12 | 1.84 | 183.92 | 0.4394 | -898.0 | -781.5 | |
| 0.00 | 2.54 | 0.00 | 1.40 | -21.44 | 146.09 | 1.81 | 183.88 | 0.4362 | -788.0 | -664.6 | |
| 1.63 | 2.91 | 0.89 | 1.59 | -20.86 | 145.82 | 1.54 | 183.39 | 0.4269 | -973.1 | -806.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -18.06 | 145.61 | 1.32 | 183.31 | 0.3819 | -873.0 | -654.3 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -18.23 | 145.35 | 1.07 | 182.65 | 0.3843 | -924.0 | -763.8 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -21.57 | 144.48 | 0.20 | 180.43 | 0.4373 | -837.0 | -676.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -17.93 | 144.39 | 0.11 | 180.27 | 0.3791 | -869.0 | -622.4 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -22.14 | 143.83 | -0.46 | 179.05 | 0.4464 | -475.0 | -515.8 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -23.07 | 143.52 | -0.76 | 178.48 | 0.4610 | -678.0 | -554.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -18.82 | 143.00 | -1.28 | 176.91 | 0.3940 | -874.0 | -628.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.66 | 141.26 | -3.02 | 173.32 | 0.4257 | -726.0 | -599.7 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -22.75 | 137.36 | -6.92 | 166.23 | 0.4688 | -742.0 | -566.8 | |
| 0.00 | 1.73 | 0.00 | 1.02 | -23.47 | 126.52 | -17.76 | 148.79 | 0.5421 | -481.0 | -477.9 | |
| 0.00 | 1.73 | 0.00 | 1.05 | -24.75 | 123.70 | -20.58 | 146.40 | 0.5791 | -484.0 | -463.3 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -22.10 | 121.48 | -22.80 | 140.68 | 0.5689 | -88.0 | -113.8 | |
| 0.00 | 1.91 | 0.00 | 1.19 | -24.00 | 118.64 | -25.65 | 139.72 | 0.6138 | -655.0 | -566.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
