SDO HMI 2014-07-14 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.42 | 141.95 | 14.14 | 75.46 | 7.65 | 164.00 | 20.26 | 281.55 | 0.3521 | -198.6 | -10.6 | |
|
previous
or next observation for the same group /

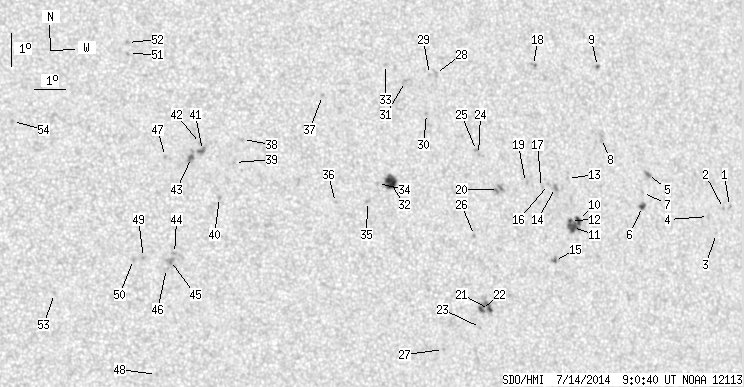

back to the solar disc SDO HMI 2014-07-14 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 1.04 | 6.98 | 173.86 | 30.12 | 276.59 | 0.5035 | -530.0 | -531.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 6.93 | 173.64 | 29.91 | 276.51 | 0.5002 | -704.0 | -561.2 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 6.18 | 173.34 | 29.61 | 275.03 | 0.4951 | -569.0 | -438.2 | |
| 0.00 | 1.82 | 0.00 | 1.03 | 6.70 | 173.10 | 29.36 | 276.12 | 0.4917 | -708.0 | -558.5 | |
| 0.64 | 3.63 | 0.35 | 2.03 | 8.06 | 171.06 | 27.33 | 279.32 | 0.4625 | -988.1 | -737.0 | |
| 1.91 | 3.54 | 1.06 | 1.97 | 7.09 | 170.82 | 27.08 | 277.27 | 0.4573 | -923.6 | -731.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 7.52 | 170.85 | 27.11 | 278.19 | 0.4584 | -758.0 | -604.4 | |
| 0.00 | 4.36 | 0.00 | 2.41 | 9.21 | 169.56 | 25.83 | 282.31 | 0.4420 | -742.0 | -609.6 | |
| 0.00 | 1.91 | 0.00 | 1.06 | 11.42 | 169.62 | 25.89 | 287.16 | 0.4497 | -928.0 | -812.9 | |
| 2.36 | 16.35 | 1.29 | 8.92 | 6.74 | 168.61 | 24.87 | 276.85 | 0.4225 | -853.7 | -813.5 | |
| 5.99 | -10.00 | 3.27 | -10.00 | 6.53 | 168.39 | 24.66 | 276.40 | 0.4189 | -1052.5 | 999999 | |
| 0.91 | -10.00 | 0.49 | -10.00 | 6.75 | 168.34 | 24.60 | 276.92 | 0.4182 | -1084.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 8.03 | 168.31 | 24.58 | 279.99 | 0.4200 | -776.0 | -632.0 | |
| 0.00 | 2.91 | 0.00 | 1.58 | 7.77 | 167.89 | 24.16 | 279.49 | 0.4129 | -1033.0 | -869.7 | |
| 0.54 | 3.72 | 0.30 | 2.02 | 5.54 | 167.74 | 24.01 | 274.09 | 0.4077 | -1085.8 | -836.7 | |
| 0.00 | 1.63 | 0.00 | 0.89 | 7.87 | 167.66 | 23.93 | 279.79 | 0.4094 | -799.0 | -682.4 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 7.78 | 167.42 | 23.69 | 279.66 | 0.4055 | -608.0 | -483.4 | |
| 0.00 | 3.27 | 0.00 | 1.78 | 11.52 | 167.44 | 23.70 | 288.62 | 0.4174 | 682.0 | 604.9 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 7.95 | 166.90 | 23.16 | 280.25 | 0.3975 | -408.0 | -518.7 | |
| 0.00 | 5.36 | 0.00 | 2.87 | 7.76 | 165.98 | 22.25 | 280.09 | 0.3827 | -691.0 | -862.7 | |
| 1.36 | 14.71 | 0.73 | 7.84 | 4.12 | 165.53 | 21.79 | 270.45 | 0.3719 | 870.9 | 700.5 | |
| 1.54 | -21.00 | 0.82 | -21.00 | 4.12 | 165.26 | 21.53 | 270.46 | 0.3676 | 992.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 3.58 | 165.22 | 21.48 | 268.96 | 0.3671 | -831.0 | -634.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 8.85 | 165.38 | 21.65 | 283.18 | 0.3760 | -882.0 | -726.8 | |
| 0.00 | 1.82 | 0.00 | 0.97 | 8.98 | 165.33 | 21.59 | 283.53 | 0.3755 | -963.0 | -806.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 6.38 | 165.12 | 21.38 | 276.66 | 0.3664 | 1005.0 | 744.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 2.94 | 163.99 | 20.26 | 266.96 | 0.3478 | -859.0 | -672.8 | |
| 0.00 | 3.91 | 0.00 | 2.08 | 11.37 | 164.13 | 20.40 | 290.60 | 0.3666 | 697.0 | 560.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 11.34 | 163.93 | 20.20 | 290.70 | 0.3634 | 781.0 | 663.5 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 10.15 | 163.75 | 20.01 | 287.65 | 0.3551 | 854.0 | 657.6 | |
| 0.00 | 3.54 | 0.00 | 1.87 | 11.15 | 163.12 | 19.39 | 290.88 | 0.3501 | 900.0 | 681.9 | |
| 10.08 | 13.90 | 5.28 | 7.28 | 8.07 | 162.45 | 18.72 | 282.52 | 0.3268 | -1099.9 | -772.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 11.69 | 162.50 | 18.77 | 292.93 | 0.3436 | 907.0 | 696.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 8.05 | 162.03 | 18.29 | 282.69 | 0.3199 | -878.0 | -610.2 | |
| 0.00 | 2.27 | 0.00 | 1.18 | 7.51 | 161.68 | 17.94 | 281.19 | 0.3127 | -904.0 | -672.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 7.50 | 160.65 | 16.91 | 281.74 | 0.2959 | -675.0 | -575.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 10.78 | 160.39 | 16.66 | 292.53 | 0.3062 | -905.0 | -753.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 9.49 | 157.76 | 14.02 | 291.36 | 0.2578 | 803.0 | 659.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 8.79 | 157.47 | 13.74 | 289.09 | 0.2495 | 792.0 | 671.9 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 7.73 | 156.96 | 13.23 | 285.45 | 0.2363 | -909.0 | -580.2 | |
| 0.00 | 4.18 | 0.00 | 2.13 | 9.18 | 156.47 | 12.74 | 291.93 | 0.2357 | 919.0 | 876.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 9.39 | 156.42 | 12.68 | 292.87 | 0.2362 | 908.0 | 734.6 | |
| 1.09 | 5.90 | 0.55 | 3.00 | 8.97 | 156.12 | 12.38 | 291.61 | 0.2289 | 1098.2 | 835.5 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 6.05 | 155.50 | 11.76 | 279.22 | 0.2063 | 928.0 | 669.4 | |
| 0.00 | 4.72 | 0.00 | 2.39 | 5.84 | 155.37 | 11.63 | 278.27 | 0.2036 | 984.0 | 857.1 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 5.59 | 155.24 | 11.50 | 277.16 | 0.2009 | 406.0 | 412.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 9.01 | 155.30 | 11.57 | 293.11 | 0.2162 | 880.0 | 712.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 2.37 | 154.88 | 11.14 | 260.75 | 0.1965 | 804.0 | 571.1 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 5.94 | 154.53 | 10.79 | 279.39 | 0.1896 | 1009.0 | 782.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 5.88 | 154.21 | 10.48 | 279.33 | 0.1842 | 862.0 | 678.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 12.19 | 154.25 | 10.52 | 307.98 | 0.2273 | 809.0 | 717.6 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 12.53 | 154.23 | 10.50 | 309.21 | 0.2306 | 840.0 | 690.6 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 4.88 | 151.75 | 8.01 | 274.82 | 0.1400 | 864.0 | 670.4 | |
| 0.00 | 1.63 | 0.00 | 0.82 | 10.14 | 150.54 | 6.81 | 311.49 | 0.1565 | 918.0 | 736.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
