SDO HMI 2014-07-14 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.53 | 130.50 | 13.18 | 69.80 | 7.47 | 164.49 | 21.31 | 279.93 | 0.3675 | -233.8 | -87.0 | |
|
previous
or next observation for the same group /

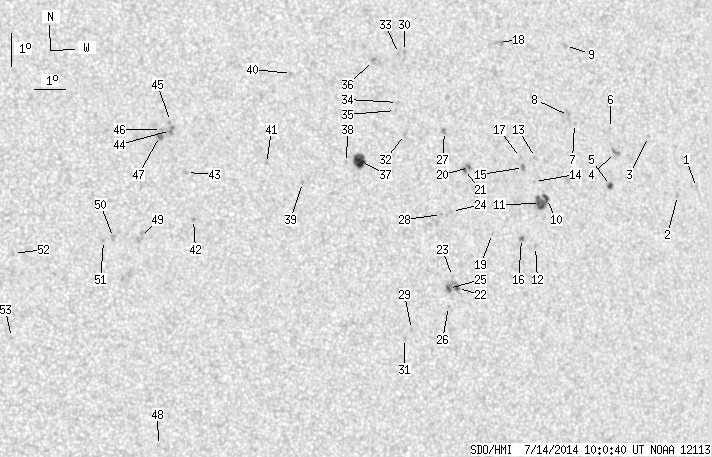

back to the solar disc SDO HMI 2014-07-14 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.84 | 6.90 | 173.88 | 30.69 | 276.37 | 0.5119 | -475.0 | -388.6 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 6.68 | 173.19 | 30.00 | 276.01 | 0.5013 | -770.0 | -623.7 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 8.52 | 172.30 | 29.12 | 279.87 | 0.4904 | -620.0 | -438.5 | |
| 0.00 | 3.36 | 0.00 | 1.89 | 8.07 | 171.11 | 27.92 | 279.21 | 0.4716 | -1074.0 | -719.8 | |
| 1.91 | 3.45 | 1.07 | 1.93 | 7.07 | 170.86 | 27.68 | 277.13 | 0.4664 | -887.2 | -715.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 8.81 | 170.99 | 27.81 | 280.80 | 0.4712 | -638.0 | -498.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 9.01 | 169.76 | 26.57 | 281.59 | 0.4529 | -669.0 | -580.3 | |
| 0.00 | 5.63 | 0.00 | 3.12 | 9.26 | 169.57 | 26.39 | 282.21 | 0.4506 | -724.0 | -602.7 | |
| 0.00 | 2.09 | 0.00 | 1.16 | 11.41 | 169.66 | 26.48 | 286.82 | 0.4585 | -918.0 | -737.2 | |
| 2.09 | 15.53 | 1.15 | 8.51 | 6.75 | 168.64 | 25.46 | 276.78 | 0.4316 | -828.4 | -823.9 | |
| 5.54 | -10.00 | 3.03 | -10.00 | 6.61 | 168.43 | 25.24 | 276.48 | 0.4281 | -1058.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 5.30 | 168.19 | 25.01 | 273.43 | 0.4235 | -708.0 | -549.9 | |
| 0.00 | 1.82 | 0.00 | 1.00 | 8.01 | 168.35 | 25.16 | 279.78 | 0.4290 | -801.0 | -618.2 | |
| 0.00 | 0.82 | 0.00 | 0.45 | 7.28 | 168.27 | 25.08 | 278.10 | 0.4265 | -759.0 | -580.0 | |
| 0.00 | 2.63 | 0.00 | 1.44 | 7.72 | 167.92 | 24.73 | 279.22 | 0.4218 | -961.0 | -860.1 | |
| 0.64 | 2.18 | 0.35 | 1.19 | 5.56 | 167.73 | 24.55 | 274.08 | 0.4163 | -1092.7 | -936.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 8.03 | 167.84 | 24.65 | 279.97 | 0.4211 | -545.0 | -471.5 | |
| 0.00 | 3.91 | 0.00 | 2.14 | 11.57 | 167.37 | 24.19 | 288.43 | 0.4249 | 847.0 | 552.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 5.74 | 166.77 | 23.58 | 274.62 | 0.4010 | -702.0 | -558.5 | |
| 0.45 | 4.81 | 0.24 | 2.59 | 7.78 | 166.11 | 22.92 | 279.89 | 0.3934 | -965.4 | -841.2 | |
| 0.73 | -20.00 | 0.39 | -20.00 | 7.72 | 165.94 | 22.75 | 279.81 | 0.3905 | -1023.9 | 999999 | |
| 1.27 | 8.54 | 0.68 | 4.57 | 4.10 | 165.54 | 22.36 | 270.44 | 0.3810 | 900.3 | 827.1 | |
| 0.00 | 0.82 | 0.00 | 0.44 | 4.47 | 165.39 | 22.20 | 271.42 | 0.3785 | 719.0 | 559.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 6.45 | 165.44 | 22.25 | 276.66 | 0.3804 | 678.0 | 533.6 | |
| 1.36 | -22.00 | 0.73 | -22.00 | 4.11 | 165.24 | 22.06 | 270.45 | 0.3762 | 977.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 3.56 | 165.23 | 22.04 | 268.99 | 0.3763 | -623.0 | -572.5 | |
| 0.00 | 3.18 | 0.00 | 1.70 | 8.90 | 165.34 | 22.16 | 283.06 | 0.3841 | -830.0 | -776.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 6.37 | 165.10 | 21.92 | 276.51 | 0.3749 | 875.0 | 669.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 2.90 | 164.00 | 20.81 | 266.96 | 0.3569 | -834.0 | -598.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 11.39 | 164.19 | 21.00 | 290.17 | 0.3759 | 756.0 | 628.2 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 2.63 | 163.77 | 20.58 | 266.15 | 0.3535 | -782.0 | -623.5 | |
| 0.00 | 2.18 | 0.00 | 1.16 | 8.85 | 164.01 | 20.83 | 283.58 | 0.3630 | -833.0 | -596.2 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 11.33 | 163.98 | 20.80 | 290.18 | 0.3725 | 811.0 | 634.1 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 9.83 | 163.84 | 20.66 | 286.34 | 0.3638 | 908.0 | 712.9 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 9.59 | 163.76 | 20.58 | 285.74 | 0.3616 | 721.0 | 609.6 | |
| 0.00 | 3.09 | 0.00 | 1.64 | 11.14 | 163.14 | 19.96 | 290.36 | 0.3587 | 938.0 | 801.4 | |
| 10.54 | 13.44 | 5.54 | 7.07 | 8.09 | 162.49 | 19.31 | 282.25 | 0.3364 | -1077.6 | -731.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 8.04 | 162.07 | 18.88 | 282.33 | 0.3294 | -876.0 | -624.0 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 7.47 | 160.61 | 17.43 | 281.31 | 0.3042 | -852.0 | -670.2 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 10.81 | 160.43 | 17.25 | 291.96 | 0.3154 | -853.0 | -700.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 8.07 | 159.48 | 16.30 | 284.05 | 0.2877 | 780.0 | 534.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 6.41 | 157.10 | 13.91 | 279.46 | 0.2433 | 835.0 | 715.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 7.85 | 156.92 | 13.74 | 285.40 | 0.2451 | -830.0 | -612.5 | |
| 0.00 | 4.54 | 0.00 | 2.32 | 9.14 | 156.47 | 13.28 | 291.02 | 0.2441 | 1000.0 | 813.1 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 9.42 | 156.48 | 13.29 | 292.07 | 0.2458 | 750.0 | 693.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 9.18 | 156.18 | 13.00 | 291.55 | 0.2398 | 984.0 | 829.1 | |
| 0.00 | 3.45 | 0.00 | 1.76 | 8.96 | 156.11 | 12.93 | 290.81 | 0.2374 | 1222.0 | 971.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -0.46 | 155.91 | 12.72 | 249.95 | 0.2355 | 791.0 | 532.7 | |
| 0.00 | 6.72 | 0.00 | 3.41 | 5.89 | 155.42 | 12.23 | 278.17 | 0.2139 | 634.0 | 750.0 | |
| 0.00 | 3.18 | 0.00 | 1.61 | 5.91 | 154.57 | 11.39 | 278.77 | 0.1996 | 796.0 | 513.7 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 5.82 | 154.26 | 11.07 | 278.54 | 0.1941 | 947.0 | 740.2 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 5.46 | 151.46 | 8.27 | 278.67 | 0.1455 | 813.0 | 455.2 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 2.90 | 151.36 | 8.18 | 260.88 | 0.1446 | 652.0 | 481.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
