SDO HMI 2014-07-14 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.63 | 94.86 | 4.72 | 52.21 | -20.04 | 147.96 | 6.42 | 194.61 | 0.4348 | 329.4 | 220.2 | |
|
previous
or next observation for the same group /

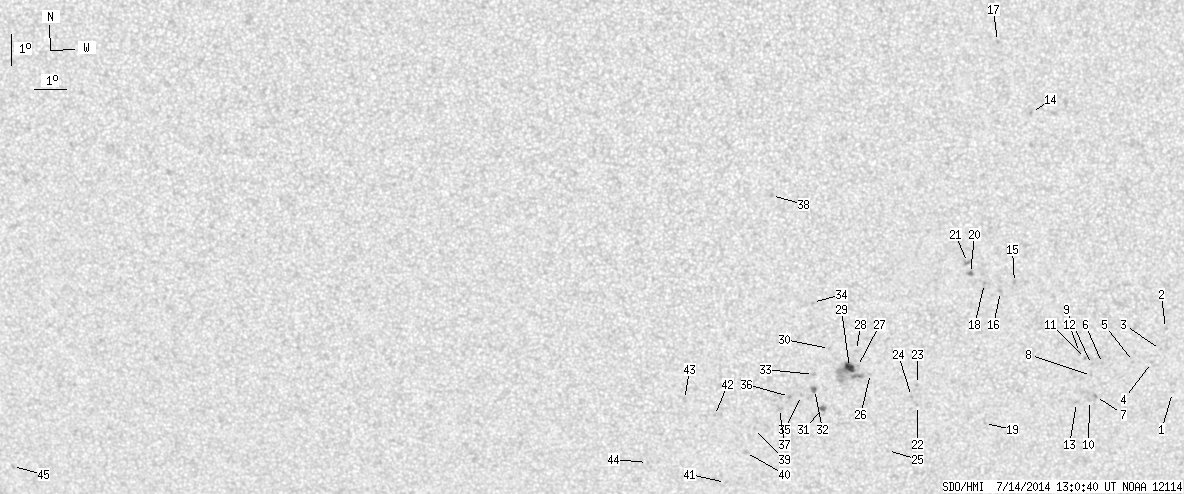

back to the solar disc SDO HMI 2014-07-14 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.21 | -21.18 | 157.78 | 16.24 | 211.43 | 0.5022 | 557.0 | 495.0 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -19.03 | 157.32 | 15.78 | 213.22 | 0.4713 | 671.0 | 627.6 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -19.73 | 157.22 | 15.68 | 212.21 | 0.4793 | 680.0 | 544.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -20.16 | 156.96 | 15.42 | 211.29 | 0.4826 | 626.0 | 431.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -20.11 | 156.35 | 14.81 | 210.34 | 0.4772 | 608.0 | 550.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.15 | 155.31 | 13.78 | 208.53 | 0.4700 | 793.0 | 613.6 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -21.26 | 155.18 | 13.64 | 207.14 | 0.4838 | 801.0 | 619.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -20.55 | 154.98 | 13.45 | 207.53 | 0.4729 | 745.0 | 552.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.18 | 154.95 | 13.41 | 207.87 | 0.4677 | 770.0 | 675.5 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -21.39 | 154.99 | 13.46 | 206.69 | 0.4843 | 725.0 | 612.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -19.98 | 154.73 | 13.20 | 207.70 | 0.4634 | 811.0 | 619.8 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -19.77 | 154.51 | 12.98 | 207.54 | 0.4590 | 802.0 | 650.8 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -21.45 | 154.56 | 13.02 | 205.90 | 0.4822 | 767.0 | 597.7 | |
| 0.00 | 2.09 | 0.00 | 1.10 | -11.94 | 152.49 | 10.96 | 213.81 | 0.3356 | 779.0 | 614.5 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -17.42 | 152.21 | 10.68 | 205.66 | 0.4100 | 774.0 | 704.8 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -17.71 | 151.77 | 10.24 | 204.43 | 0.4112 | 781.0 | 697.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.68 | 151.34 | 9.81 | 214.99 | 0.2940 | 873.0 | 739.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.43 | 151.24 | 9.71 | 203.58 | 0.4038 | 1084.0 | 862.9 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -22.11 | 151.53 | 9.99 | 199.94 | 0.4733 | 680.0 | 550.6 | |
| 0.64 | 2.72 | 0.34 | 1.47 | -17.10 | 150.77 | 9.24 | 202.89 | 0.3960 | 959.6 | 797.7 | |
| 0.00 | 2.81 | 0.00 | 1.51 | -16.74 | 150.66 | 9.12 | 203.01 | 0.3899 | 994.0 | 860.1 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -21.47 | 149.26 | 7.73 | 196.10 | 0.4530 | 616.0 | 505.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -20.76 | 149.23 | 7.69 | 196.51 | 0.4423 | 657.0 | 542.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -21.16 | 149.05 | 7.51 | 195.88 | 0.4475 | 700.0 | 487.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -22.99 | 148.34 | 6.81 | 193.42 | 0.4722 | 368.0 | 338.9 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -20.38 | 147.67 | 6.13 | 193.53 | 0.4301 | 380.0 | 401.9 | |
| 0.00 | 2.54 | 0.00 | 1.39 | -20.14 | 147.23 | 5.70 | 192.73 | 0.4248 | 844.0 | 676.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.60 | 147.18 | 5.65 | 192.92 | 0.4164 | 708.0 | 632.4 | |
| 5.81 | 26.60 | 3.18 | 14.56 | -20.17 | 146.97 | 5.44 | 192.16 | 0.4244 | 1097.3 | 452.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.53 | 146.30 | 4.77 | 191.00 | 0.4123 | 761.0 | 597.2 | |
| 1.18 | 3.81 | 0.65 | 2.11 | -21.54 | 146.13 | 4.60 | 189.73 | 0.4432 | -949.3 | -722.7 | |
| 1.00 | 3.27 | 0.55 | 1.79 | -20.90 | 145.85 | 4.32 | 189.40 | 0.4324 | -942.8 | -783.4 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -20.39 | 145.81 | 4.27 | 189.51 | 0.4245 | -690.0 | -517.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -18.00 | 145.72 | 4.18 | 190.38 | 0.3865 | -674.0 | -638.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.10 | 145.43 | 3.90 | 188.43 | 0.4345 | -966.0 | -719.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.13 | 145.04 | 3.51 | 187.58 | 0.4342 | -895.0 | -734.7 | |
| 0.00 | 3.18 | 0.00 | 1.75 | -21.53 | 144.72 | 3.19 | 186.78 | 0.4398 | -973.0 | -732.9 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -14.51 | 144.35 | 2.82 | 188.42 | 0.3265 | 763.0 | 621.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -22.21 | 143.91 | 2.38 | 184.93 | 0.4491 | -817.0 | -654.1 | |
| 0.00 | 2.72 | 0.00 | 1.52 | -23.03 | 143.63 | 2.09 | 184.20 | 0.4615 | -790.0 | -548.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -24.06 | 142.98 | 1.44 | 182.77 | 0.4768 | -603.0 | -482.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -21.76 | 142.59 | 1.06 | 182.24 | 0.4408 | -781.0 | -649.7 | |
| 0.00 | 2.18 | 0.00 | 1.20 | -21.22 | 141.61 | 0.07 | 180.16 | 0.4319 | -746.0 | -581.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -23.37 | 140.38 | -1.16 | 177.71 | 0.4659 | -681.0 | -530.2 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -23.83 | 118.60 | -22.93 | 142.56 | 0.5885 | -752.0 | -647.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
