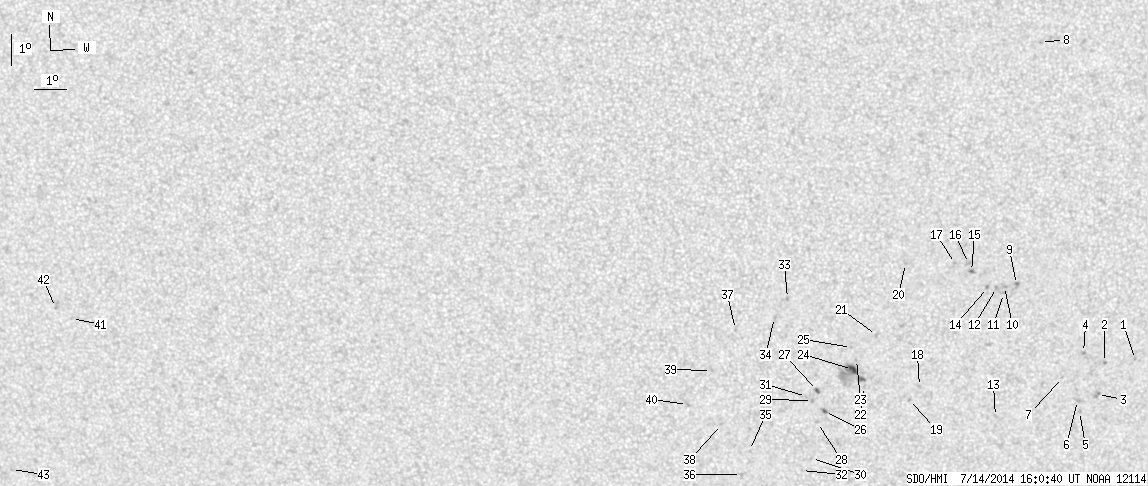

SDO HMI 2014-07-14 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.91 | 94.67 | 3.24 | 52.29 | -19.96 | 147.37 | 7.50 | 196.75 | 0.4410 | 156.5 | 270.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-14 16:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.57 | -20.04 | 156.36 | 16.49 | 213.12 | 0.4900 | 713.0 | 649.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -20.12 | 155.33 | 15.45 | 211.38 | 0.4825 | 848.0 | 738.8 | |
| 0.00 | 2.90 | 0.00 | 1.65 | -21.19 | 155.20 | 15.33 | 209.97 | 0.4952 | 766.0 | 646.0 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -19.77 | 154.59 | 14.71 | 210.55 | 0.4721 | 721.0 | 653.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -21.75 | 154.65 | 14.77 | 208.50 | 0.4984 | 588.0 | 443.1 | |
| 0.00 | 2.72 | 0.00 | 1.55 | -21.38 | 154.54 | 14.67 | 208.71 | 0.4928 | 648.0 | 593.9 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -20.59 | 153.96 | 14.09 | 208.58 | 0.4782 | 782.0 | 568.0 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -9.73 | 152.55 | 12.68 | 222.03 | 0.3244 | 837.0 | 674.1 | |
| 0.00 | 2.72 | 0.00 | 1.49 | -17.47 | 152.19 | 12.31 | 208.89 | 0.4228 | 875.0 | 762.3 | |
| 0.00 | 2.27 | 0.00 | 1.24 | -17.53 | 151.80 | 11.92 | 208.05 | 0.4207 | 857.0 | 696.7 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -17.76 | 151.78 | 11.91 | 207.75 | 0.4237 | 754.0 | 626.4 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -17.56 | 151.54 | 11.66 | 207.50 | 0.4192 | 865.0 | 693.5 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -21.87 | 151.82 | 11.95 | 203.65 | 0.4811 | 716.0 | 595.9 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -17.55 | 151.24 | 11.37 | 206.92 | 0.4170 | 922.0 | 812.2 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -17.02 | 150.69 | 10.82 | 206.39 | 0.4055 | 1022.0 | 801.8 | |
| 0.00 | 2.72 | 0.00 | 1.47 | -16.76 | 150.58 | 10.71 | 206.46 | 0.4009 | 934.0 | 722.6 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -16.75 | 150.16 | 10.28 | 205.56 | 0.3979 | 861.0 | 668.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -20.81 | 149.22 | 9.34 | 199.74 | 0.4511 | 850.0 | 604.0 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -21.25 | 148.91 | 9.04 | 198.82 | 0.4559 | 605.0 | 546.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -16.73 | 148.54 | 8.67 | 202.00 | 0.3871 | 741.0 | 665.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -19.09 | 147.71 | 7.84 | 198.05 | 0.4179 | 735.0 | 506.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -20.79 | 147.40 | 7.53 | 196.16 | 0.4420 | 551.0 | 410.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -19.88 | 147.10 | 7.22 | 196.15 | 0.4270 | 711.0 | 607.9 | |
| 4.27 | 33.95 | 2.34 | 18.65 | -20.21 | 146.98 | 7.11 | 195.68 | 0.4315 | 1111.5 | 447.6 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -19.48 | 146.92 | 7.04 | 196.04 | 0.4201 | 704.0 | 604.2 | |
| 0.73 | 3.09 | 0.40 | 1.71 | -21.62 | 146.12 | 6.25 | 193.07 | 0.4495 | -931.4 | -730.9 | |
| 0.91 | 2.09 | 0.50 | 1.15 | -20.91 | 145.87 | 5.99 | 192.92 | 0.4378 | -844.0 | -656.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -21.99 | 145.91 | 6.04 | 192.44 | 0.4544 | -762.0 | -633.8 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -21.24 | 145.71 | 5.84 | 192.43 | 0.4424 | -840.0 | -708.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -23.22 | 145.76 | 5.89 | 191.56 | 0.4726 | -786.0 | -507.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.11 | 145.51 | 5.64 | 192.08 | 0.4396 | -831.0 | -704.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -23.63 | 145.45 | 5.57 | 190.77 | 0.4778 | -557.0 | -471.6 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -17.84 | 144.79 | 4.92 | 192.25 | 0.3863 | -926.0 | -782.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.46 | 144.39 | 4.52 | 190.95 | 0.3949 | -697.0 | -585.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.93 | 143.69 | 3.82 | 187.64 | 0.4628 | -368.0 | -516.1 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -23.75 | 143.45 | 3.57 | 186.93 | 0.4749 | -734.0 | -524.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.85 | 143.14 | 3.27 | 187.83 | 0.3978 | -632.0 | -514.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -22.03 | 142.75 | 2.87 | 185.98 | 0.4472 | -729.0 | -610.2 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -20.21 | 142.39 | 2.51 | 185.67 | 0.4180 | -802.0 | -606.2 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -21.35 | 141.62 | 1.75 | 183.75 | 0.4350 | -852.0 | -692.3 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -18.68 | 121.46 | -18.41 | 142.23 | 0.4905 | -712.0 | -639.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -18.33 | 120.96 | -18.91 | 141.03 | 0.4912 | -677.0 | -608.7 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -23.85 | 118.64 | -21.24 | 144.62 | 0.5744 | -652.0 | -554.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
