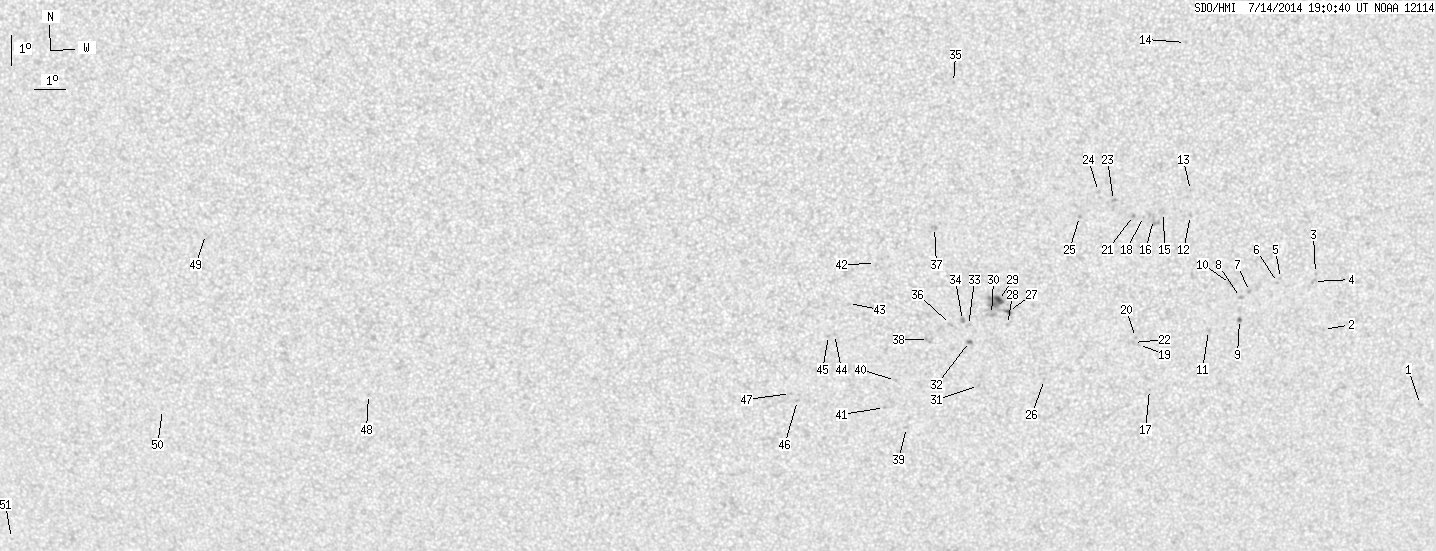

SDO HMI 2014-07-14 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.26 | 102.68 | 3.46 | 57.31 | -20.35 | 148.18 | 9.97 | 201.16 | 0.4607 | 148.8 | 156.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-14 19:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 1.57 | -24.18 | 162.02 | 23.81 | 218.04 | 0.5998 | -769.0 | -525.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -21.49 | 158.10 | 19.89 | 216.33 | 0.5366 | 589.0 | 458.1 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -19.60 | 157.57 | 19.37 | 217.93 | 0.5102 | 541.0 | 475.8 | |
| 0.00 | 2.36 | 0.00 | 1.36 | -19.87 | 157.54 | 19.33 | 217.55 | 0.5129 | 688.0 | 564.0 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -19.74 | 156.39 | 18.19 | 216.06 | 0.5010 | 717.0 | 603.4 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -19.87 | 156.31 | 18.10 | 215.77 | 0.5018 | 669.0 | 581.7 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -20.14 | 155.39 | 17.18 | 214.05 | 0.4972 | 705.0 | 628.1 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -20.34 | 155.10 | 16.89 | 213.38 | 0.4972 | 765.0 | 650.2 | |
| 0.64 | 2.00 | 0.36 | 1.15 | -21.08 | 155.15 | 16.94 | 212.60 | 0.5067 | 757.0 | 574.1 | |
| 0.00 | 2.63 | 0.00 | 1.49 | -19.86 | 154.71 | 16.50 | 213.34 | 0.4880 | 587.0 | 613.0 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -21.43 | 154.14 | 15.93 | 210.65 | 0.5030 | 561.0 | 499.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -17.58 | 153.16 | 14.95 | 213.62 | 0.4459 | 816.0 | 588.6 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -16.76 | 153.09 | 14.88 | 214.60 | 0.4349 | 763.0 | 602.1 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -11.99 | 152.61 | 14.40 | 221.22 | 0.3708 | 641.0 | 561.4 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -17.46 | 152.26 | 14.05 | 212.17 | 0.4367 | 735.0 | 664.8 | |
| 0.00 | 7.99 | 0.00 | 4.39 | -17.68 | 151.94 | 13.74 | 211.31 | 0.4371 | 799.0 | 653.3 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -23.40 | 152.34 | 14.13 | 205.85 | 0.5158 | 581.0 | 476.4 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -17.58 | 151.61 | 13.40 | 210.82 | 0.4330 | 722.0 | 580.5 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -21.85 | 151.81 | 13.60 | 206.46 | 0.4917 | 728.0 | 609.0 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -21.61 | 151.68 | 13.47 | 206.49 | 0.4876 | 825.0 | 767.0 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -17.54 | 151.28 | 13.07 | 210.25 | 0.4298 | 937.0 | 784.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -21.78 | 151.63 | 13.42 | 206.24 | 0.4895 | 752.0 | 611.0 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -17.03 | 150.59 | 12.38 | 209.53 | 0.4175 | 945.0 | 768.8 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -16.73 | 150.08 | 11.87 | 208.89 | 0.4094 | 638.0 | 638.5 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -17.54 | 149.51 | 11.30 | 206.78 | 0.4165 | 765.0 | 632.8 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.99 | 148.74 | 10.53 | 200.21 | 0.4889 | 705.0 | 493.8 | |
| 1.27 | 23.96 | 0.70 | 13.22 | -20.66 | 147.38 | 9.17 | 199.51 | 0.4482 | 895.2 | 492.9 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.10 | 147.37 | 9.16 | 199.15 | 0.4546 | 269.0 | 254.2 | |
| 3.81 | -27.00 | 2.10 | -27.00 | -20.29 | 147.02 | 8.82 | 199.11 | 0.4409 | 1085.4 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.81 | -20.75 | 146.82 | 8.61 | 198.34 | 0.4468 | 61.0 | 124.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -23.16 | 146.53 | 8.32 | 196.13 | 0.4809 | -613.0 | -492.7 | |
| 0.54 | 2.09 | 0.30 | 1.16 | -21.66 | 146.14 | 7.94 | 196.38 | 0.4570 | -963.0 | -809.9 | |
| 0.00 | 2.36 | 0.00 | 1.31 | -21.12 | 146.08 | 7.87 | 196.62 | 0.4487 | -479.0 | -340.2 | |
| 0.00 | 2.45 | 0.00 | 1.35 | -20.94 | 145.88 | 7.67 | 196.32 | 0.4452 | -964.0 | -686.3 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -13.15 | 145.28 | 7.08 | 201.87 | 0.3234 | 830.0 | 636.4 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -21.08 | 145.49 | 7.28 | 195.45 | 0.4455 | -865.0 | -708.3 | |
| 0.00 | 2.81 | 0.00 | 1.51 | -17.84 | 144.83 | 6.62 | 196.27 | 0.3933 | -967.0 | -827.7 | |
| 0.00 | 4.45 | 0.00 | 2.47 | -21.57 | 144.79 | 6.58 | 193.74 | 0.4502 | -564.0 | -679.0 | |
| 0.00 | 1.91 | 0.00 | 1.08 | -24.59 | 144.19 | 5.98 | 191.11 | 0.4936 | -119.0 | -136.6 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.96 | 143.75 | 5.54 | 191.00 | 0.4678 | -890.0 | -616.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -23.89 | 143.42 | 5.21 | 189.99 | 0.4809 | -827.0 | -734.2 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -19.01 | 142.96 | 4.75 | 191.22 | 0.4045 | -474.0 | -400.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -20.34 | 142.12 | 3.91 | 188.74 | 0.4230 | -385.0 | -455.6 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -21.38 | 141.69 | 3.48 | 187.44 | 0.4383 | -798.0 | -625.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.41 | 141.49 | 3.28 | 187.02 | 0.4384 | -555.0 | -507.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -23.63 | 140.51 | 2.30 | 184.50 | 0.4713 | -657.0 | -551.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -23.39 | 140.27 | 2.07 | 184.08 | 0.4673 | -701.0 | -570.9 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -23.50 | 126.17 | -12.04 | 157.61 | 0.5044 | -737.0 | -529.6 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -18.21 | 121.20 | -17.01 | 143.77 | 0.4721 | -759.0 | -601.5 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -24.16 | 118.95 | -19.26 | 147.50 | 0.5623 | -635.0 | -529.1 | |
| 0.00 | 0.64 | 0.00 | 0.42 | -28.93 | 112.37 | -25.84 | 144.82 | 0.6644 | -453.0 | -393.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
