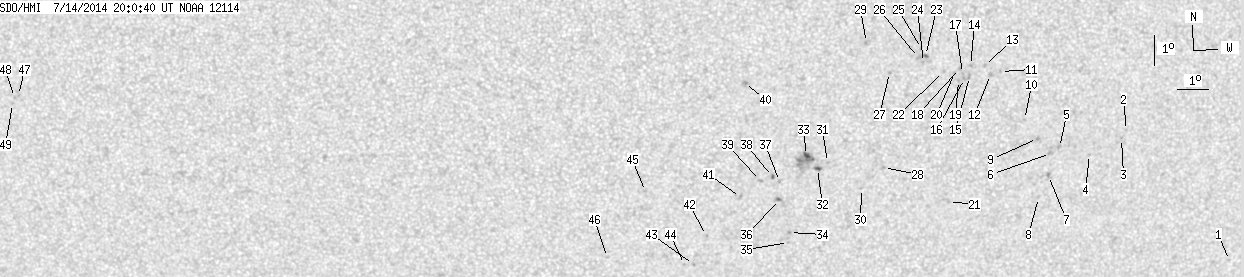

SDO HMI 2014-07-14 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.99 | 92.85 | 2.20 | 51.62 | -19.77 | 148.42 | 10.77 | 203.01 | 0.4552 | 215.4 | 246.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-14 20:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.28 | -24.19 | 162.05 | 24.40 | 218.68 | 0.6051 | -715.0 | -639.4 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -19.64 | 157.64 | 19.99 | 218.74 | 0.5165 | 607.0 | 396.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -19.90 | 157.51 | 19.85 | 218.22 | 0.5182 | 826.0 | 697.4 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -20.41 | 156.47 | 18.82 | 216.13 | 0.5146 | 397.0 | 372.0 | |
| 0.00 | 1.91 | 0.00 | 1.09 | -20.15 | 155.41 | 17.76 | 214.91 | 0.5023 | 737.0 | 669.8 | |
| 0.00 | 2.72 | 0.00 | 1.56 | -20.34 | 155.13 | 17.47 | 214.25 | 0.5022 | 702.0 | 557.6 | |
| 0.00 | 2.45 | 0.00 | 1.41 | -21.08 | 155.15 | 17.49 | 213.41 | 0.5113 | 783.0 | 629.6 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -21.82 | 154.89 | 17.24 | 212.20 | 0.5183 | 353.0 | 312.2 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -19.83 | 154.63 | 16.97 | 214.11 | 0.4917 | 787.0 | 672.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -19.18 | 154.12 | 16.47 | 214.11 | 0.4794 | 760.0 | 606.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -17.58 | 153.17 | 15.51 | 214.59 | 0.4510 | 781.0 | 627.9 | |
| 0.00 | 2.81 | 0.00 | 1.56 | -17.67 | 152.84 | 15.19 | 213.91 | 0.4493 | 690.0 | 518.7 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -17.37 | 152.62 | 14.97 | 213.92 | 0.4435 | 631.0 | 559.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -17.36 | 152.16 | 14.50 | 213.11 | 0.4394 | 851.0 | 667.7 | |
| 0.00 | 2.45 | 0.00 | 1.35 | -17.72 | 152.15 | 14.50 | 212.64 | 0.4440 | 702.0 | 570.7 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -17.78 | 151.99 | 14.34 | 212.27 | 0.4435 | 725.0 | 650.6 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -17.62 | 151.91 | 14.26 | 212.34 | 0.4407 | 866.0 | 756.4 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -17.45 | 151.80 | 14.15 | 212.35 | 0.4375 | 873.0 | 737.7 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -17.84 | 151.80 | 14.15 | 211.85 | 0.4427 | 692.0 | 534.7 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -17.58 | 151.65 | 13.99 | 211.90 | 0.4379 | 803.0 | 629.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -21.89 | 151.83 | 14.18 | 207.37 | 0.4962 | 689.0 | 572.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -17.54 | 151.28 | 13.63 | 211.28 | 0.4344 | 866.0 | 735.7 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -17.00 | 150.65 | 13.00 | 210.77 | 0.4221 | 993.0 | 784.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -17.23 | 150.60 | 12.95 | 210.39 | 0.4248 | 784.0 | 618.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -16.77 | 150.50 | 12.85 | 210.79 | 0.4178 | 860.0 | 715.8 | |
| 0.00 | 2.27 | 0.00 | 1.24 | -17.06 | 150.43 | 12.77 | 210.26 | 0.4211 | 732.0 | 582.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -17.54 | 149.51 | 11.86 | 207.89 | 0.4206 | 654.0 | 595.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -20.69 | 149.54 | 11.89 | 204.61 | 0.4647 | 798.0 | 579.9 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -16.54 | 148.70 | 11.05 | 207.41 | 0.4007 | 825.0 | 688.3 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -21.39 | 148.86 | 11.21 | 202.74 | 0.4702 | 567.0 | 474.0 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -20.50 | 147.67 | 10.02 | 201.29 | 0.4505 | 689.0 | 591.8 | |
| 1.18 | 2.63 | 0.65 | 1.46 | -20.69 | 147.35 | 9.70 | 200.51 | 0.4516 | 894.6 | 719.7 | |
| 2.27 | 22.60 | 1.25 | 12.49 | -20.25 | 146.96 | 9.31 | 200.12 | 0.4430 | 1157.5 | 440.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.85 | 146.56 | 8.91 | 197.40 | 0.4790 | -904.0 | -775.6 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -23.20 | 146.55 | 8.90 | 197.15 | 0.4840 | -624.0 | -514.6 | |
| 0.00 | 2.63 | 0.00 | 1.47 | -21.72 | 146.16 | 8.50 | 197.42 | 0.4606 | -922.0 | -703.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.11 | 146.12 | 8.47 | 197.79 | 0.4514 | -566.0 | -431.5 | |
| 0.54 | 1.81 | 0.30 | 1.00 | -20.94 | 145.88 | 8.23 | 197.44 | 0.4478 | -801.7 | -663.6 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -21.07 | 145.49 | 7.84 | 196.58 | 0.4479 | -885.0 | -708.6 | |
| 0.00 | 2.45 | 0.00 | 1.32 | -17.83 | 144.82 | 7.17 | 197.54 | 0.3959 | -906.0 | -830.3 | |
| 0.00 | 2.72 | 0.00 | 1.51 | -21.64 | 144.86 | 7.21 | 194.96 | 0.4537 | -890.0 | -650.9 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -22.92 | 143.79 | 6.14 | 192.17 | 0.4692 | -712.0 | -631.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -23.92 | 143.40 | 5.75 | 190.98 | 0.4830 | -846.0 | -689.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -23.92 | 143.10 | 5.45 | 190.42 | 0.4821 | -681.0 | -519.8 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -21.41 | 141.73 | 4.07 | 188.68 | 0.4401 | -858.0 | -647.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -23.66 | 140.52 | 2.87 | 185.59 | 0.4726 | -743.0 | -572.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -18.35 | 121.30 | -16.35 | 145.02 | 0.4680 | -815.0 | -615.4 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -18.42 | 121.16 | -16.49 | 144.88 | 0.4701 | -701.0 | -566.7 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -18.62 | 121.07 | -16.58 | 144.99 | 0.4733 | -642.0 | -465.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
