SDO HMI 2014-07-14 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.06 | 87.88 | 9.12 | 49.43 | 7.82 | 164.70 | 27.60 | 279.20 | 0.4653 | -82.9 | -143.8 | |
|
previous
or next observation for the same group /

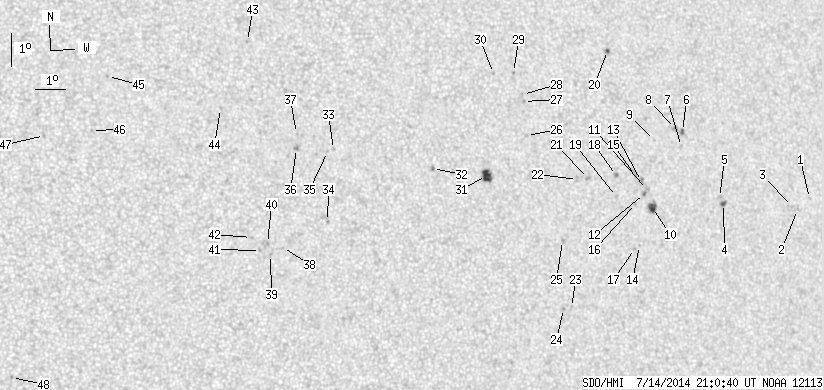

back to the solar disc SDO HMI 2014-07-14 21:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.56 | 6.86 | 174.34 | 37.24 | 275.70 | 0.6061 | -589.0 | -491.5 | |
| 0.00 | 3.18 | 0.00 | 1.96 | 6.55 | 173.85 | 36.75 | 275.20 | 0.5991 | -453.0 | -426.0 | |
| 0.00 | 0.91 | 0.00 | 0.56 | 6.64 | 173.67 | 36.57 | 275.38 | 0.5966 | -672.0 | -535.6 | |
| 1.36 | 2.54 | 0.81 | 1.52 | 6.85 | 171.09 | 33.99 | 275.90 | 0.5601 | -809.6 | -644.8 | |
| 0.00 | 1.81 | 0.00 | 1.08 | 7.04 | 170.96 | 33.86 | 276.25 | 0.5584 | -352.0 | -352.9 | |
| 1.09 | 2.45 | 0.64 | 1.44 | 9.11 | 169.79 | 32.69 | 280.17 | 0.5439 | -741.1 | -617.4 | |
| 0.00 | 1.63 | 0.00 | 0.96 | 8.65 | 169.70 | 32.61 | 279.35 | 0.5420 | -576.0 | -464.9 | |
| 0.00 | 2.45 | 0.00 | 1.44 | 9.21 | 169.54 | 32.44 | 280.41 | 0.5405 | -766.0 | -657.7 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 8.87 | 168.74 | 31.64 | 279.95 | 0.5283 | -711.0 | -595.1 | |
| 4.72 | 8.17 | 2.74 | 4.74 | 6.83 | 168.49 | 31.39 | 276.10 | 0.5222 | -872.5 | -643.3 | |
| 0.00 | 1.91 | 0.00 | 1.10 | 7.39 | 168.36 | 31.26 | 277.18 | 0.5207 | -572.0 | -529.5 | |
| 0.36 | 1.91 | 0.21 | 1.10 | 7.27 | 168.24 | 31.14 | 276.97 | 0.5188 | -862.5 | -756.5 | |
| 0.00 | 3.09 | 0.00 | 1.78 | 7.64 | 168.16 | 31.06 | 277.70 | 0.5181 | -975.0 | -816.6 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 5.70 | 167.95 | 30.85 | 273.93 | 0.5135 | -479.0 | -442.5 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 7.83 | 167.96 | 30.86 | 278.10 | 0.5153 | -727.0 | -607.7 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 6.98 | 167.89 | 30.80 | 276.45 | 0.5134 | -810.0 | -690.1 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 5.61 | 167.77 | 30.67 | 273.78 | 0.5107 | -717.0 | -533.5 | |
| 0.00 | 2.00 | 0.00 | 1.14 | 7.86 | 167.28 | 30.19 | 278.26 | 0.5053 | -785.0 | -718.7 | |
| 0.00 | 1.72 | 0.00 | 0.99 | 7.22 | 167.23 | 30.14 | 277.00 | 0.5038 | -743.0 | -518.6 | |
| 1.00 | 2.09 | 0.58 | 1.20 | 11.69 | 167.35 | 30.25 | 285.71 | 0.5146 | 663.9 | 495.7 | |
| 0.00 | 2.36 | 0.00 | 1.34 | 7.81 | 166.29 | 29.19 | 278.33 | 0.4903 | -996.0 | -773.4 | |
| 0.00 | 2.27 | 0.00 | 1.28 | 7.79 | 165.90 | 28.80 | 278.37 | 0.4844 | -625.0 | -540.4 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 3.90 | 165.47 | 28.37 | 270.26 | 0.4759 | 708.0 | 549.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 3.88 | 165.19 | 28.09 | 270.20 | 0.4717 | 780.0 | 672.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 5.95 | 165.25 | 28.15 | 274.60 | 0.4727 | 633.0 | 539.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 9.19 | 164.23 | 27.13 | 281.75 | 0.4617 | -762.0 | -615.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 10.24 | 164.22 | 27.12 | 283.99 | 0.4642 | 675.0 | 581.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 10.45 | 164.21 | 27.11 | 284.45 | 0.4646 | 659.0 | 559.3 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 11.14 | 163.96 | 26.86 | 286.00 | 0.4631 | 799.0 | 705.9 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 11.13 | 163.26 | 26.17 | 286.31 | 0.4527 | 931.0 | 762.7 | |
| 7.53 | 10.44 | 4.14 | 5.74 | 8.02 | 162.76 | 25.66 | 279.58 | 0.4367 | -1035.5 | -702.0 | |
| 0.00 | 2.00 | 0.00 | 1.08 | 8.29 | 160.95 | 23.85 | 280.78 | 0.4090 | -908.0 | -733.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | 8.97 | 157.69 | 20.60 | 283.95 | 0.3596 | 656.0 | 547.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 6.78 | 157.38 | 20.28 | 277.94 | 0.3491 | 728.0 | 571.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 8.91 | 157.49 | 20.40 | 283.91 | 0.3562 | 714.0 | 587.4 | |
| 0.00 | 2.63 | 0.00 | 1.39 | 9.03 | 156.48 | 19.38 | 284.84 | 0.3406 | 983.0 | 811.4 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 9.49 | 156.51 | 19.41 | 286.14 | 0.3427 | 643.0 | 481.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 6.02 | 155.89 | 18.79 | 276.10 | 0.3235 | 632.0 | 578.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 5.82 | 155.49 | 18.39 | 275.56 | 0.3167 | 816.0 | 661.5 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 6.16 | 155.41 | 18.31 | 276.64 | 0.3158 | 928.0 | 784.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 5.95 | 155.17 | 18.07 | 276.04 | 0.3117 | 851.0 | 682.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 6.35 | 154.90 | 17.80 | 277.42 | 0.3077 | 842.0 | 718.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 12.35 | 155.10 | 18.00 | 295.47 | 0.3358 | 804.0 | 653.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 10.31 | 154.08 | 16.99 | 290.63 | 0.3084 | 372.0 | 428.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 11.37 | 150.51 | 13.41 | 298.85 | 0.2607 | 775.0 | 626.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 9.72 | 149.92 | 12.83 | 293.81 | 0.2402 | 784.0 | 585.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 9.60 | 148.43 | 11.34 | 295.86 | 0.2163 | 775.0 | 568.0 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 2.23 | 147.25 | 10.15 | 258.86 | 0.1803 | 877.0 | 704.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
