SDO HMI 2014-07-14 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.98 | 82.88 | 7.95 | 46.45 | 8.01 | 163.70 | 27.16 | 279.49 | 0.4591 | -81.1 | -54.2 | |
|
previous
or next observation for the same group /

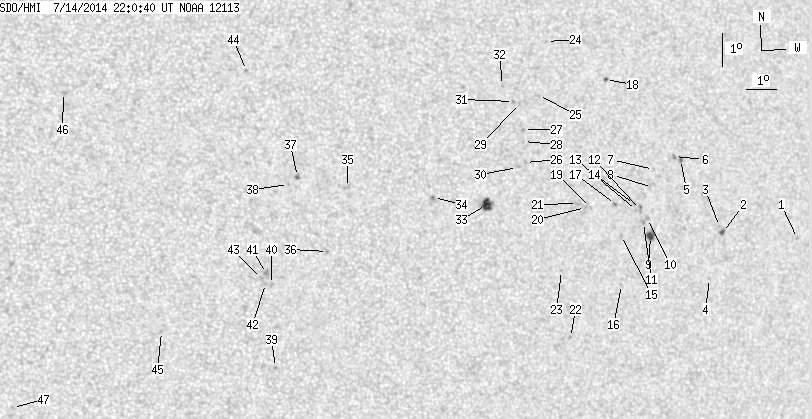

back to the solar disc SDO HMI 2014-07-14 22:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.68 | 6.52 | 173.95 | 37.41 | 275.13 | 0.6082 | -531.0 | -429.4 | |
| 1.18 | 2.36 | 0.71 | 1.42 | 6.83 | 171.13 | 34.58 | 275.81 | 0.5686 | -756.2 | -632.2 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 7.02 | 171.03 | 34.49 | 276.15 | 0.5674 | -694.0 | -579.6 | |
| 0.00 | 0.64 | 0.00 | 0.38 | 5.45 | 170.54 | 34.00 | 273.39 | 0.5597 | -558.0 | -481.1 | |
| 0.64 | 2.36 | 0.38 | 1.40 | 9.12 | 169.79 | 33.24 | 280.08 | 0.5518 | -761.6 | -648.7 | |
| 0.00 | 2.36 | 0.00 | 1.40 | 9.22 | 169.58 | 33.03 | 280.31 | 0.5490 | -686.0 | -607.8 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 8.86 | 168.77 | 32.22 | 279.79 | 0.5367 | -713.0 | -561.4 | |
| 0.00 | 1.18 | 0.00 | 0.69 | 8.31 | 168.68 | 32.13 | 278.79 | 0.5346 | -458.0 | -533.4 | |
| 4.08 | 7.35 | 2.38 | 4.29 | 6.82 | 168.48 | 31.93 | 276.01 | 0.5302 | -864.1 | -621.4 | |
| 0.00 | 1.63 | 0.00 | 0.95 | 7.37 | 168.41 | 31.87 | 277.06 | 0.5297 | -619.0 | -509.9 | |
| 0.00 | 1.72 | 0.00 | 1.00 | 7.26 | 168.26 | 31.72 | 276.86 | 0.5273 | -898.0 | -744.1 | |
| 0.00 | 2.81 | 0.00 | 1.64 | 7.66 | 168.18 | 31.64 | 277.63 | 0.5266 | -852.0 | -751.2 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 7.63 | 168.04 | 31.49 | 277.61 | 0.5244 | -796.0 | -583.7 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 7.82 | 167.98 | 31.44 | 277.97 | 0.5238 | -782.0 | -662.3 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 6.89 | 167.44 | 30.90 | 276.25 | 0.5148 | -807.0 | -655.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 5.40 | 167.34 | 30.80 | 273.34 | 0.5126 | -649.0 | -553.3 | |
| 0.00 | 1.72 | 0.00 | 0.99 | 7.84 | 167.30 | 30.76 | 278.13 | 0.5137 | -824.0 | -714.3 | |
| 0.73 | 1.36 | 0.42 | 0.79 | 11.68 | 167.34 | 30.79 | 285.48 | 0.5223 | 644.4 | 564.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 7.79 | 166.40 | 29.86 | 278.16 | 0.5003 | -673.0 | -559.1 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 7.79 | 166.23 | 29.68 | 278.21 | 0.4977 | -771.0 | -668.8 | |
| 0.00 | 2.09 | 0.00 | 1.19 | 7.93 | 165.95 | 29.41 | 278.52 | 0.4938 | -864.0 | -675.3 | |
| 0.00 | 0.82 | 0.00 | 0.46 | 3.85 | 165.47 | 28.92 | 270.19 | 0.4845 | 667.0 | 562.9 | |
| 0.00 | 0.64 | 0.00 | 0.36 | 5.91 | 165.25 | 28.71 | 274.46 | 0.4812 | 699.0 | 589.4 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 12.92 | 165.37 | 28.83 | 288.70 | 0.4981 | 649.0 | 549.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 11.28 | 164.89 | 28.35 | 285.64 | 0.4855 | 611.0 | 489.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 9.24 | 164.24 | 27.69 | 281.67 | 0.4703 | -679.0 | -589.3 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 10.25 | 164.26 | 27.72 | 283.78 | 0.4731 | 747.0 | 614.5 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 9.89 | 164.23 | 27.68 | 283.03 | 0.4716 | 843.0 | 611.0 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 11.06 | 164.20 | 27.66 | 285.47 | 0.4746 | 763.0 | 555.1 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 9.10 | 163.95 | 27.40 | 281.45 | 0.4656 | -99.0 | -83.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 11.12 | 164.00 | 27.45 | 285.70 | 0.4718 | 793.0 | 681.4 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 11.63 | 163.67 | 27.12 | 286.90 | 0.4686 | 556.0 | 444.9 | |
| 7.35 | 10.71 | 4.06 | 5.92 | 8.01 | 162.79 | 26.25 | 279.39 | 0.4457 | -1020.1 | -672.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | 8.28 | 161.00 | 24.46 | 280.53 | 0.4185 | -963.0 | -863.9 | |
| 0.00 | 2.90 | 0.00 | 1.55 | 8.67 | 158.15 | 21.60 | 282.63 | 0.3746 | 499.0 | 538.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 6.74 | 157.38 | 20.84 | 277.66 | 0.3580 | 770.0 | 607.5 | |
| 0.00 | 2.18 | 0.00 | 1.15 | 9.05 | 156.52 | 19.98 | 284.53 | 0.3500 | 982.0 | 843.7 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 8.82 | 156.21 | 19.67 | 284.04 | 0.3443 | 794.0 | 731.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 3.25 | 155.57 | 19.03 | 267.52 | 0.3272 | 758.0 | 670.7 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 5.78 | 155.52 | 18.97 | 275.30 | 0.3263 | 765.0 | 685.1 | |
| 0.00 | 3.27 | 0.00 | 1.71 | 6.12 | 155.37 | 18.82 | 276.38 | 0.3242 | 983.0 | 805.0 | |
| 0.00 | 0.82 | 0.00 | 0.43 | 5.82 | 155.32 | 18.78 | 275.45 | 0.3231 | 782.0 | 702.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 5.97 | 155.20 | 18.66 | 275.96 | 0.3213 | 798.0 | 686.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 12.34 | 155.07 | 18.52 | 294.86 | 0.3435 | 730.0 | 545.5 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 4.43 | 151.95 | 15.41 | 271.10 | 0.2661 | 820.0 | 624.6 | |
| 0.00 | 2.63 | 0.00 | 1.35 | 11.79 | 149.11 | 12.57 | 301.83 | 0.2518 | 744.0 | 640.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 2.20 | 147.25 | 10.71 | 259.26 | 0.1898 | 823.0 | 566.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
